Dormer UTD 0580639

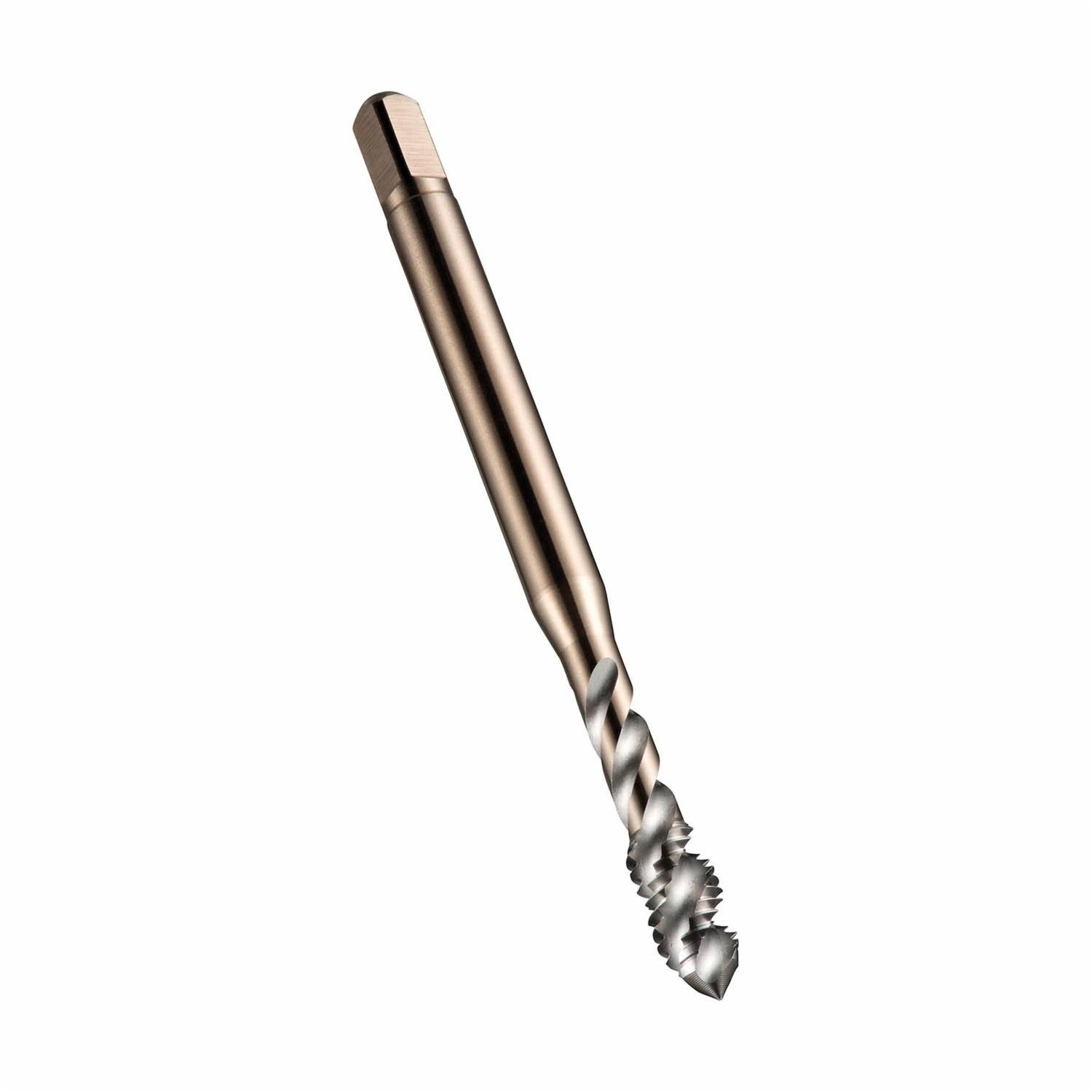

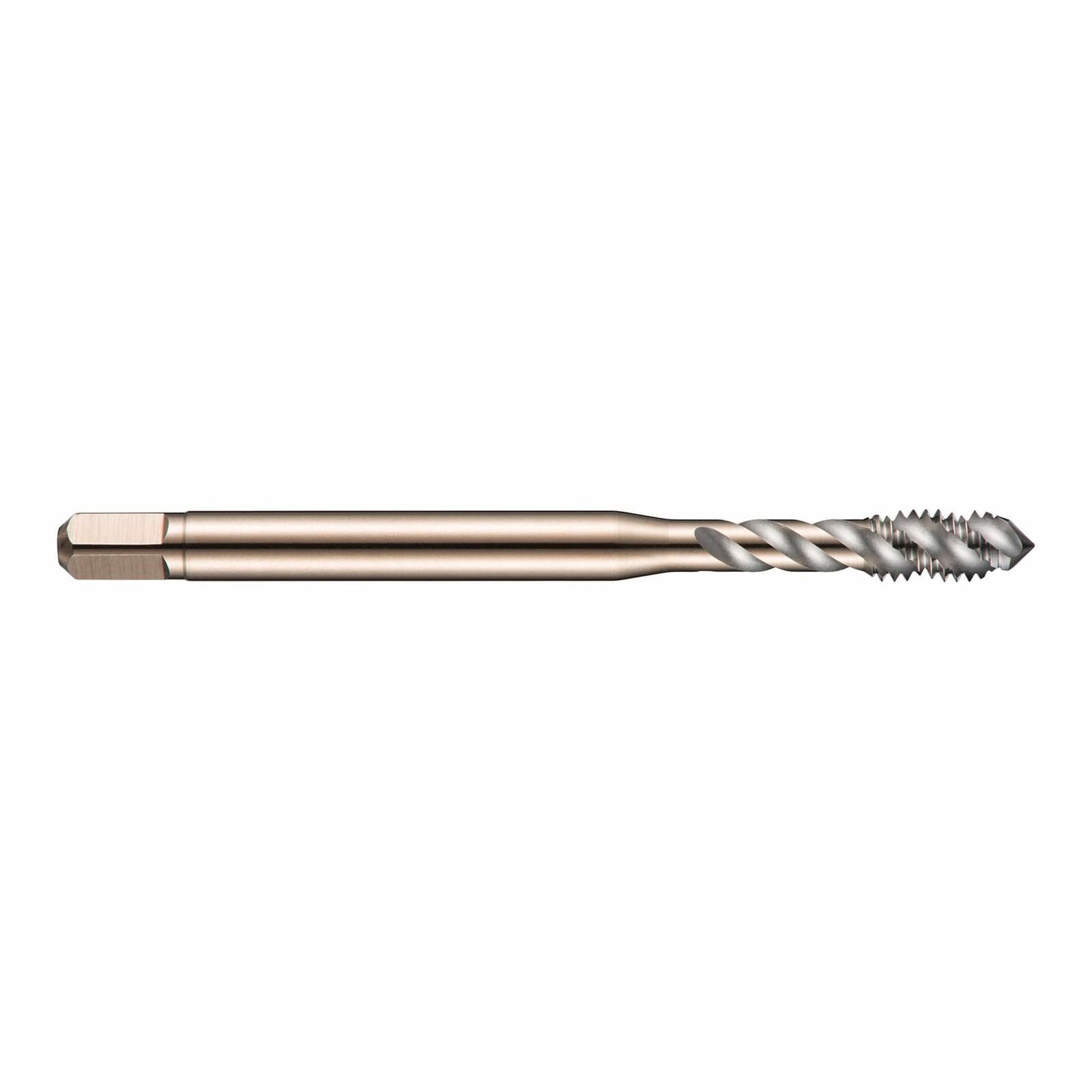

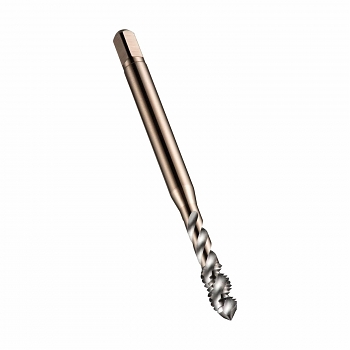

Dormer 5973811 E007 Spiral Flute Tap, Right Hand Cutting, M8x1.25 Thread, H6 Thread Limit, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Gold, HSS-XS1
Invoice description:
E007 Hss-xs1 Tap Spiral Flt Metric Coarse Go
Factory Order
Dormer Spiral Flute Tap, Series: E007, Measurement System: Metric, UNC, M8x1.25, Semi-Bottoming Chamfer, 3 Flutes, HSS-XS1, Gold, Class of Fit: 6H/D5, Right Hand Cutting, 0.456 in Thread Length, 2-23/32 in Overall Length, 0.318 in Shank Dia, Right Hand Flute Direction, H6 Thread Limit, Tough or Abrasive Materials Material Application, No Through Coolant (Yes/No)
Features
- Premium substrate for blind hole tapping in tough or abrasive materials
- Bronze oxide body and shank reduces rust and corrosion
- Reinforced shank
Specifications
ApplicationFor multi applications
Chamfer TypeSemi-Bottoming
Class of Fit6H/D5
Cutting DirectionRight Hand
Finish/CoatingGold
Flute DirectionRight Hand
MaterialHSS-XS1
Material ApplicationTough or Abrasive Materials
Measurement SystemMetric
Number of Flutes3
Overall Length2-23/32 in
SeriesE007
Shank Diameter0.318 in
Thread Length0.456 in
Thread LimitH6
Thread SizeM8x1.25
Thread StandardUNC
Through Coolant (Yes/No)No
Additional Information
Standards/ApprovalANSI Specified|CSA Approved
Country of OriginBR
