Dormer UTD 0568828

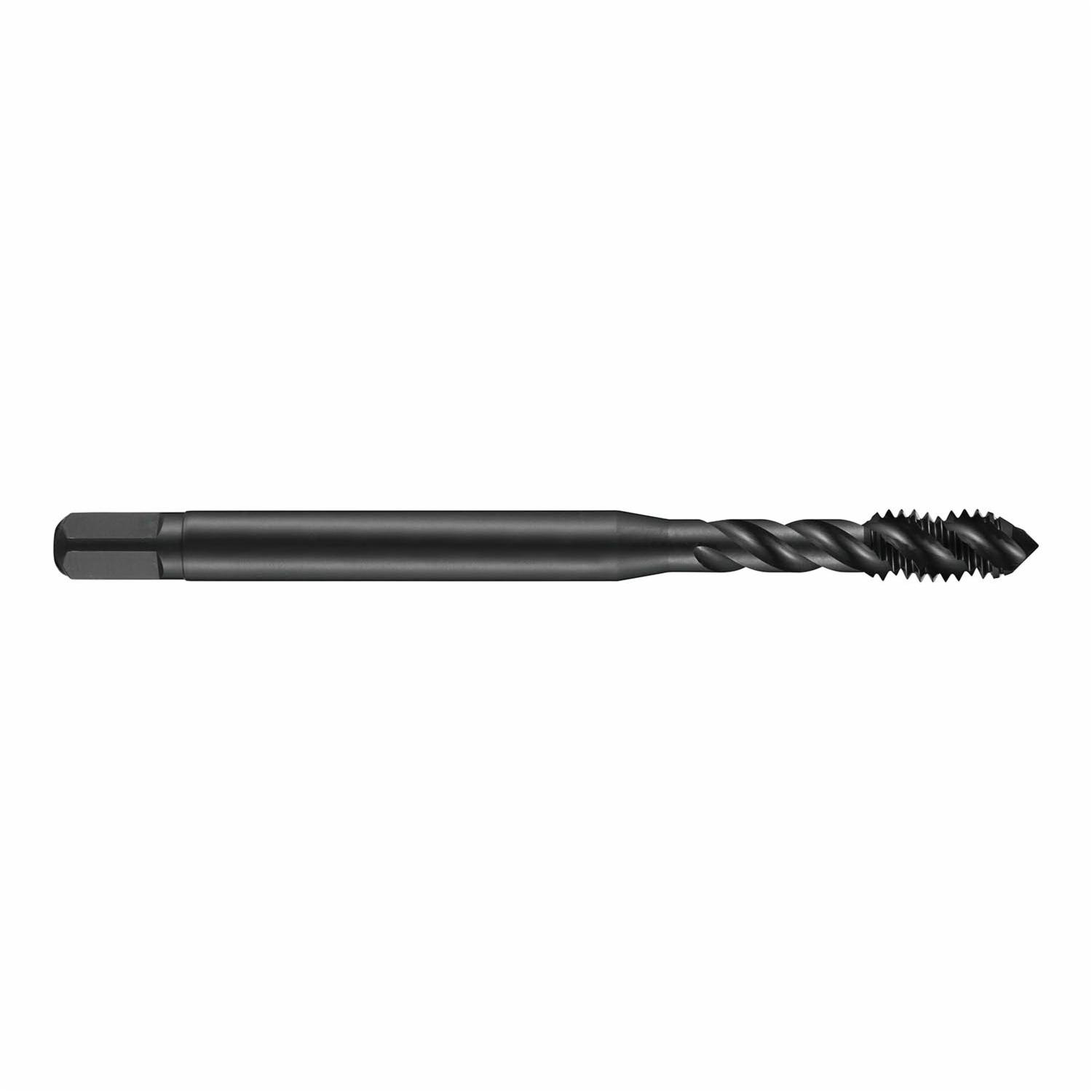

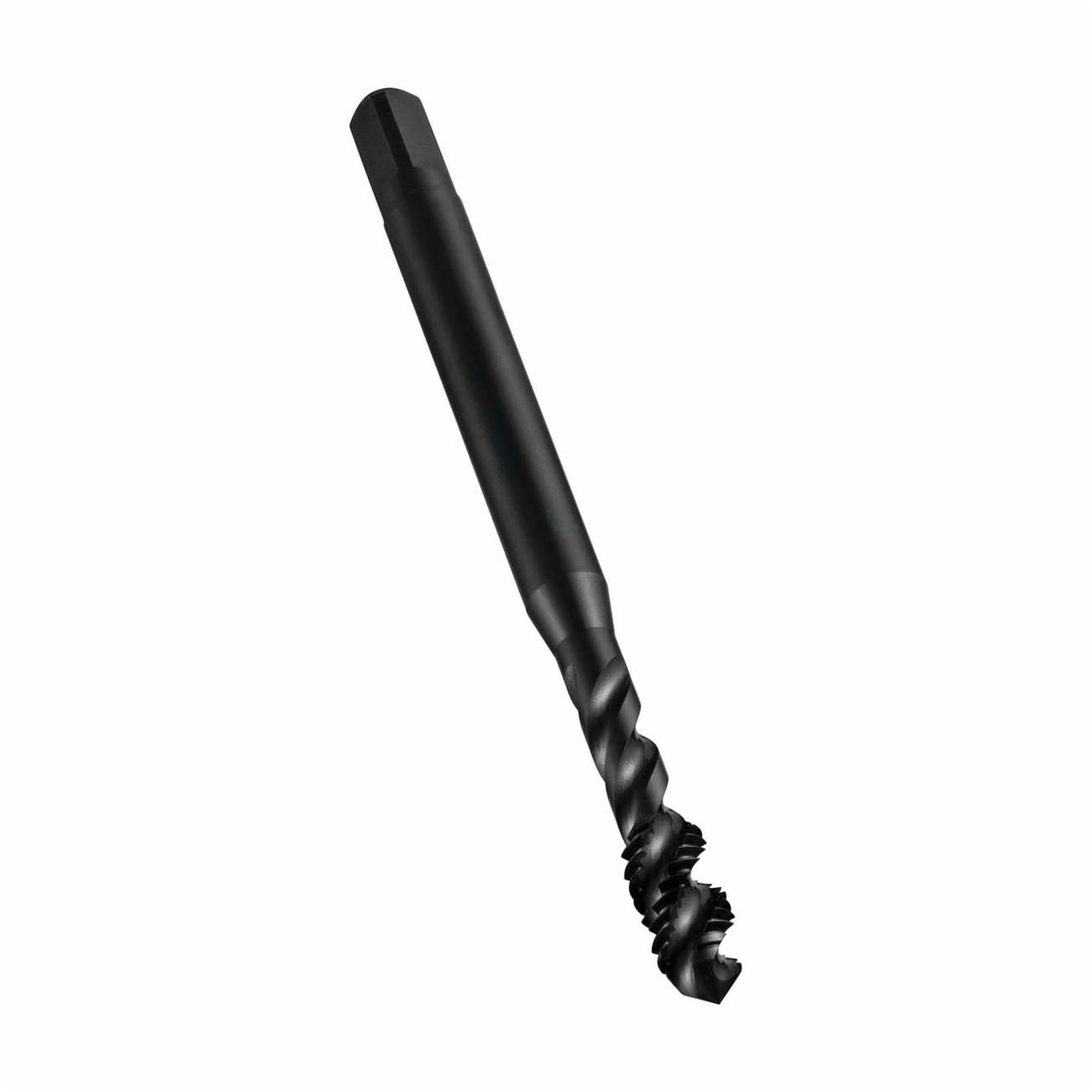

Dormer 5973536 E013 Dormer Spiral Flute Tap, Right Hand Cutting, M6x0.75 Thread, H6 Thread Limit, Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Steam Oxide, HSS-E
Factory Order
Dormer Dormer Spiral Flute Tap, Measurement System: Metric, UNF, M6x0.75, Bottoming Chamfer, 3 Flutes, HSS-E, Steam Oxide, Class of Fit: 6H/D5, Right Hand Cutting, 10 mm Thread Length, 66 mm Overall Length, 6.3 mm Shank Dia, Right Hand Flute Direction, H6 Thread Limit, Abrasive or Harder Ferrous Materials Material Application, No Through Coolant (Yes/No)
Features
- Premium substrate with steam oxide surface treatment reduces wear and prevents chip welding in abrasive or harder ferrous materials
- Reinforced shank
Specifications
Chamfer TypeBottoming
Class of Fit6H/D5
Cutting DirectionRight Hand
Finish/CoatingSteam Oxide
Flute DirectionRight Hand
MaterialHSS-E
Material ApplicationAbrasive or Harder Ferrous Materials
Measurement SystemMetric
Number of Flutes3
Overall Length66 mm
SeriesE013
Shank Diameter6.3 mm
Thread Length10 mm
Thread LimitH6
Thread SizeM6x0.75
Thread StandardUNF
Through Coolant (Yes/No)No
