Dormer UTD 0568033

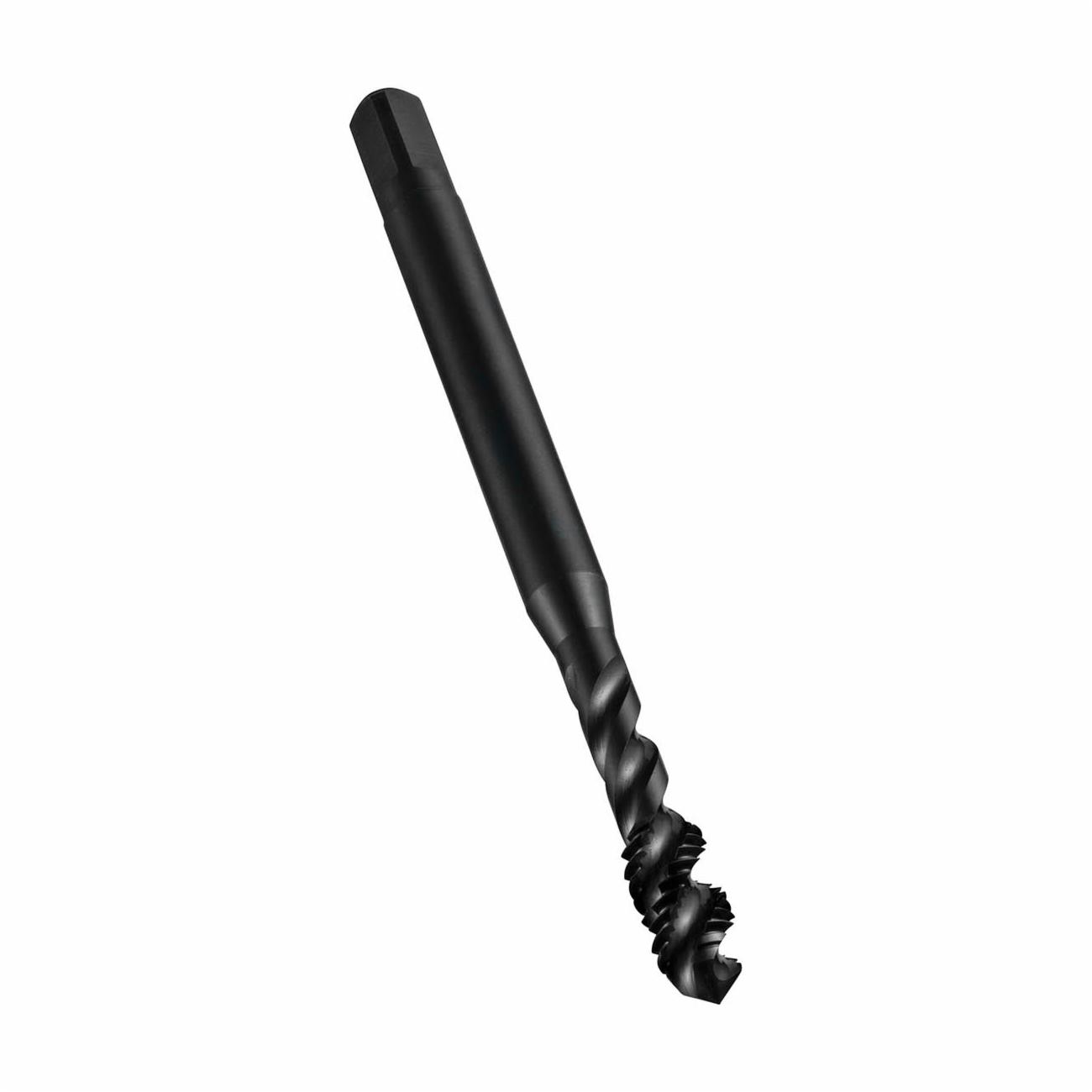

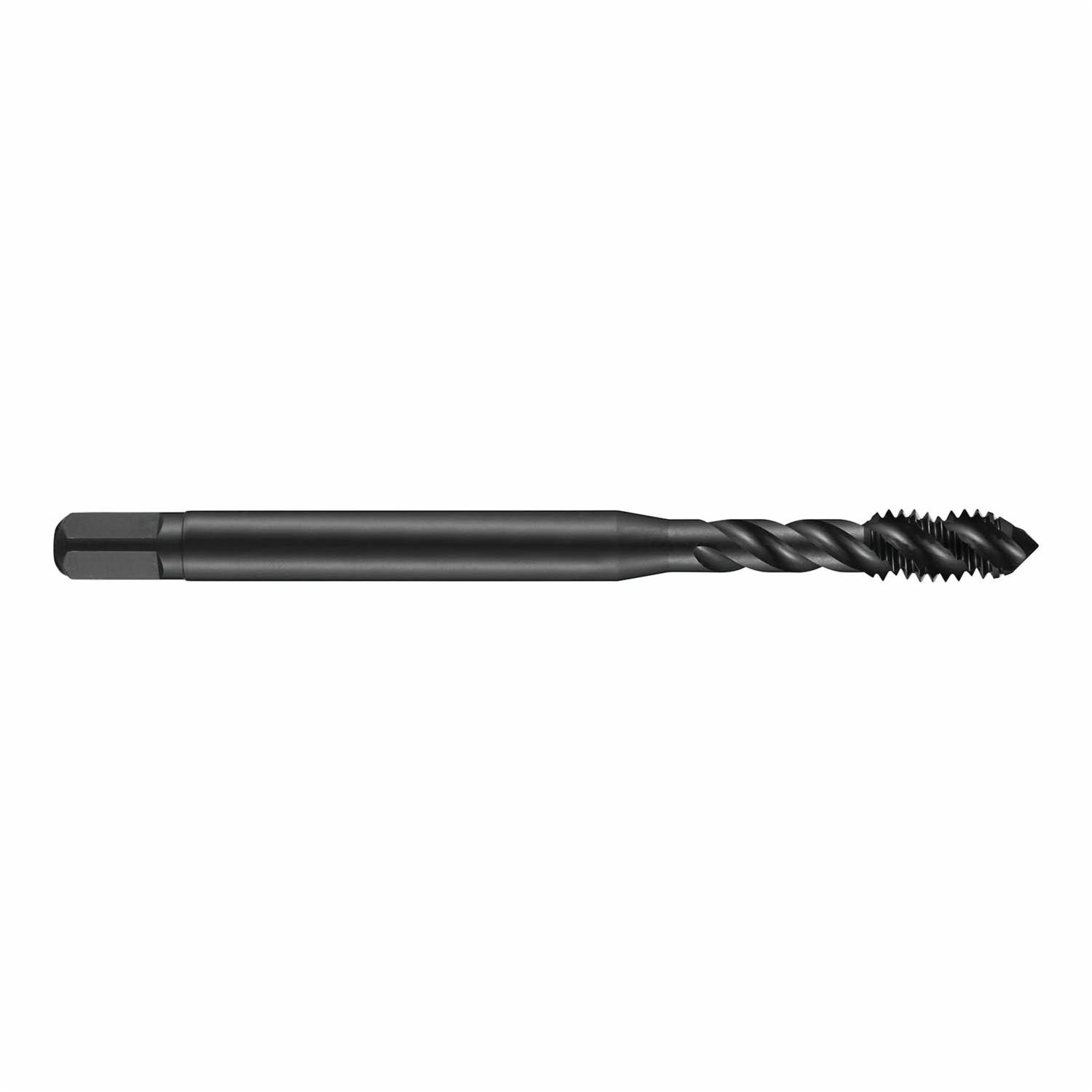

Dormer 5974394 E003 Spiral Flute Tap, Right Hand Cutting, M5x0.8 Thread, H6 Thread Limit, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Steam Oxide, HSS-XS1
Invoice description:
E003 Hss Mtt-x Taps Metr Ic Iso Sp. Fl. Blue
Factory Order
Dormer Spiral Flute Tap, Series: E003, Measurement System: Metric, UNC Thread Standard, M5x0.8 Thread, Semi-Bottoming Chamfer, 3 Flutes, HSS-XS1, Steam Oxide, Class of Fit: 6H/D4, Right Hand Cutting Direction, 8 mm Thread Length, 58 mm Overall Length, 5 mm Shank Diameter, Right Hand Flute Direction, H6 Thread Limit, Abrasive or Harder Ferrous Materials Material Application, No Through Coolant
Features
- Premium substrate with steam oxide surface treatment reduces wear and prevents chip welding in abrasive or harder ferrous materials
- Reinforced shank
- C2-3 chamfer form
Specifications
ApplicationFor multi applications
Chamfer TypeSemi-Bottoming
Class of Fit6H/D4
Cutting DirectionRight Hand
Finish/CoatingSteam Oxide
Flute DirectionRight Hand
MaterialHSS-XS1
Material ApplicationAbrasive or Harder Ferrous Materials
Measurement SystemMetric
Number of Flutes3
Overall Length58 mm
SeriesE003
Shank Diameter5 mm
Thread Length8 mm
Thread LimitH6
Thread SizeM5x0.8
Thread StandardUNC
Through Coolant (Yes/No)No
Additional Information
Standards/ApprovalISO 529
Country of OriginIN
