Dormer UTD 0567944

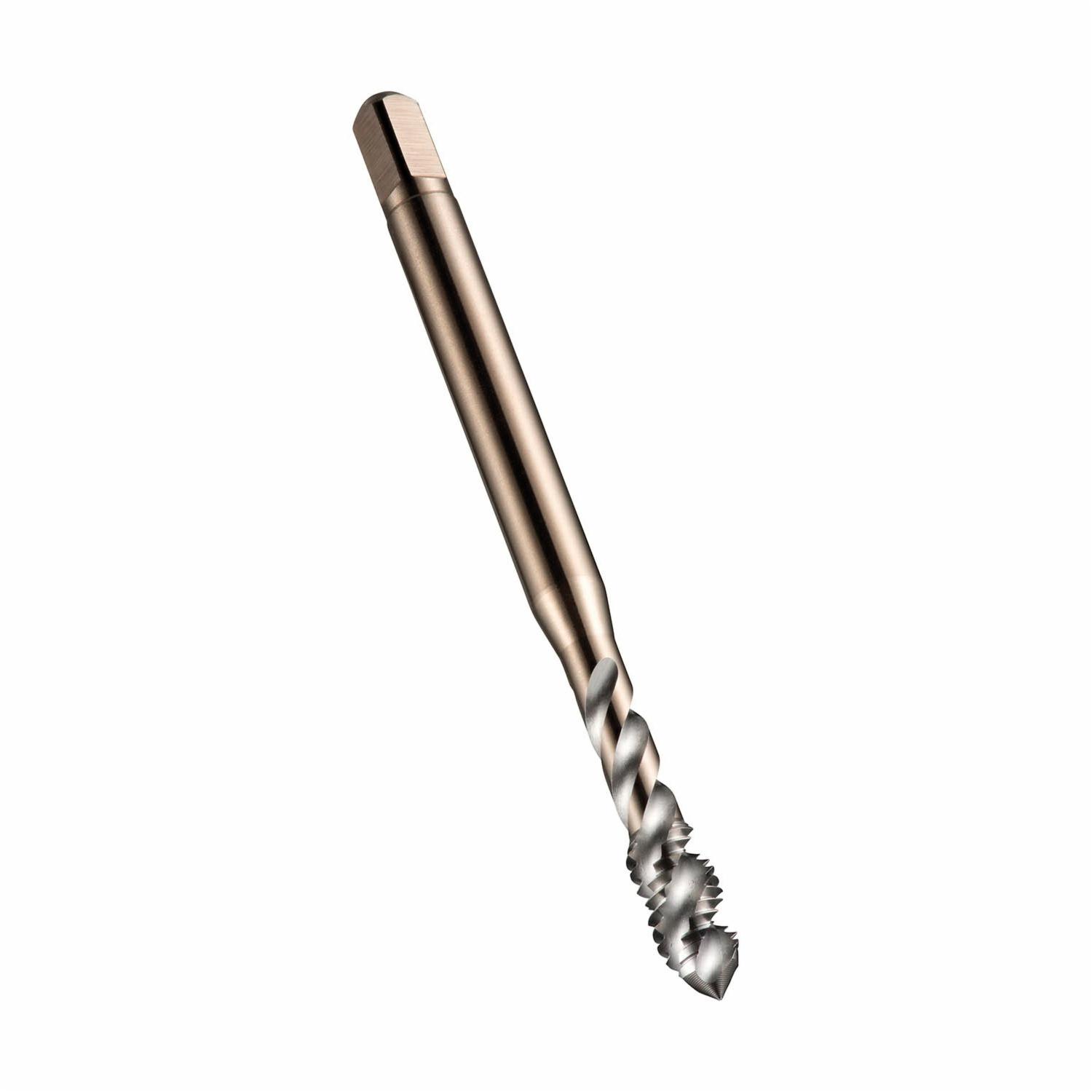

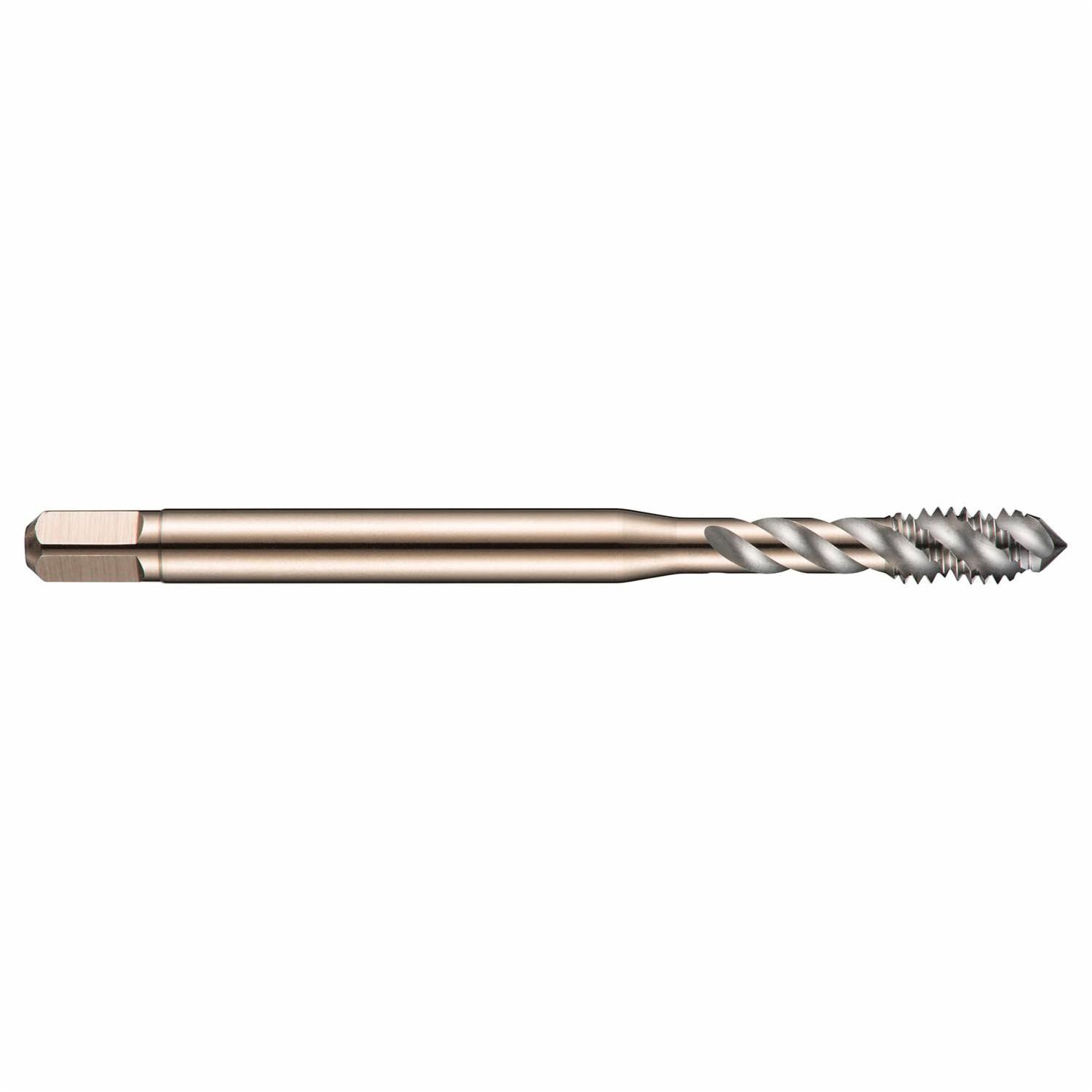

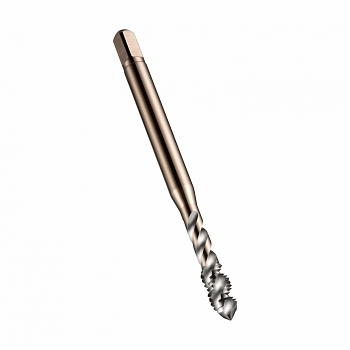

Dormer 5974304 E002 Dormer Spiral Flute Tap, Right Hand Cutting, M14x2 Thread, H6 Thread Limit, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Gold, HSS-E
Invoice description:
E002 Hss Mtt-x Taps Metr Ic Iso Sp. Fl Gold E
Factory Order
Dormer Dormer Spiral Flute Tap, Series: VDS201A, Measurement System: Metric, UNC, M14x2, Semi-Bottoming Chamfer, 3 Flutes, HSS-E, Gold, Class of Fit: 6H/D7, Right Hand Cutting, 18 mm Thread Length, 95 mm Overall Length, 11.2 mm Shank Dia, Right Hand Flute Direction, H6 Thread Limit, Tough or Abrasive Materials Material Application, No Through Coolant (Yes/No)
Features
- Premium substrate for blind hole tapping in tough or abrasive materials
- Bronze oxide body and shank reduces rust and corrosion
- Reduced shank
Specifications
ApplicationFor multi applications
Chamfer TypeSemi-Bottoming
Class of Fit6H/D7
Cutting DirectionRight Hand
Finish/CoatingGold
Flute DirectionRight Hand
MaterialHSS-E
Material ApplicationTough or Abrasive Materials
Measurement SystemMetric
Number of Flutes3
Overall Length95 mm
SeriesE002
Shank Diameter11.2 mm
Thread Length18 mm
Thread LimitH6
Thread SizeM14x2
Thread StandardUNC
Through Coolant (Yes/No)No
Additional Information
Standards/ApprovalISO 529
Country of OriginIN
