Precision Twist Drill UTD 056320

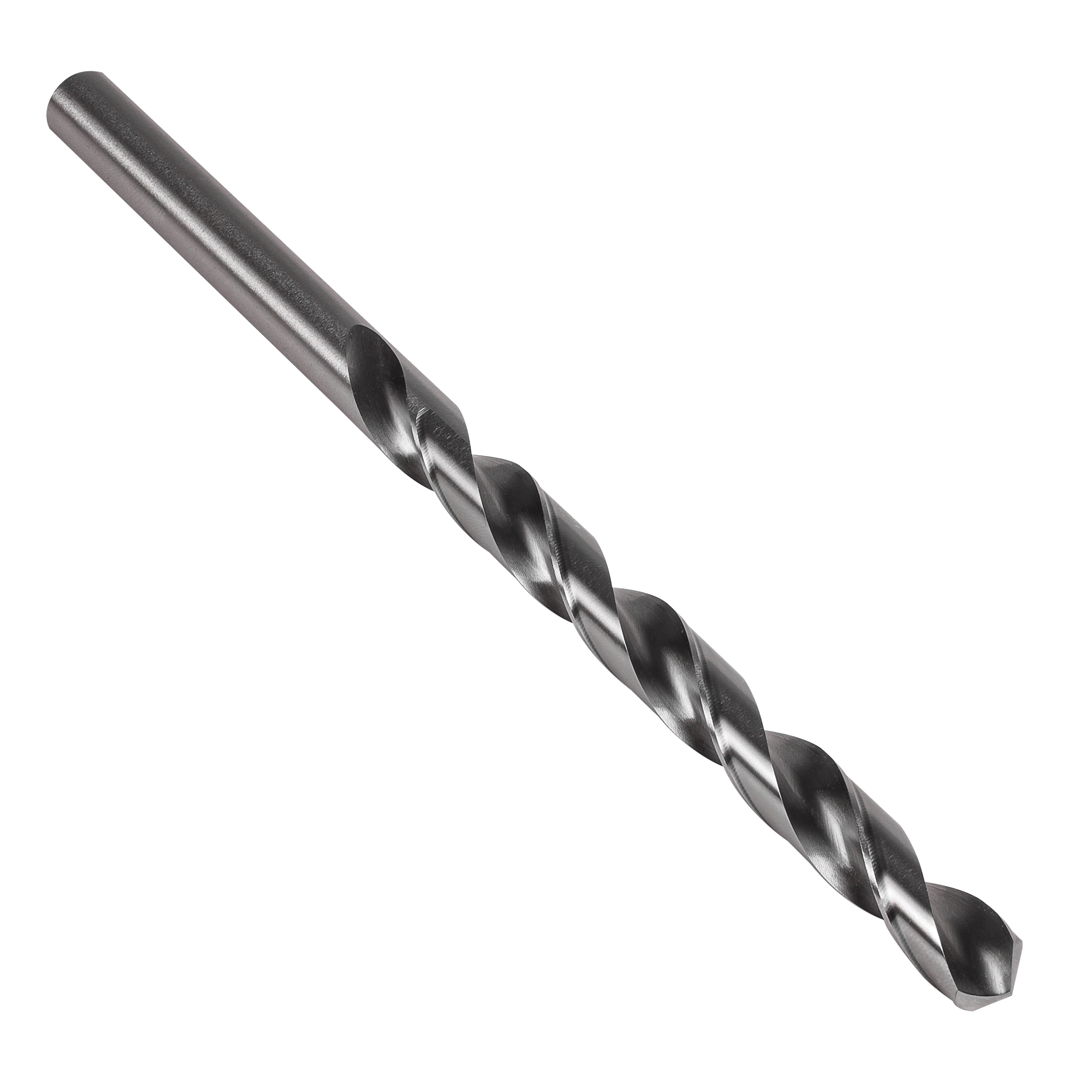

Precision Twist Drill 6000926 5ATL Type N General Purpose Precision Twist Drill Taper Length Drill, 0.126 in Drill - Decimal Inch, 106 mm OAL, HSS, Bright
Invoice description:
Ptd Tl Din 118pt Hss Brt Utd 056320
Factory Order
Precision Twist Drill Precision Twist Drill Taper Length Drill, Type N General Purpose, 0.126 in Drill Size - Decimal Inch, 106 mm Overall Length, 6XD Cutting Depth, 2 Flutes, Spiral Flute, 69 mm Flute Length, 0.126 in Shank, Straight Shank, 118 deg Point, Conventional Point, Right Hand Cutting, HSS Cutting Edge, HSS, Bright, Applicable Materials: Magnetic Soft Steel, Structural Steel, Carburizing Steel, Plain Carbon Steel, Nodular Graphite, Malleable Cast Iron, Reinforced Plastic Materials and Copper
Features
- High speed steel (HSS) provides good wear resistance
- Bright provides a smooth, polished finish on the tool
- It increases chip flow in softer materials such as aluminum, wood and plastic
- Spiral flutes are constructed with a higher flute angle to remove chips more easily
- Web thinned
- Tapered web configuration
- No coolant channel
Specifications
ApplicationFor general drilling applications
Applicable MaterialsMagnetic Soft Steel, Structural Steel, Carburizing Steel, Plain Carbon Steel, Nodular Graphite, Malleable Cast Iron, Reinforced Plastic Materials and Copper
Cutting Depth6XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Size - Decimal Inch0.126 in
FinishBright
Flute Length69 mm
Flute TypeSpiral
MaterialHSS
Number of Flutes2
Overall Length106 mm
Point Angle118 deg
Point TypeConventional
Series5ATL
Shank Size0.126 in
Shank TypeStraight
TypeType N General Purpose
Additional Information
Standards/ApprovalDIN 340
Country of OriginBR
