GARR GARR 22461

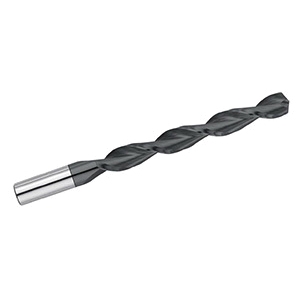

GARR 22461 1800H Specialty Drill, 5 mm Drill - Metric, 0.1969 in Drill - Decimal Inch, 100 mm OAL, Submicron Grain Solid Carbide, Balinit Hardlube Coated
Invoice description:
Drill Prab 5mm (0.1969) Crb 8xd 135 Hrdlb
Factory Order
GARR Specialty Drill, Series: 1800H, 5 mm Drill - Metric, 0.1969 in Drill - Decimal Inch, 100 mm Overall Length, 8XD Cutting Depth, 2 Flutes, 35 deg Spiral/Parabolic Flute, 62 mm Flute Length, 5 mm Shank, 135 deg Point, 4-Facet Point, Right Hand Cutting Direction, Submicron Grain Solid Carbide Cutting Edge, Submicron Grain Solid Carbide, Balinit Hardlube Coated, Applicable Materials: Aluminum, Brass and Bronze
Features
- Wide open flutes and high helix remove chips quickly
- 35 deg helix angle
- Live tooling recommended on lathe processes
Specifications
ApplicationGeneral Purpose
Applicable MaterialsAluminum, Brass and Bronze
Cutting Depth8XD
Cutting DirectionRight Hand
Cutting Edge MaterialSubmicron Grain Solid Carbide
Drill Size - Decimal Inch0.1969 in
Drill Size - Metric5 mm
FinishBalinit Hardlube Coated
Flute Length62 mm
Flute Type35 deg Spiral/Parabolic
MaterialSubmicron Grain Solid Carbide
Number of Flutes2
Overall Length100 mm
Point Angle135 deg
Point Type4-Facet
Series1800H
Shank Size5 mm
Additional Information
Country of OriginUS
