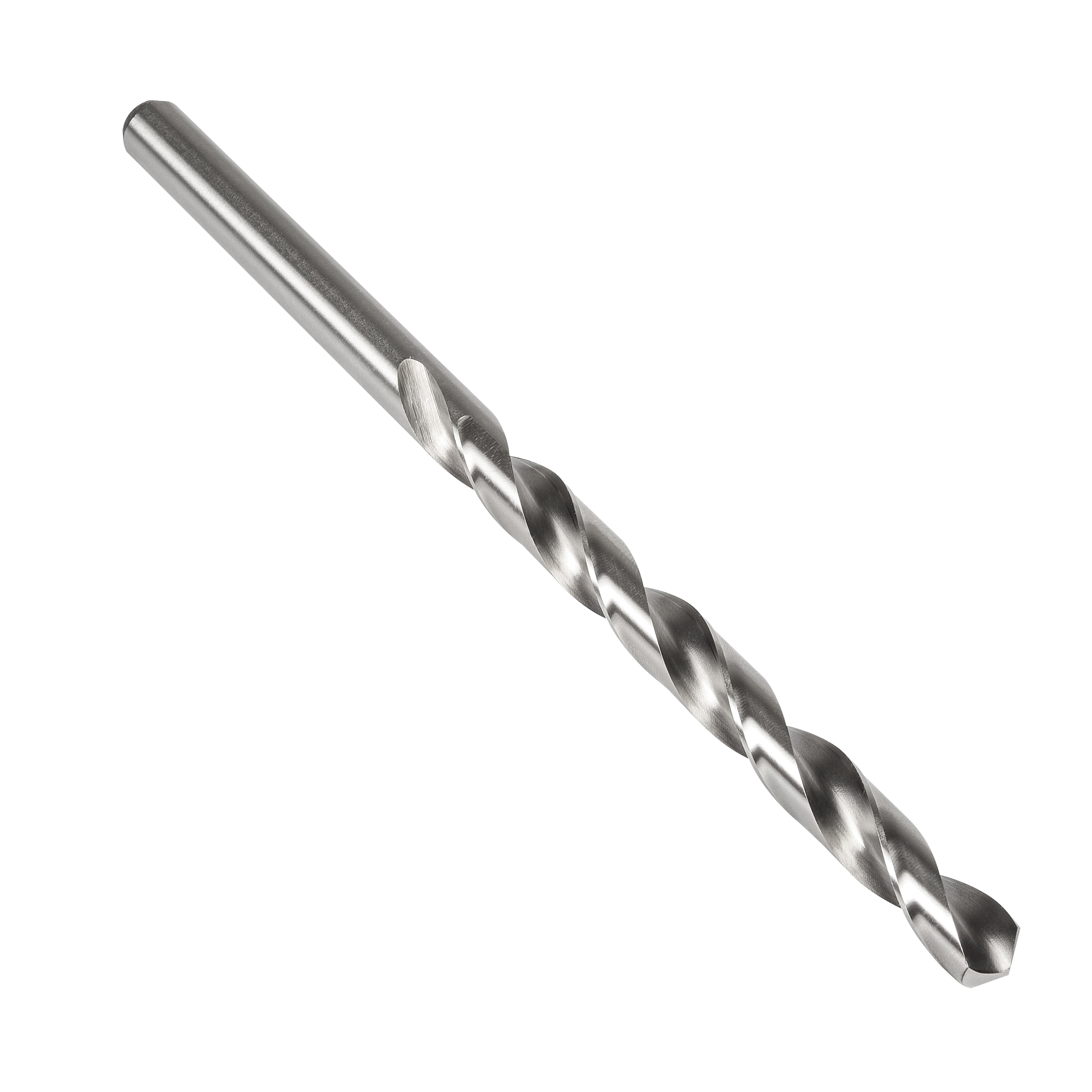

Precision Twist Drill UTD 052048

Precision Twist Drill Precision Twist Drill Taper Length Drill, General Purpose, Series: DEWCSK, #48 Drill Size - Wire, 0.076 in Drill Size - Decimal Inch, 3-3/4 in Overall Length, 6XD Cutting Depth, 2 Flutes, Spiral Flute, 2 in Flute Length, 0.076 in Shank, Straight Shank, 118 deg Point, Conventional Point, Right Hand Cutting, HSS Cutting Edge, HSS, Bright, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened Tempered Steel, Free Machining Stainless Steel, Ferritic + Austenitic, Graphite/Malleable Cast Iron, Titanium, Nickel, Copper, Brass, Bronze

• Features

• High speed steel provides good wear resistance and can be used in general purpose applications for both ferrous and non-ferrous materials
• Bright provides a smooth, polished finish on the tool
• Designed for drilling holes deeper than possible with standard jobbers length drills
• It increases chip flow in softer materials such as aluminum, wood and plastic
• Spiral flutes are constructed with a higher flute angle to remove chips more easily
• Non-coolant through
• Web-thinned
• Tapered web configuration
• No coolant channel
