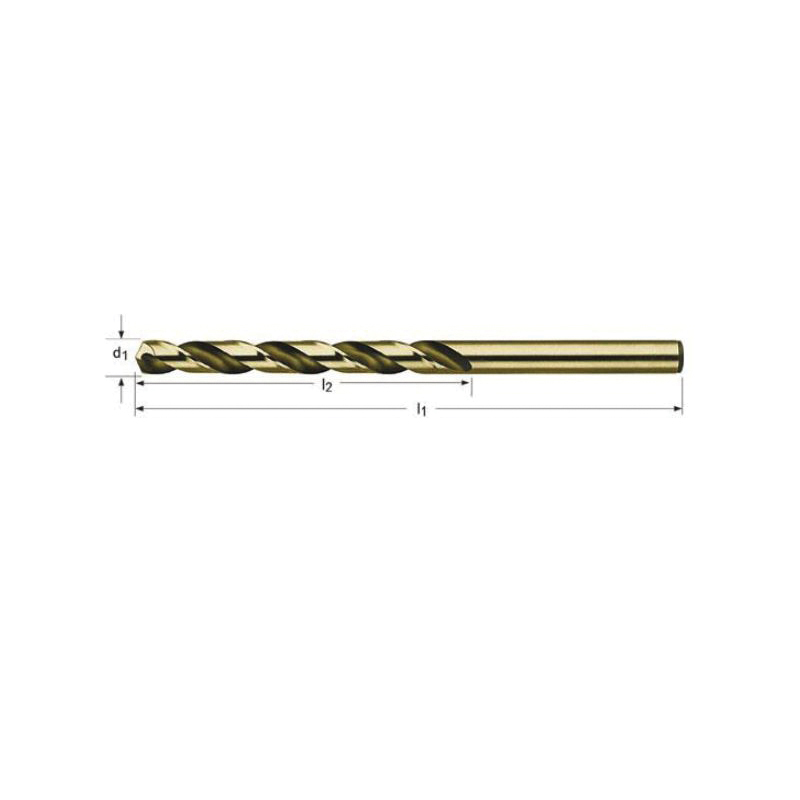

Precision Twist Drill UTD 051313

Precision Twist Drill 5996596 M51CO Heavy Duty Taper Length Drill, 13/64 in Drill - Fraction, 0.2031 in Drill - Decimal Inch, 6 in OAL, HSS-E, Bronze Oxide

UPC: 086071513137
UNSPSC: 23241606
Manufacturer PN: 5996596
$15.50 EA
Factory Order
QTY:


Precision Twist Drill Taper Length Drill, Heavy Duty, Series: M51CO, 13/64 in Drill - Fraction, 0.2031 in Drill - Decimal Inch, 6 in Overall Length, 6XD Cutting Depth, 3-5/8 in Flute Length, 13/64 in Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS-E Cutting Edge, HSS-E, Bronze Oxide

  • Features

  • Low thrust design heavy duty self-centering split point for easier penetration
  • Cobalt base material with bronze oxide for wear resistance and lubricity
  • No coolant channel

Specifications

ApplicationGeneral Drilling Applications
Cutting Depth6XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS-E
Drill Size - Decimal Inch0.2031 in
Drill Size - Fraction13/64 in
FinishBronze Oxide
Flute Length3-5/8 in
MaterialHSS-E
Overall Length6 in
Point Angle135 deg
Point TypeSplit/Self-Centering
SeriesM51CO
Shank Size13/64 in
Shank TypeStraight
TypeHeavy Duty
