Dormer UTD 0355213

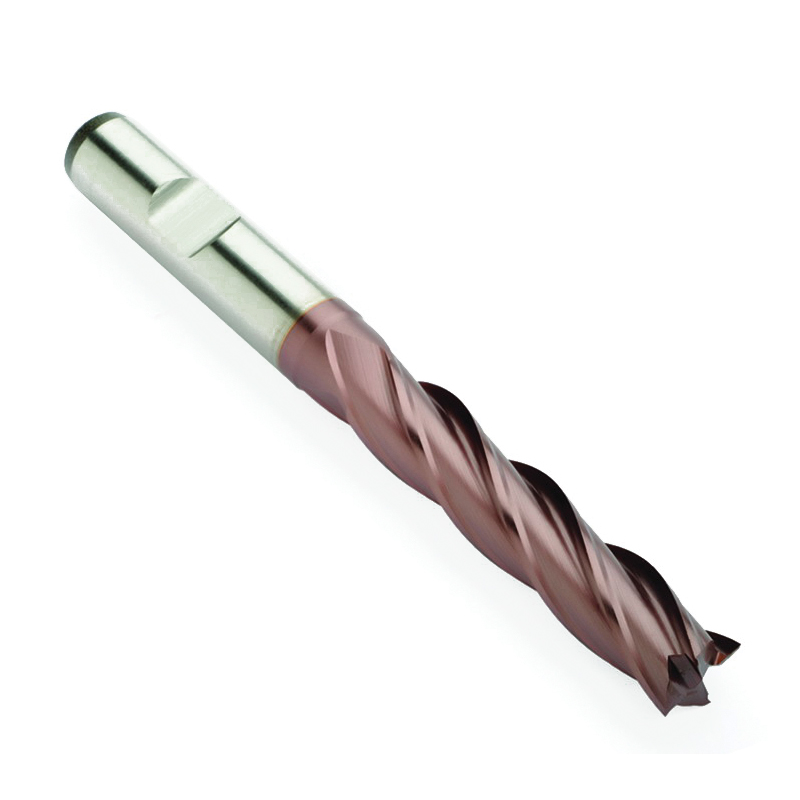

Dormer 5983842 C295 Center Cutting Extra Long Length Regular Helix Single End End Mill, 25 mm Dia Cutter, 90 mm Length of Cut, 5 Flutes, 25 mm Dia Shank, 166 mm OAL, TiCN Coated

Invoice description: Hsco-xp Super G End Mill Mult-flt Cc Long

UNSPSC: 23242511

Manufacturer PN: 5983842

^$303.12 EA

Factory Order

enlarge

Product Overview

Dormer End Mill, Center Cutting Extra Long Length Regular Helix Single End, Series: C295, 25 mm Diameter Cutter, 166 mm Overall Length, 90 mm Length of Cut, 5 Flutes, Spiral Flute, 25 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, HSS-E, TiCN Coated

Features
Powdered metal (PM) is tougher and more cost effective than solid carbide
It is commonly used on highly abrasive materials including high silicon aluminums
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN, it is commonly used on stainless steels, cast iron and aluminum alloys
12 deg rake angle
+0.058/0.000, K10 tolerance
For use with steel <850 N/mmsq., cast iron, titanium and nickel alloys <900 N/mmsq. and copper alloys

Specifications

ApplicationFor slotting, ramping, diving and finishing operations

Cutter Diameter25 mm

Cutting DirectionRight Hand

FinishTiCN Coated

Flute TypeSpiral

Helix Angle30 deg

Length of Cut90 mm

MaterialHSS-E

Number of Flutes5

Overall Length166 mm

SeriesC295

Shank Diameter25 mm

Shank TypeWeldon Flat

TypeCenter Cutting Extra Long Length Regular Helix Single End

Additional Information

Standards/ApprovalDIN 1835B|DIN 844L|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Country of OriginPL
