Dormer UTD 0128688

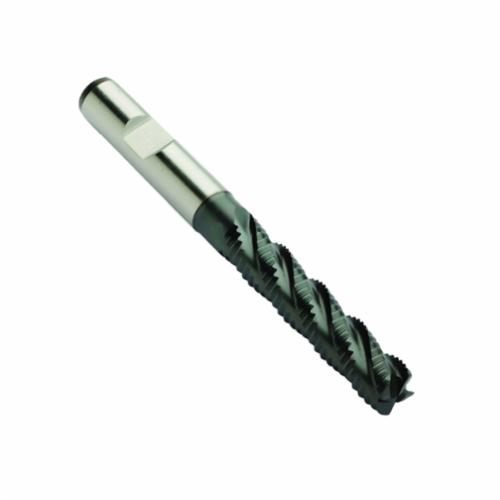

Dormer 5985207 C948 Type NRA Long Length Roughing End Mill, 30 mm Dia Cutter, 90 mm Length of Cut, 6 Flutes, 25 mm Dia Shank, 166 mm OAL, AlCrN Coated

UNSPSC: 23242511
Manufacturer PN: 5985207
$616.36 EA
Factory Order
QTY:


Dormer Roughing End Mill, Type NRA Long Length, Series: C948, 30 mm Diameter Cutter, 166 mm Overall Length, 90 mm Length of Cut, 6 Flutes, 25 mm Shank Diameter, 35 deg Helix Angle, HSS-E, AlCrN Coated

  • Features

  • 20 Lifecycle
  • Applicable materials are cast iron, copper, alloy steel and titanium
  • 12 deg of rake
  • K12 mill dia tolerance
  • 24.5 mm neck diameter
  • 109.5 mm Neck length

Specifications

ApplicationFor Shank Cutter Roughing, Slotting, Ramping, Diving
Cutter Diameter30 mm
FinishAlCrN Coated
Helix Angle35 deg
Length of Cut90 mm
MaterialHSS-E
Number of Flutes6
Overall Length166 mm
SeriesC948
Shank Diameter25 mm
TypeType NRA Long Length
