Dormer UTD 0354919

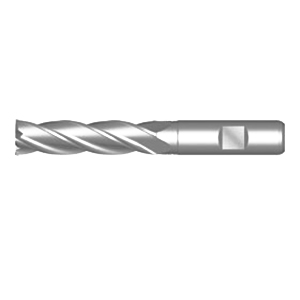

Dormer 5984603 C273 Type N Long Length End Mill, 13 mm Dia Cutter, 53 mm Length of Cut, 4 Flutes, 12 mm Dia Shank, 110 mm OAL, Bright
Factory Order
Dormer End Mill, Type N Long Length, Series: C273, 13 mm Diameter Cutter, 110 mm Overall Length, 53 mm Length of Cut, 4 Flutes, Spiral Flute, 12 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, HSS-E, Bright
Features
- Powdered metal (PM) is tougher and more cost effective than solid carbide
- It is commonly used on highly abrasive materials including high silicon aluminums
- Uncoated tools do not feature supportive treatments on the cutting edge
- They are used at reduced speeds for general applications on nonferrous metals
- 64.5 mm neck length
- 11.5 mm neck diameter
Specifications
ApplicationFor finishing, slotting, ramping and diving
Cutter Diameter13 mm
Cutting DirectionRight Hand
FinishBright
Flute TypeSpiral
Helix Angle30 deg
Length of Cut53 mm
MaterialHSS-E
Number of Flutes4
Overall Length110 mm
SeriesC273
Shank Diameter12 mm
Shank TypeWeldon Flat
TypeType N Long Length
