Union Butterfield UTD 5270016

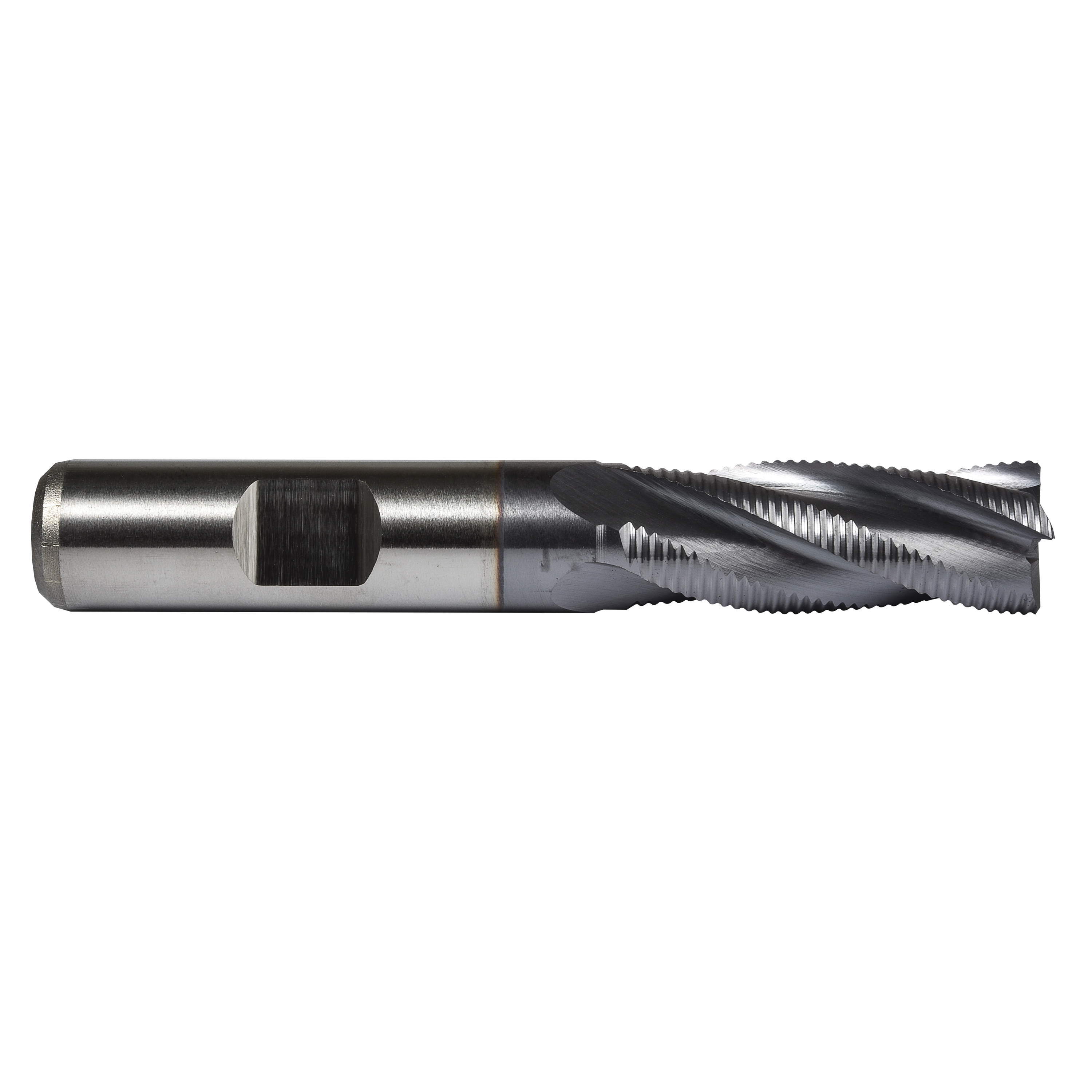

Union Butterfield 5270016 TC9002 Center Cutting Regular Length Single End Square End End Mill, 3/8 in Dia Cutter, 3/4 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 2-1/2 in OAL, TiCN Coated
Invoice description:
End Mill 3/8 X 3/8 X 3/4 X 2-1/2 4fl Cobalt 5270016
In stock
(2)
Union Butterfield End Mill, Center Cutting Regular Length Single End Square End, Series: TC9002, 3/8 in Diameter Cutter, 2-1/2 in Overall Length, 3/4 in Length of Cut, 4 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, HSS-E, TiCN Coated
Features
- Roughing end mills have chip-breaking cutting edges that remove material in less time than conventional end mills
- Number of flutes varies; fewer flutes have more chip-carrying capacity and more flutes produce a finer finish
- Titanium carbon nitride (TiCN) coating lubricates the end mill for high-temperature stability and offer better abrasion resistance than TiN coating
- Cobalt steel resists abrasion and high cutting temperatures and has higher feed rates than high-speed steel
- Square nose end mills create sharp, unrounded cuts
- For use with aluminum/aluminum alloys, cast iron, nickel/nickel alloys, plastics, steel/steel alloys, titanium/titanium alloys
- External coolant
Specifications
ApplicationFor slot milling, ramping and finishing operations
Cutter Diameter3/8 in
Cutting DirectionRight Hand
FinishTiCN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut3/4 in
MaterialHSS-E
Number of Flutes4
Overall Length2-1/2 in
SeriesTC9002
Shank Diameter3/8 in
Shank TypeWeldon Flat
TypeCenter Cutting Regular Length Single End Square End
Additional Information
Standards/ApprovalANSI B94.9|CSA Approved
