Dormer UTD 0354469

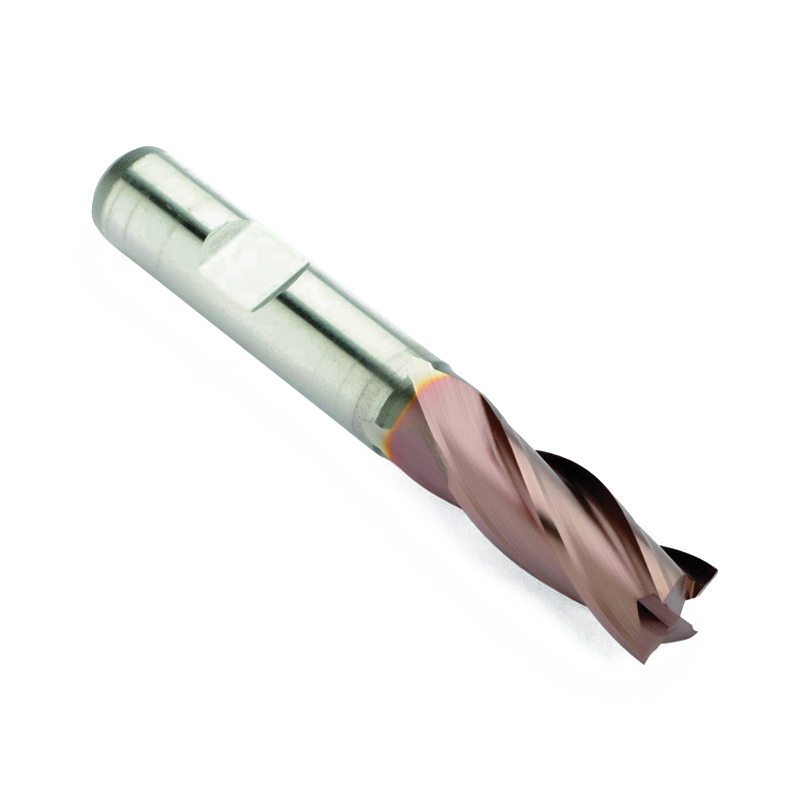

Dormer 5984152 C246 Center Cutting Regular Length Square End End Mill, 10 mm Dia Cutter, 22 mm Length of Cut, 4 Flutes, 10 mm Dia Shank, 72 mm OAL, TiCN Coated
Factory Order
Dormer End Mill, Center Cutting Regular Length Square End, Series: C246, 10 mm Diameter Cutter, 72 mm Overall Length, 22 mm Length of Cut, 4 Flutes, 10 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, HSS-E, TiCN Coated
Features
- Powdered metal (PM) is tougher and more cost effective than solid carbide
- It is commonly used on highly abrasive materials including high silicon aluminums
- Titanium carbonitride (TiCN) is harder and more wear resistant than TiN
- It is commonly used on stainless steels, cast iron and aluminum alloys
Specifications
ApplicationFor slotting, ramping, diving and roughing operations
Cutter Diameter10 mm
Cutting DirectionRight Hand
FinishTiCN Coated
Helix Angle30 deg
Length of Cut22 mm
MaterialHSS-E
Number of Flutes4
Overall Length72 mm
SeriesC246
Shank Diameter10 mm
Shank TypeWeldon Flat
TypeCenter Cutting Regular Length Square End
