Dormer UTD 0353936

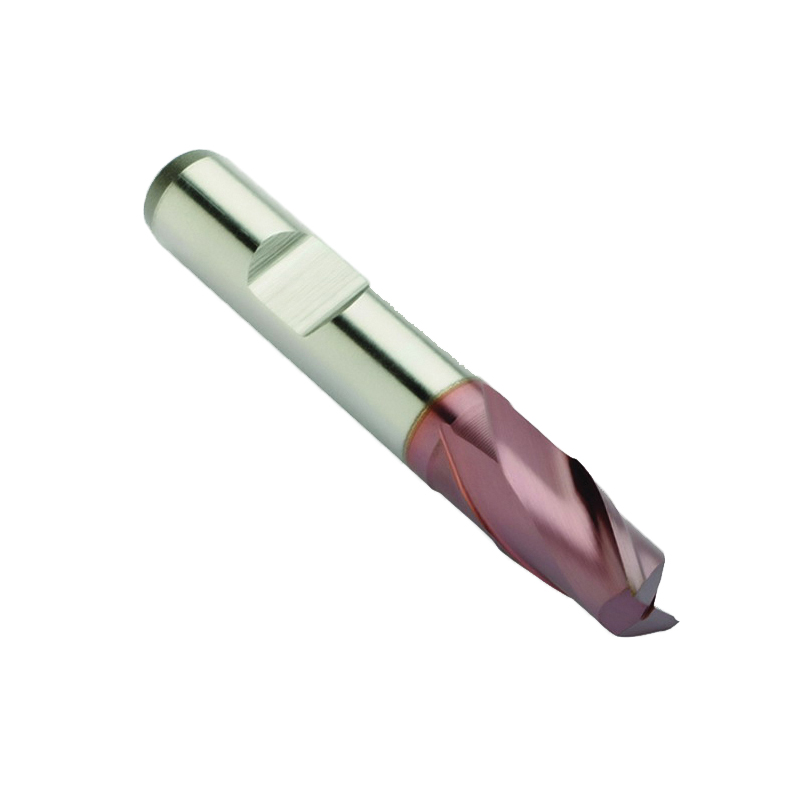

Dormer 5983823 C126 Center Cutting Regular Helix Single End End Mill, 11 mm Dia Cutter, 13 mm Length of Cut, 2 Flutes, 12 mm Dia Shank, 70 mm OAL, TiCN Coated
Factory Order
Dormer End Mill, Center Cutting Regular Helix Single End, Series: C126, 11 mm Diameter Cutter, 70 mm Overall Length, 13 mm Length of Cut, 2 Flutes, Spiral Flute, 12 mm Shank Diameter, 30 deg Helix Angle, Weldon Flat Shank, HSS-E, TiCN Coated
Features
- 12 deg rake angle
- Powdered metal (PM) is tougher and more cost effective than solid carbide
- It is commonly used on highly abrasive materials including high silicon aluminums
- Titanium carbonitride (TiCN) is harder and more wear resistant than TiN
- It is commonly used on stainless steels, cast iron and aluminum alloys
- E8, P9 tolerance
Specifications
ApplicationFor slotting, ramping and diving operations
Cutter Diameter11 mm
FinishTiCN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut13 mm
MaterialHSS-E
Number of Flutes2
Overall Length70 mm
SeriesC126
Shank Diameter12 mm
Shank TypeWeldon Flat
TypeCenter Cutting Regular Helix Single End
