Dormer UTD 0259719

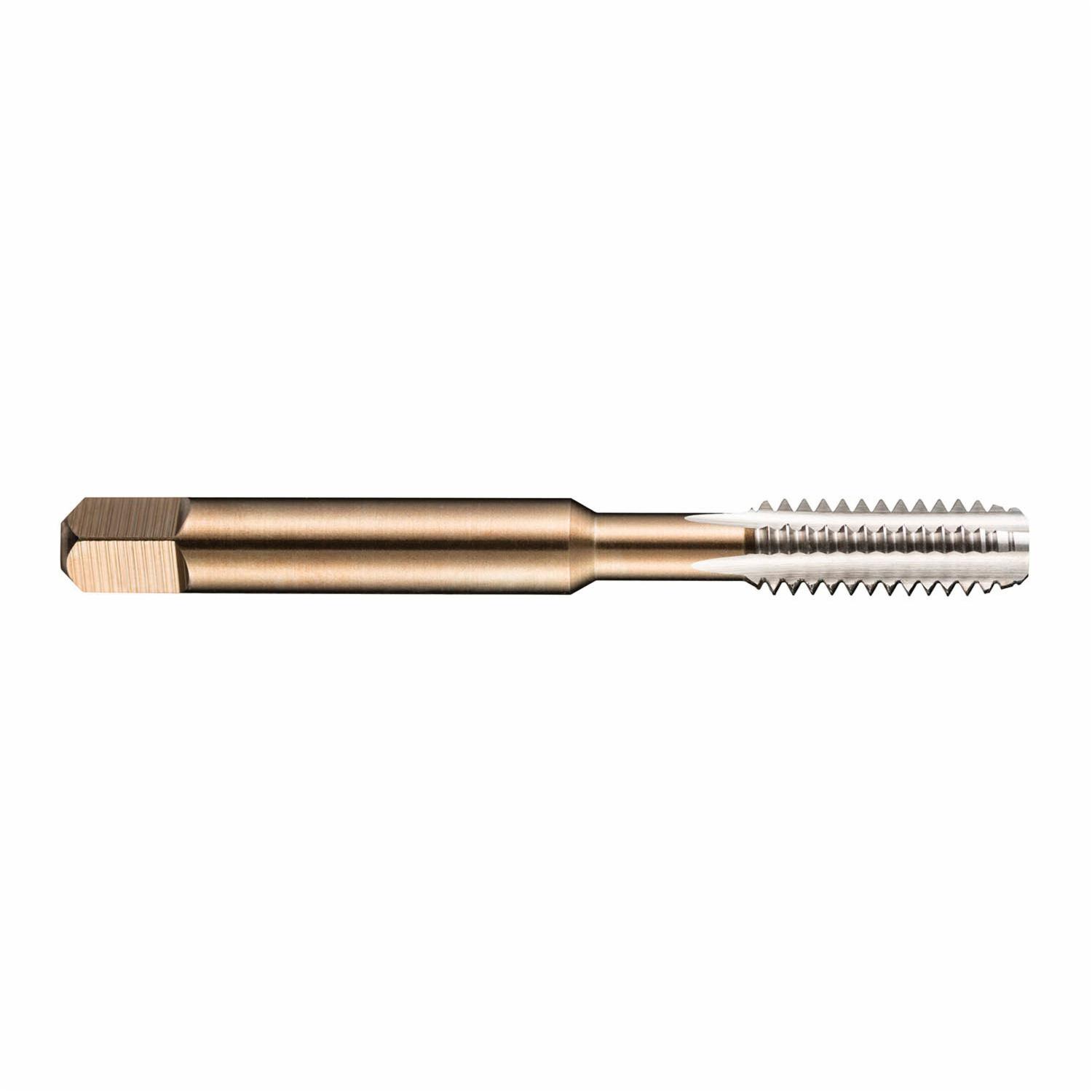

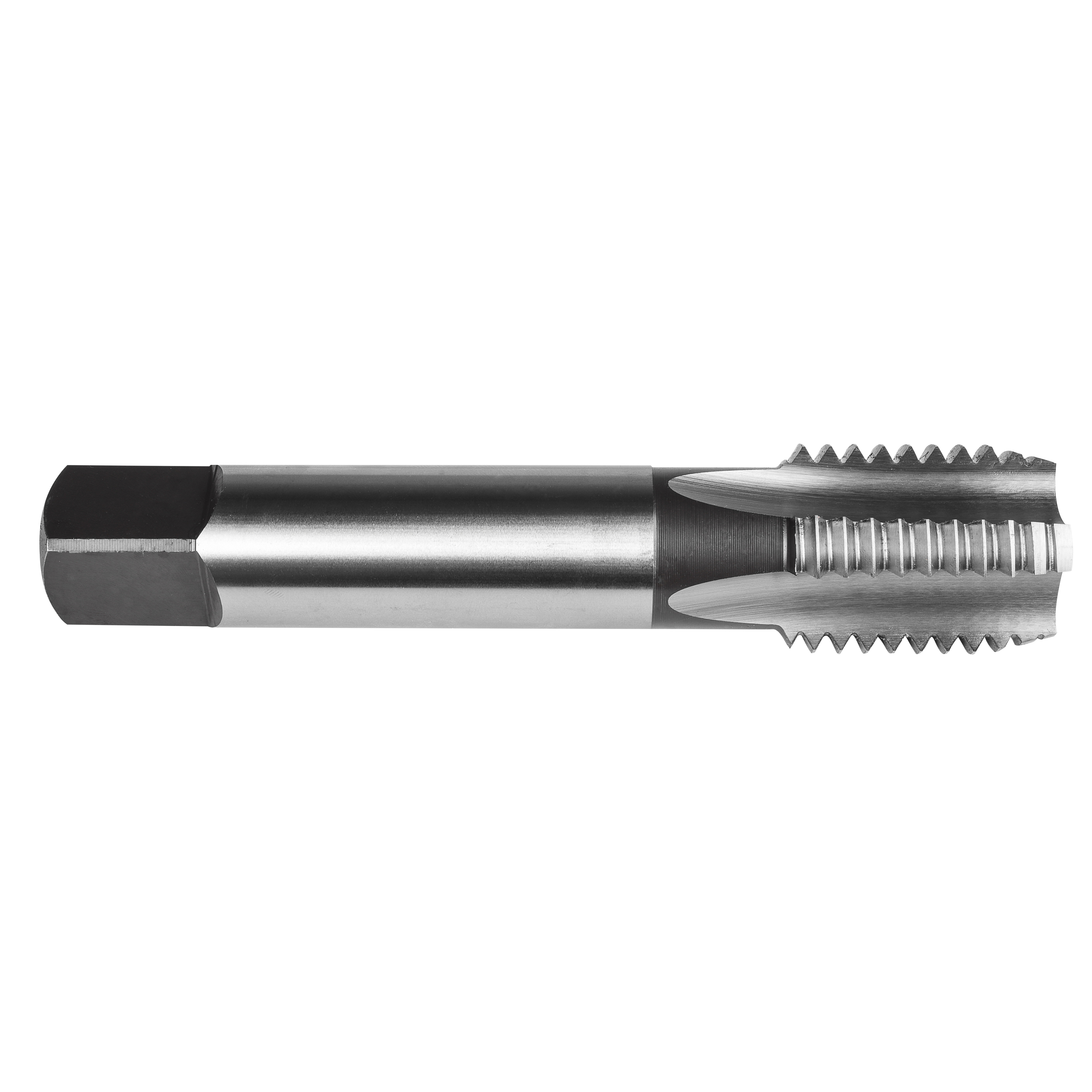

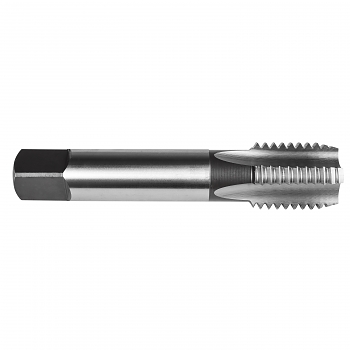

Dormer 5974889 E061 Straight Flute Tap Set, Right Hand Cutting, Bottoming/Plug/Taper Chamfer, H4 Thread Limit
Invoice description:
E061 Hss G/t Taps Fractional Unc Gold
Factory Order
Dormer Tap Set, Straight Flute, Series: E061, Measurement System: Imperial, 3 Piece, 1-1/8-7, Ground/UNC, 1.3976 in Thread Length, 5-7/16 in Overall Length, 4 Flutes, Right Hand Cutting, Class of Fit: 2B/3B, 0.895 in Shank Dia, Bottoming/Plug/Taper Chamfer, H4 Thread Limit, 63/64 in Tap Drill, 0.671 in Square Size, HSS, Bright
Features
- The most versatile taps for hand use or machine tapping in a wide variety of materials
- A medium alloyed high speed steel that has good machinability and good performance
- HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications
Specifications
ApplicationFor through hole and blind hole applications
ChamferBottoming/Plug/Taper
Class of Fit2B/3B
Cutting DirectionRight Hand
Finish/CoatingBright
MaterialHSS
Measurement SystemImperial
Number of Flutes4
Number of Pieces3
Overall Length5-7/16 in
SeriesE061
Shank Diameter0.895 in
Size1-1/8-7
Square Size0.671 in
Tap Drill Size63/64 in
Thread Length1.3976 in
Thread LimitH4
Thread StandardGround/UNC
TypeStraight Flute
Additional Information
Includes0388112 Taper, 0388129 Plug and 0388136 Bottoming Hand Taps
Standards/ApprovalANSI Specified|CSA Approved
Country of OriginUS
