Dormer UTD 0259702

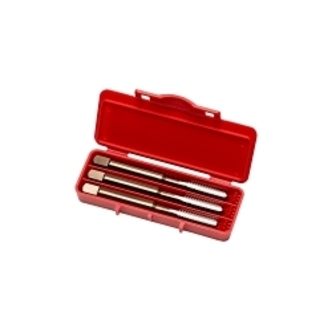

Dormer 5974875 E061 Straight Flute Tap Set, Right Hand Cutting, Bottoming/Plug/Taper Chamfer, H4 Thread Limit
Invoice description:
E061 Hss G/t Taps Fractional Unc Gold
Factory Order
Dormer Tap Set, Straight Flute, Series: E061, Measurement System: Imperial, 3 Piece, 1-1/4-7, Ground/UNC, 1.6338 in Thread Length, 5-3/4 in Overall Length, 4 Flutes, Right Hand Cutting, Class of Fit: 2B/3B, 1.021 in Shank Dia, Bottoming/Plug/Taper Chamfer, H4 Thread Limit, 1-7/64 in Tap Drill, 0.765 in Square Size, HSS, Bright
Features
- The most versatile taps for hand use or machine tapping in a wide variety of materials
- A medium alloyed high speed steel that has good machinability and good performance
- HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications
Specifications
ApplicationFor through hole and blind hole applications
ChamferBottoming/Plug/Taper
Class of Fit2B/3B
Cutting DirectionRight Hand
Finish/CoatingBright
MaterialHSS
Measurement SystemImperial
Number of Flutes4
Number of Pieces3
Overall Length5-3/4 in
SeriesE061
Shank Diameter1.021 in
Size1-1/4-7
Square Size0.765 in
Tap Drill Size1-7/64 in
Thread Length1.6338 in
Thread LimitH4
Thread StandardGround/UNC
TypeStraight Flute
Additional Information
Includes0388143 Taper, 0388150 Plug and 0388167 Bottoming Hand Taps
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
