Dormer UTD 0239254

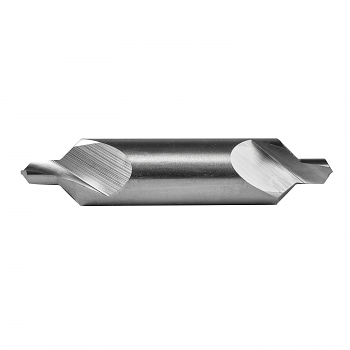

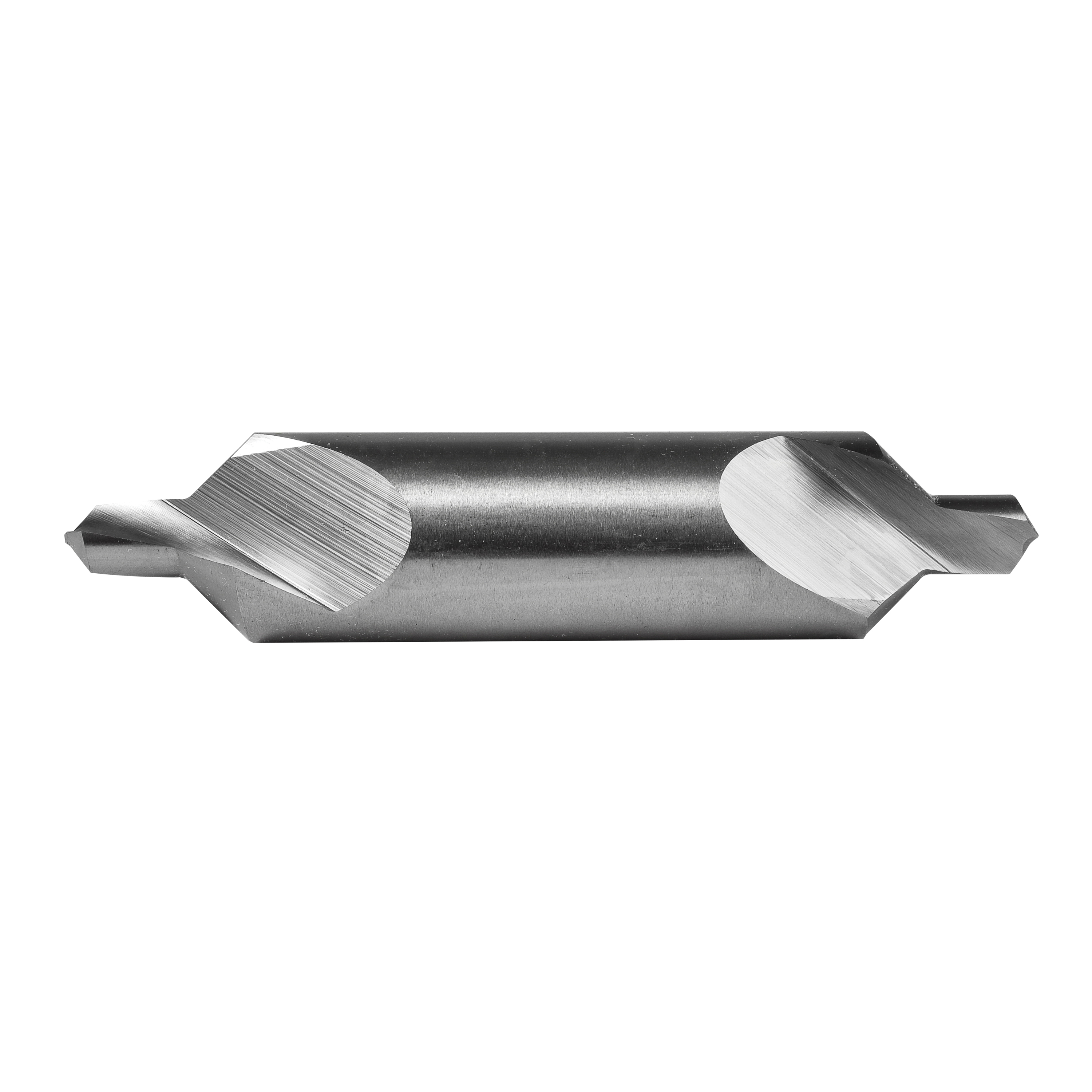

Dormer 5969420 A217 Center Drill Double End Combined Drill and Countersink, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 82 deg Included Angle, 120 deg Point Angle, HSS, Bright
Invoice description:
A217 Hss Comb Centre Dri Lls 82 Ansi A217 Siz
Factory Order
Dormer Combined Drill and Countersink, Center Drill Double End, Series: A217, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, #5 Point Diameter, 7/16 in Diameter Body, 2-3/4 in Overall Length, 0.232 to 0.256 in Flute Length, 7/16 in Shank, Straight Shank, 120 deg Point, 82 deg Included Angle, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Bright, Applicable Materials: Alloy Steel, Aluminum, Aluminum Alloy, Brass, Bronze, Carbon Steel, Cast Iron, Cermet, Copper, Copper Alloy, Free Machining Stainless Steel, Hardened Steel, Magnesium and Nickel
Features
- Bright finish improves chip flow in soft or non-ferrous materials
- High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials
Specifications
ApplicationFor general purpose applications on both ferrous and nonferrous materials
Applicable MaterialsAlloy Steel, Aluminum, Aluminum Alloy, Brass, Bronze, Carbon Steel, Cast Iron, Cermet, Copper, Copper Alloy, Free Machining Stainless Steel, Hardened Steel, Magnesium and Nickel
Body Diameter7/16 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Size - Decimal Inch0.1875 in
Drill Size - Fraction3/16 in
FinishBright
Flute Length0.232 to 0.256 in
Included Angle82 deg
MaterialHSS
Overall Length2-3/4 in
Point Angle120 deg
Point Diameter#5
SeriesA217
Shank Size7/16 in
Shank TypeStraight
TypeCenter Drill Double End
Additional Information
Standards/ApprovalANSI Specified|CSA Approved
Country of OriginFR
