Dormer UTD 0030721

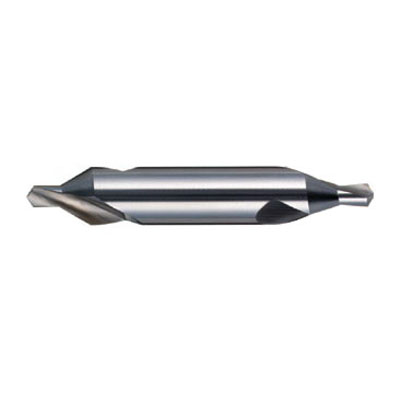

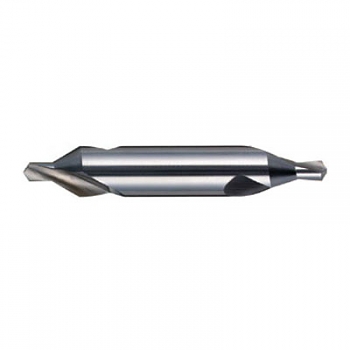

Dormer 5969836 A200 Center Drill Double End Combined Drill and Countersink, 1.6 mm Drill - Metric, 0.063 in Drill - Decimal Inch, 60 deg Included Angle, 118 deg Point Angle, HSS, Bright
Invoice description:
A200 Hss Combination Cen Tre Drills Metric Is
Factory Order
Dormer Combined Drill and Countersink, Center Drill Double End, Series: A200, 1.6 mm Drill - Metric, 0.063 in Drill - Decimal Inch, 4 mm Diameter Body, 35 mm Overall Length, 2 to 2.6 mm Flute Length, 4 mm Shank, Straight Shank, 118 deg Point, 60 deg Included Angle, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Bright, Applicable Materials: Alloy Steel, Aluminum, Brass, Bronze, Carbon Steel, Cast Iron, Cermet, Copper, Hardened Steel, Magnesium, Nickel, Plastic, Stainless Steel, Steel and Titanium
Features
- 1XD cutting depth
- No coolant channe
Specifications
ApplicationFor general purpose applications on both ferrous and nonferrous materials
Applicable MaterialsAlloy Steel, Aluminum, Brass, Bronze, Carbon Steel, Cast Iron, Cermet, Copper, Hardened Steel, Magnesium, Nickel, Plastic, Stainless Steel, Steel and Titanium
Body Diameter4 mm
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Size - Decimal Inch0.063 in
Drill Size - Metric1.6 mm
FinishBright
Flute Length2 to 2.6 mm
Included Angle60 deg
MaterialHSS
Overall Length35 mm
Point Angle118 deg
SeriesA200
Shank Size4 mm
Shank TypeStraight
TypeCenter Drill Double End
Additional Information
Standards/ApprovalDIN 333A
Country of OriginFR
