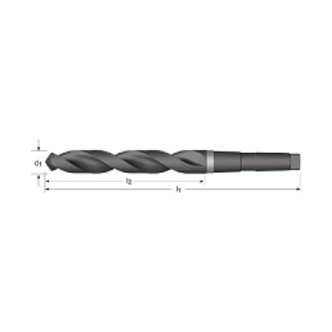

Precision Twist Drill UTD 023136
Precision Twist Drill 5999926 S209 ANSI Jobber Drill, 1-9/16 in Drill - Fraction, 1.5625 in Drill - Decimal Inch, Small Morse Taper Shank Taper, HSS
Invoice description:
Ptd 4mts 118pt Hss Blk Utd 023136
Factory Order
Precision Twist Drill ANSI Jobber Drill, Series: S209, Imperial, Drill Size - Fraction: 1-9/16 in, Drill Size - Decimal Inch: 1.5625 in, 15-1/4 in Overall Length, 9-5/8 in Flute Length, Shank Taper Designation: Small Morse Taper, 118 deg Point, Right Hand Cutting, HSS Cutting Edge, Through Coolant (Yes/No): No, HSS, Steam Tempered, Black, Applicable Materials: Cast Iron, Cast Steel, High Temperature Alloys, Non-Ferrous Metals, Stainless Steel and Steel
Features
- Steam oxide for increased tool life and lubricity
- Accurately ground from high quality high speed steel makes this a robust all rounder
- This specimen is steam relieving, which results in better retention of the cutting oil
- Steam oxide for increased tool life and lubricity
Specifications
ApplicationFor general purpose applications
Applicable MaterialsCast Iron, Cast Steel, High Temperature Alloys, Non-Ferrous Metals, Stainless Steel and Steel
ColorBlack
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch1.5625 in
Drill Size - Fraction1-9/16 in
FinishSteam Tempered
Flute Length9-5/8 in
MaterialHSS
Overall Length15-1/4 in
Point Angle118 deg
SeriesS209
Shank Taper DesignationSmall Morse Taper
Through Coolant (Yes/No)No
Additional Information
Standards/ApprovalDIN 345
Country of OriginBR
