MORSE MOR 10011

MORSE 10011 1302 General Purpose Taper Shank Drill Bit, 11/64 in Drill - Fraction, 0.1719 in Drill - Decimal Inch, #1 Morse Taper Shank Taper, HSS

Invoice description: Bit Drill Taper 11/64 Hs S Blk 118deg

UPC: 686125100117

UNSPSC: 23241606

Manufacturer PN: 10011

^$27.48 EA

Factory Order
Estimated to ship in 10 days

enlarge

Product Overview

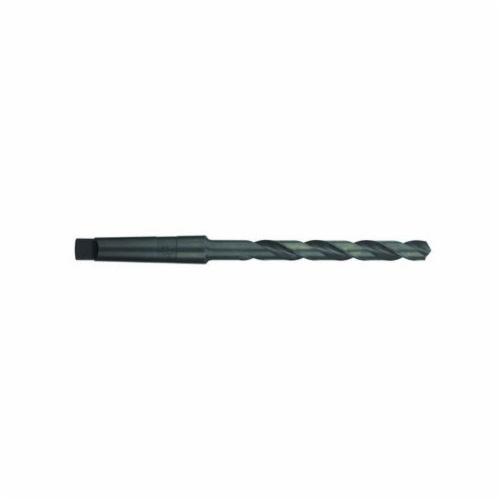

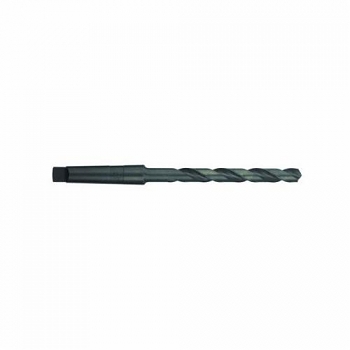

MORSE Taper Shank Drill Bit, General Purpose, Series: 1302, Imperial, 11/64 in Drill - Fraction, 0.1719 in Drill - Decimal Inch, 5-3/4 in Overall Length, 2-1/2 in Cutting Depth, Standard Flute, 2-1/2 in Flute Length, #1 Morse Taper Shank Taper Designation, 118 deg Point, Standard Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Black Oxide, Applicable Materials: Alloyed Steel, Aluminum Alloy, Cast Iron, Copper Alloy, Composite and Plastic, Low/Medium Carbon Steel, Machining Stainless Steel, Magnesium Alloy, Titanium Alloy, Tool and Die Steel

Features
Recommended for production work in wide variety of materials
Black oxide surface treatment increases wear resistance, reduces galling and chip welding, improves chip flow and increases drill lubricant retention

Specifications

Applicable MaterialsAlloyed Steel, Aluminum Alloy, Cast Iron, Copper Alloy, Composite and Plastic, Low/Medium Carbon Steel, Machining Stainless Steel, Magnesium Alloy, Titanium Alloy, Tool and Die Steel

Cutting Depth2-1/2 in

Cutting DirectionRight Hand

Cutting Edge MaterialHSS

Drill Diameter Measurement SystemImperial

Drill Size - Decimal Inch0.1719 in

Drill Size - Fraction11/64 in

FinishBlack Oxide

Flute Length2-1/2 in

Flute TypeStandard

MaterialHSS

Overall Length5-3/4 in

Point Angle118 deg
