Dormer UTD 0217993

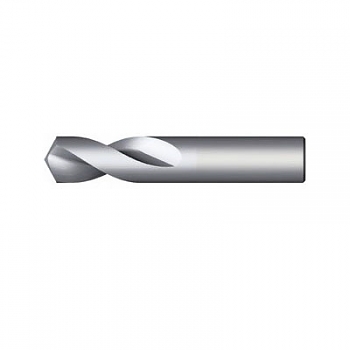

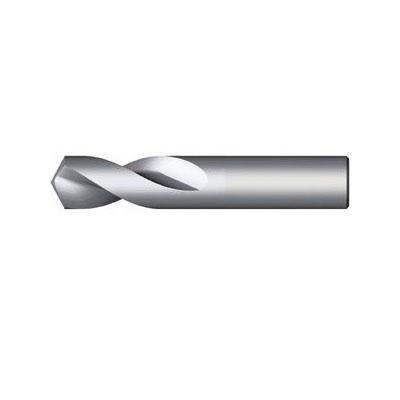

Dormer 5979835 R123 Short Length Spotting Drill, 5 mm Dia, 62 mm OAL, Carbide, Bright
Factory Order
Dormer Spotting Drill, Short Length, Series: R123, 5 mm Dia, 62 mm Overall Length, 1XD Cutting Depth, 2 Flutes, Spiral Flute, 16 mm Flute Length, 5 mm Shank, Straight Shank, 90 deg Point, Split Point, Right Hand Cutting, HM Cutting Edge, Carbide, Bright, Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium and Synthetic Materials
Features
- Carbide materials are often characterised by high compression strength, high hardness and therefore high wear resistance, but also by limited flexural strength and toughness
Specifications
ApplicationFor accurate positioning of holes prior to drilling operations
Applicable MaterialsSteel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium and Synthetic Materials
Cutting Depth1XD
Cutting DirectionRight Hand
Cutting Edge MaterialHM
Diameter5 mm
FinishBright
Flute Length16 mm
Flute TypeSpiral
MaterialCarbide
Number of Flutes2
Overall Length62 mm
Point Angle90 deg
Point TypeSplit
SeriesR123
Shank Size5 mm
Shank TypeStraight
TypeShort Length
