Dormer UTD 0019238

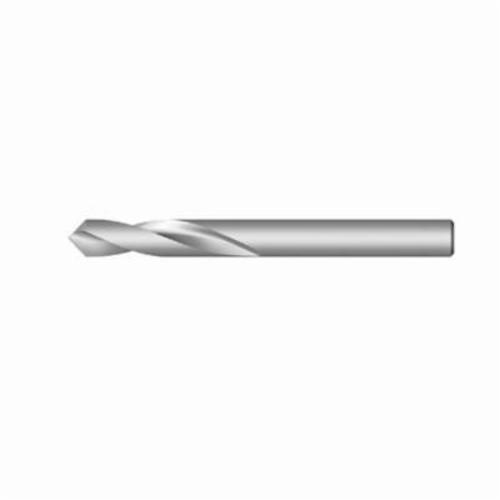

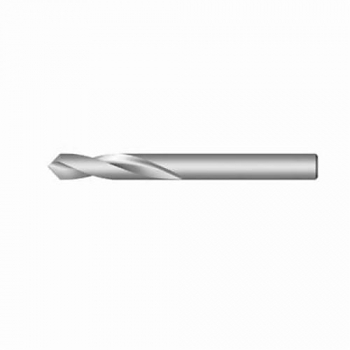

Dormer 5968656 A122 Short Length NC Spotting Drill, 6 mm Dia, 66 mm OAL, HSS, Bright
Invoice description:
A122 Hss Spotting Drill 90/120
Factory Order
Dormer NC Spotting Drill, Short Length, Series: A122, 6 mm Dia, 66 mm Overall Length, 1XD Cutting Depth, 2 Flutes, Spiral Flute, 30 mm Flute Length, 6 mm Shank, Straight Shank, 120 deg Point, Right Hand Cutting, HSS Cutting Edge, HSS, Bright, Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Material and Hard Material
Features
- A medium alloyed high speed steel that has good machinability and good performance
- HSS exhibits hardness, toughness and wear resistance characteristics that make It attractive in a wide range of applications
Specifications
ApplicationFor general drilling applications
Applicable MaterialsSteel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Material and Hard Material
Cutting Depth1XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Diameter6 mm
FinishBright
Flute Length30 mm
Flute TypeSpiral
MaterialHSS
Number of Flutes2
Overall Length66 mm
Point Angle120 deg
SeriesA122
Shank Size6 mm
Shank TypeStraight
TypeShort Length
Additional Information
Standards/ApprovalDIN 1897
Country of OriginBR
