Dormer UTD 0155998

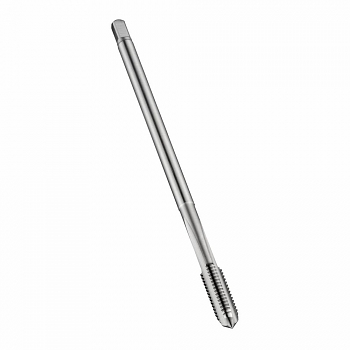

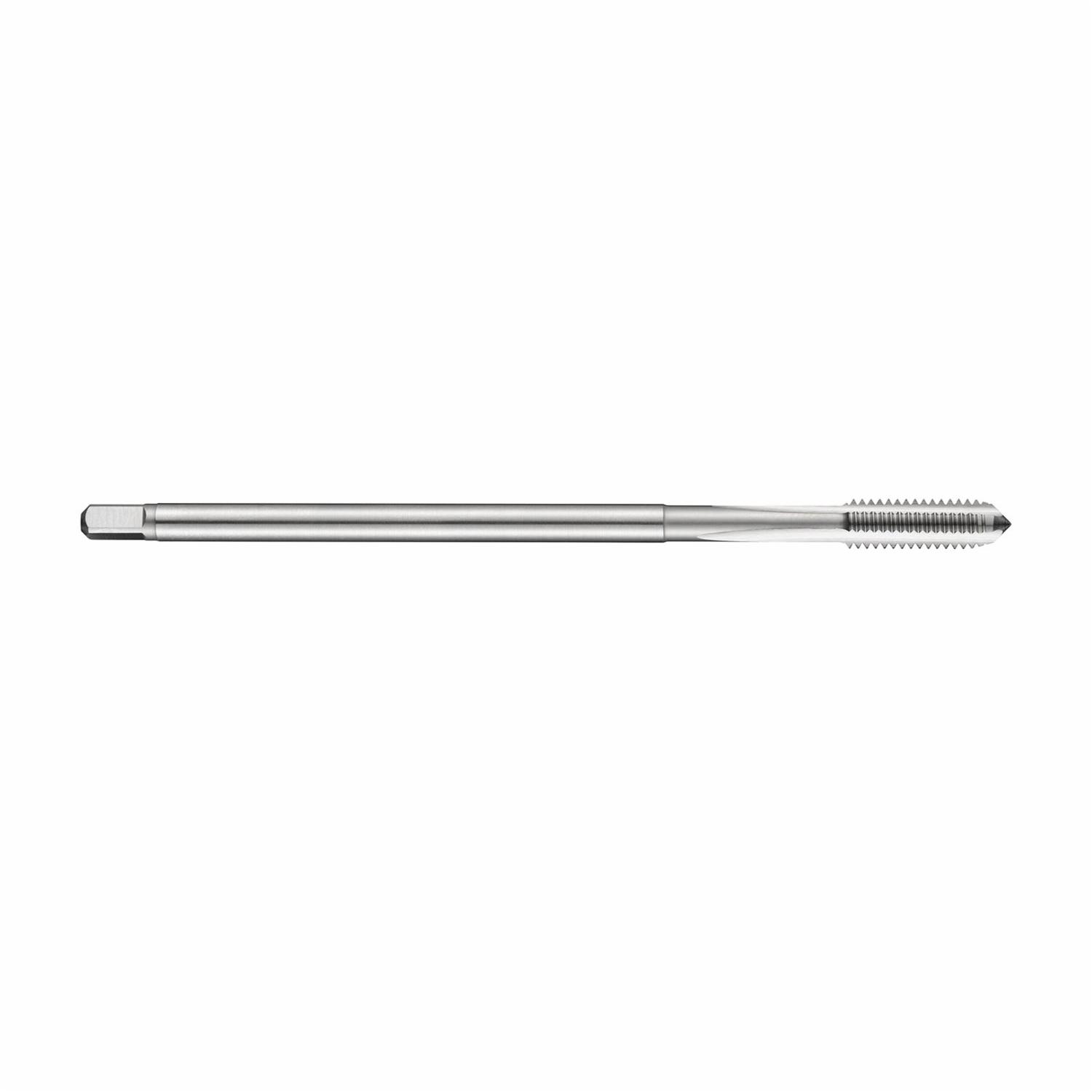

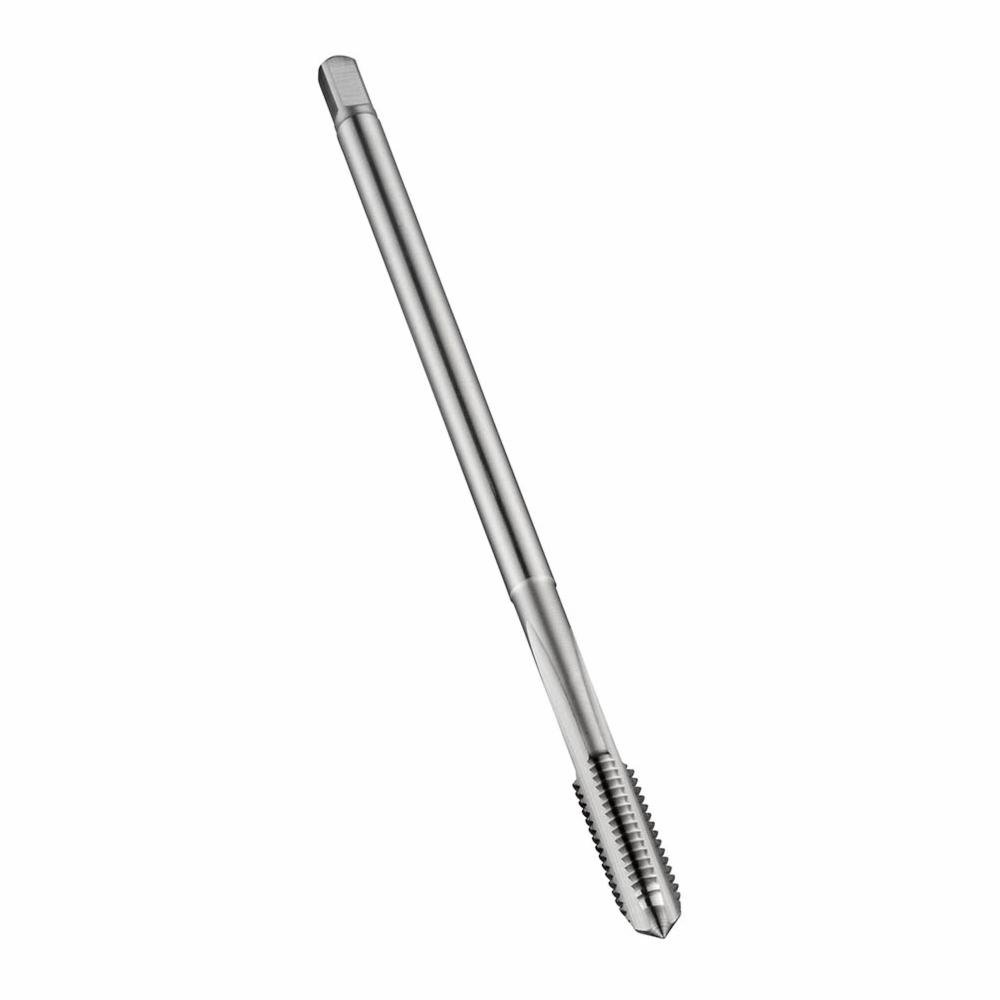

Dormer 5977755 E600 Extra Long Dormer Straight Flute Machine Tap, Right Hand Cutting, M5x0.8 Thread, Semi-Bottoming Chamfer, 3 Flutes, Bright, HSS-E
Invoice description:
E600 Hsco G/t Taps Long Shk Str.flute Metric
Factory Order
Dormer Dormer Straight Flute Machine Tap, Extra Long, Measurement System: Metric, Coarse, M5x0.8, Semi-Bottoming Chamfer, 3 Flutes, HSS-E, Bright, Class of Fit: 6H, Right Hand Cutting, 12 mm Thread Length, 79 mm Overall Length, 4 mm Shank Dia
Features
- This high speed steel contains cobalt for increased hot hardness
- The composition of HSCo is a good combination of toughness and hardness
- It has good machinability and good wear resistance
Specifications
ApplicationFor through or blind hole applications
Chamfer TypeSemi-Bottoming
Class of Fit6H
Cutting DirectionRight Hand
Finish/CoatingBright
MaterialHSS-E
Measurement SystemMetric
Number of Flutes3
Overall Length79 mm
SeriesE600
Shank Diameter4 mm
Thread Length12 mm
Thread SizeM5x0.8
Thread StandardCoarse
TypeExtra Long
Additional Information
Standards/ApprovalISO 2283|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
Country of OriginBR
