Union Butterfield UTD 1500B 1-1/2-12
Union Butterfield 6007021 1500 General Purpose Straight Flute Hand Tap, Right Hand Cutting, 1-1/2-12 Thread, H4 Thread Limit, Bottoming Chamfer, 6 Flutes, Bright, HSS
Invoice description:
1.1/2in X 12 Tpi H4 6 Fl 1455 Hss Brt Unf Handtap 1500 Hss Brt Unf 7/16 Inch X 20 6007021
In stock
(12)

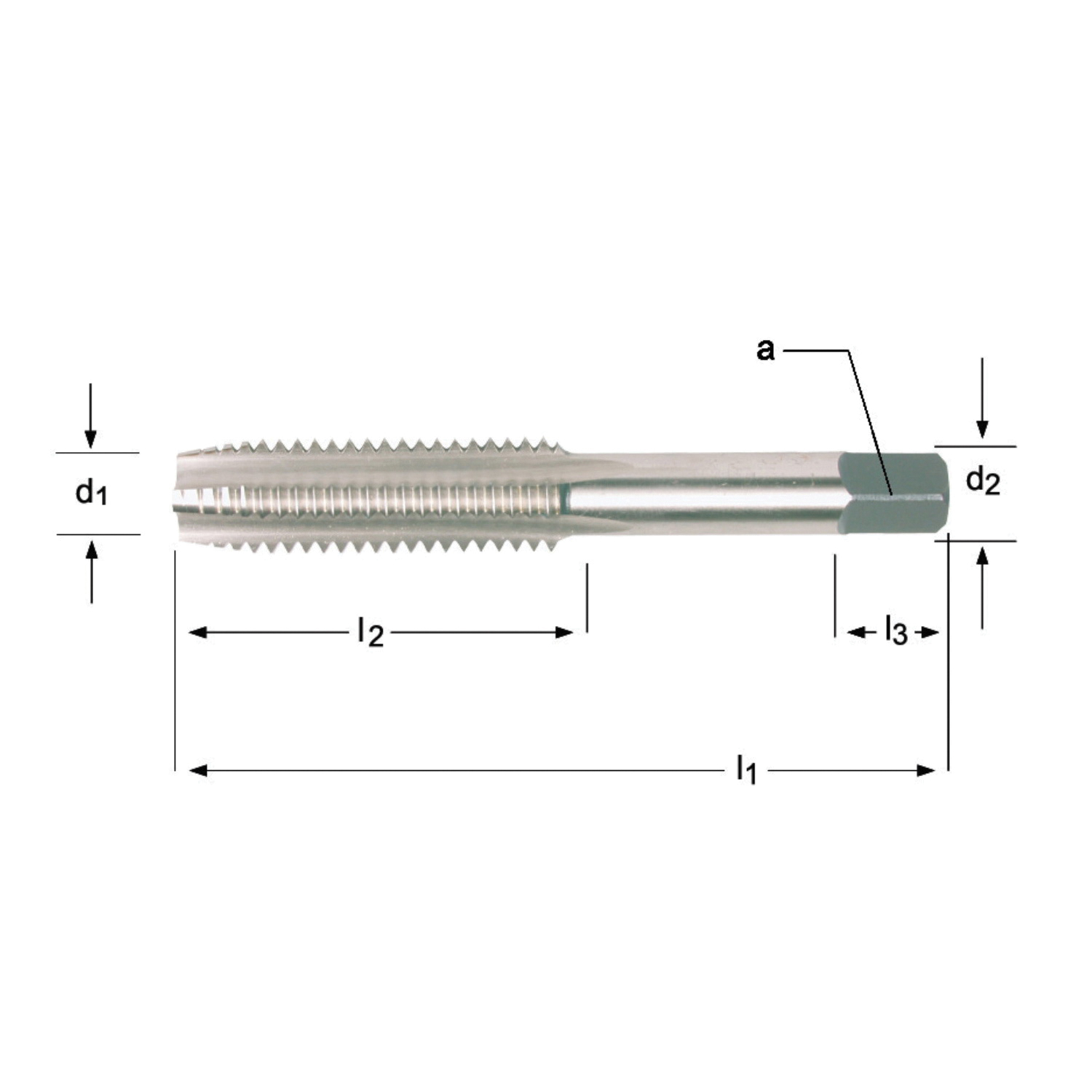

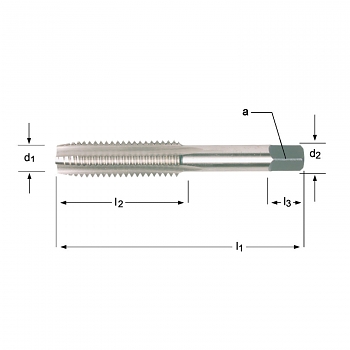

Union Butterfield Straight Flute Hand Tap, General Purpose, Series: 1500, Measurement System: Imperial, UNF, 1-1/2-12, Bottoming Chamfer, 6 Flutes, HSS, Bright, Class of Fit: 2B/3B, Right Hand Cutting, 3 in Thread Length, 6-3/8 in Overall Length, 1.23 in Shank Dia, Steel, Stainless Steel, Copper, Titanium, Nickel, Cast Iron, Aluminum Magnesium and Synthetic Materials Material Application, H4 Thread Limit
Features
- The most versatile taps for hand use or machine tapping in a wide variety of materials in through or blind hole applications
- A medium alloyed high speed steel that has good machinability and good performance
- HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications
Specifications
ApplicationFor through or blind hole applications
Chamfer TypeBottoming
Class of Fit2B/3B
Cutting DirectionRight Hand
Finish/CoatingBright
MaterialHSS
Material ApplicationSteel, Stainless Steel, Copper, Titanium, Nickel, Cast Iron, Aluminum Magnesium and Synthetic Materials
Measurement SystemImperial
Number of Flutes6
Overall Length6-3/8 in
Series1500
Shank Diameter1.23 in
Thread Length3 in
Thread LimitH4
Thread Size1-1/2-12
Thread StandardUNF
TypeGeneral Purpose
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
Catalog
Specification Sheet
