Dormer UTD 0155721

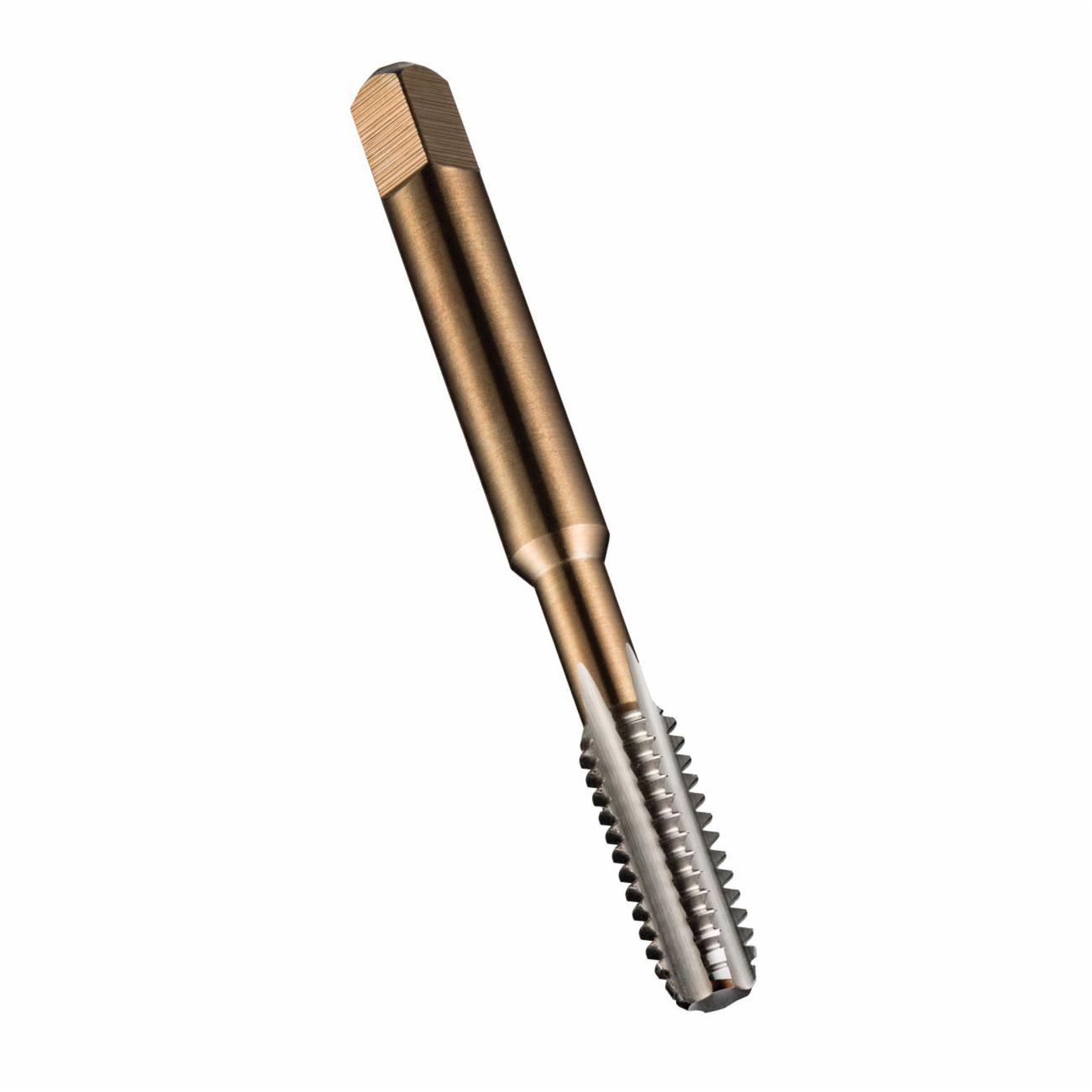

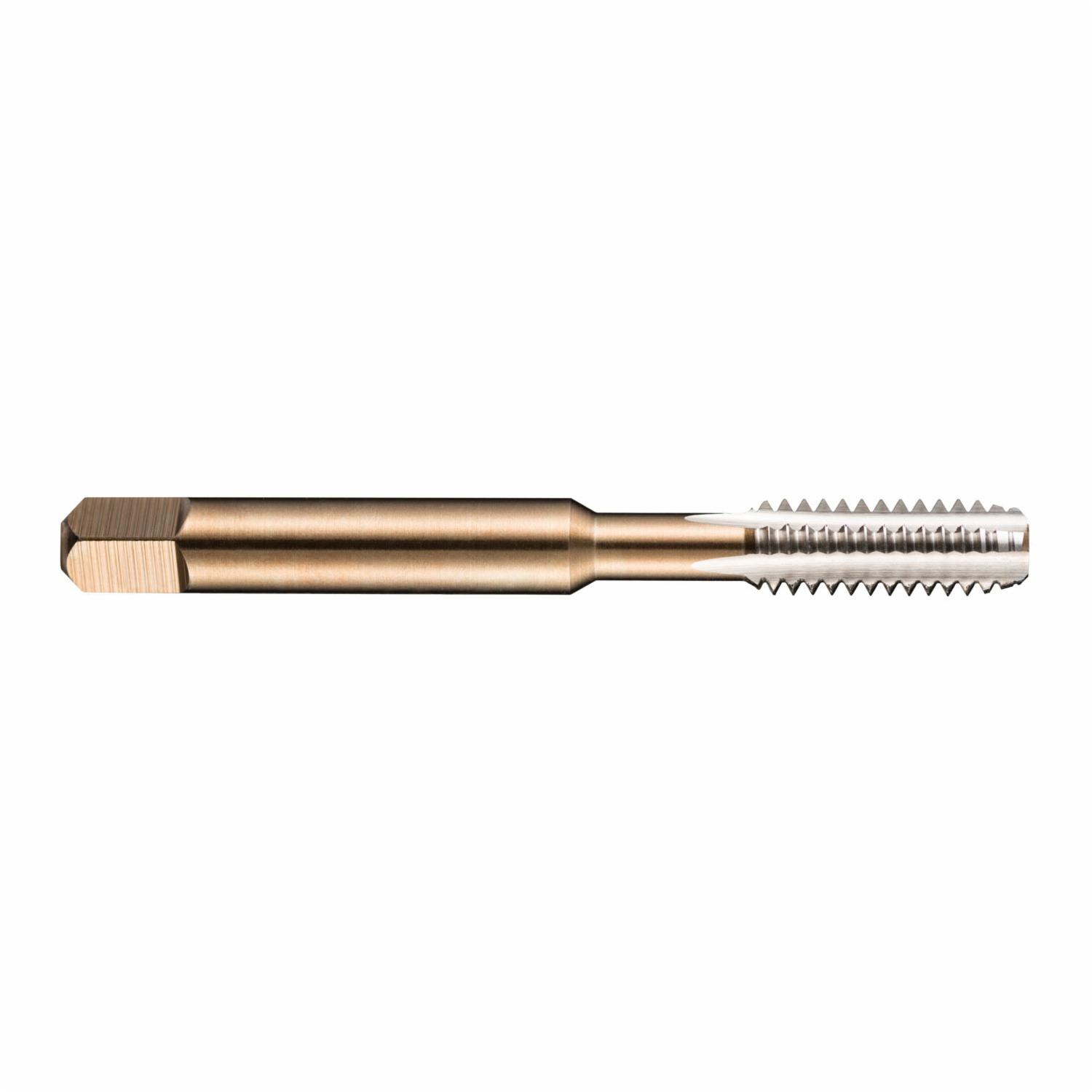

Dormer 5977053 E513 General Purpose Dormer Straight Flute Machine Tap, Right Hand Cutting, M30x2 Thread, Plug Chamfer, 4 Flutes, Bright, HSS
Invoice description:
E513/e499 Hs G/t Tap Met Ric Fine Str.flutes
Factory Order
Dormer Dormer Straight Flute Machine Tap, General Purpose, Series: CoroTurn 107, Measurement System: Metric, Fine, M30x2, Plug Chamfer, 4 Flutes, HSS, Bright, Class of Fit: 6H, Right Hand Cutting, 41 mm Thread Length, 138 mm Overall Length, 20 mm Shank Dia, Steel, Copper, Cast Iron, Aluminum Magnesium and Synthetic Materials Material Application
Features
- The most versatile taps for hand use or machine tapping in a wide variety of materials in through or blind hole applications
- A medium alloyed high speed steel that has good machinability and good performance
- HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications
Specifications
ApplicationFor through or blind hole applications
Chamfer TypePlug
Class of Fit6H
Cutting DirectionRight Hand
Finish/CoatingBright
MaterialHSS
Material ApplicationSteel, Copper, Cast Iron, Aluminum Magnesium and Synthetic Materials
Measurement SystemMetric
Number of Flutes4
Overall Length138 mm
SeriesE513
Shank Diameter20 mm
Thread Length41 mm
Thread SizeM30x2
Thread StandardFine
TypeGeneral Purpose
Additional Information
Standards/ApprovalISO 529
Country of OriginBR
