Dormer UTD 0127537

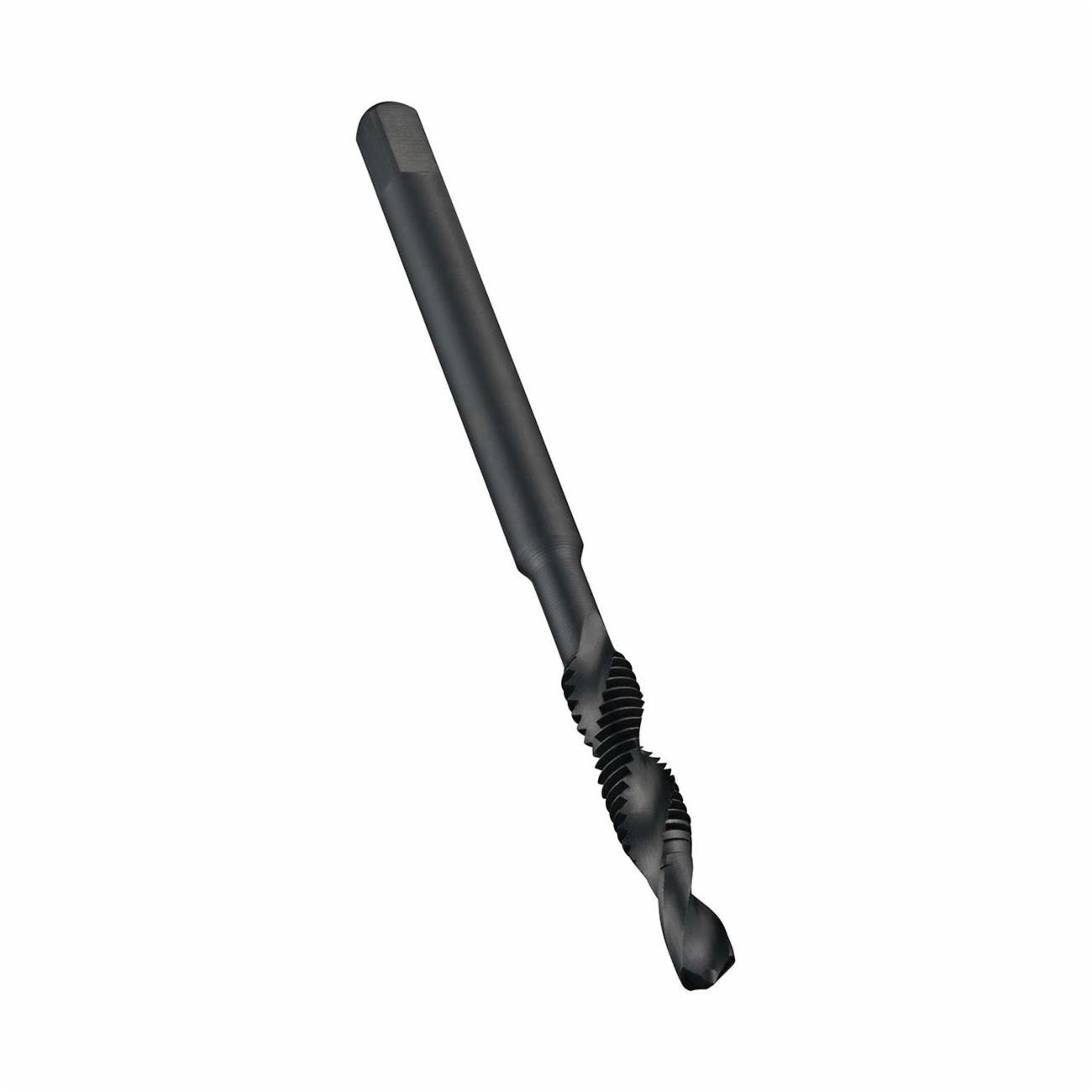

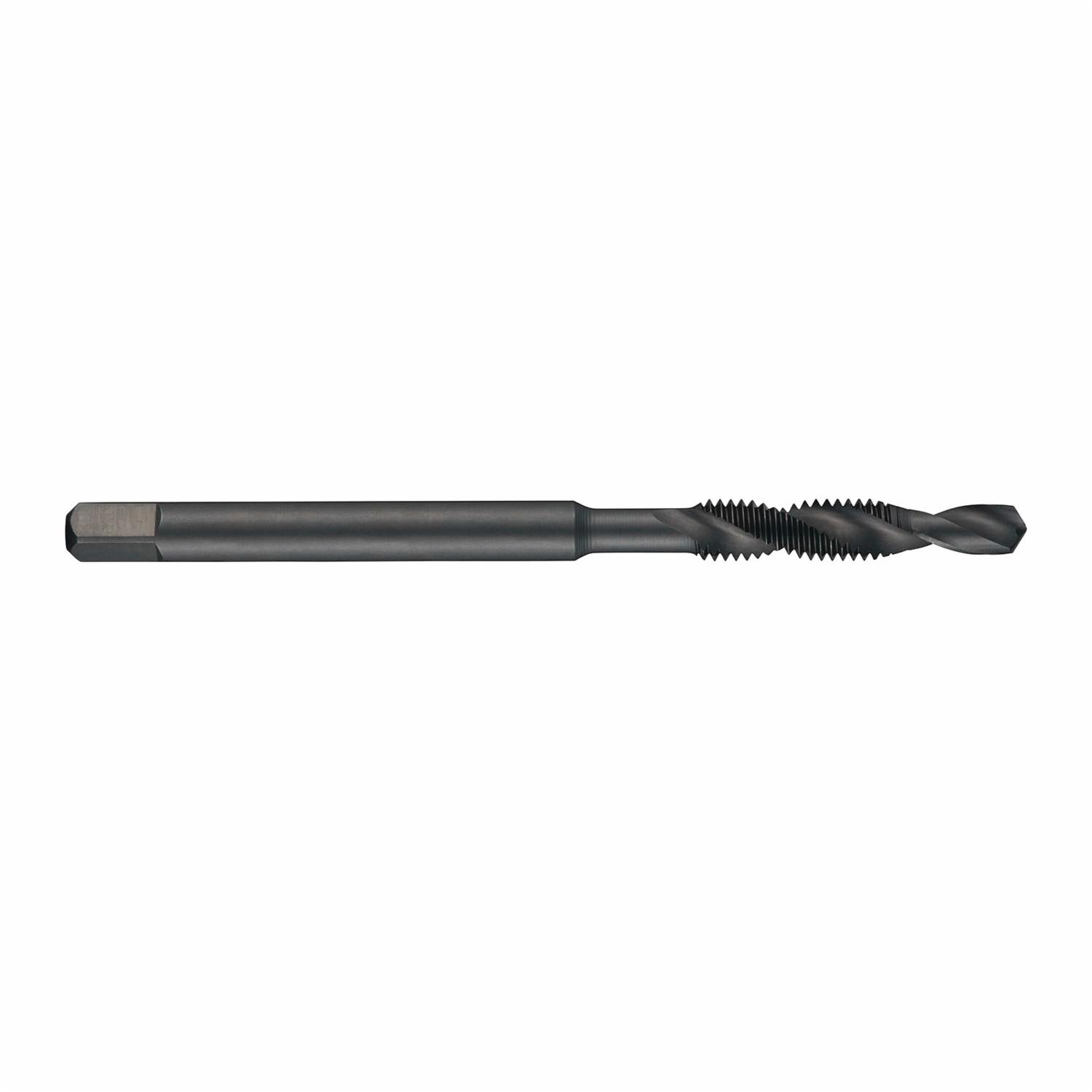

Dormer 5978313 E650 Spiral Flute Combination Drill and Tap, 2B Class of Fit, 28 mm L Drill, M14x2 Thread
Invoice description:
E650 Hss G/t Combination Drill-taps Metric
Factory Order
Dormer Combination Drill and Tap, Spiral Flute, Series: E650, Measurement System: Metric, Class of Fit: 2B, 12 mm Drill, M14x2 Thread, 28 mm Drill Length, 123 mm Overall Length, 2 Flutes, Right Hand Cutting Direction, Square Shank, 11.2 mm Shank Diameter, 9 mm Square, HSS, Steam Oxide
Features
- Spiral flute 30 deg
- Drills and taps in a single pass, reducing cycle time
- Commonly used in multi-spindle operations with reversing capacity
- Designed to provide 65% thread engagement and a 2B class of fit
- Steam oxide finish reduces wear and chip welding in harder ferrous materials
Specifications
ApplicationUsed in multi-spindle operations with reversing capacity
Class of Fit2B
Cutting DirectionRight Hand
Drill Length28 mm
Drill Size12 mm
Finish/CoatingSteam Oxide
MaterialHSS
Measurement SystemMetric
Number of Flutes2
Overall Length123 mm
SeriesE650
Shank Diameter11.2 mm
Shank TypeSquare
Square Size9 mm
Thread SizeM14x2
TypeSpiral Flute
Additional Information
Standards/ApprovalISO Certified
Country of OriginBR
