Dormer UTD 0122525

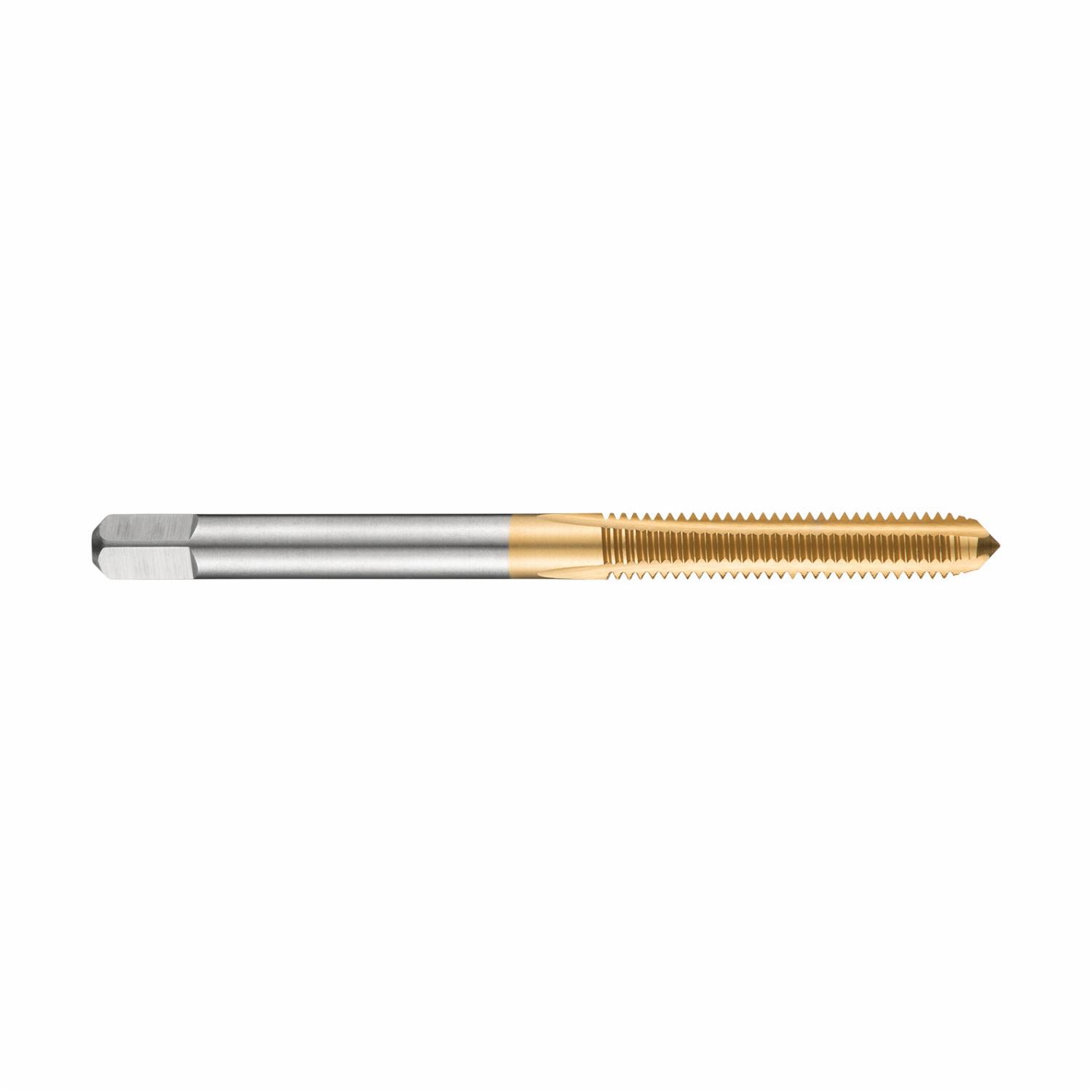

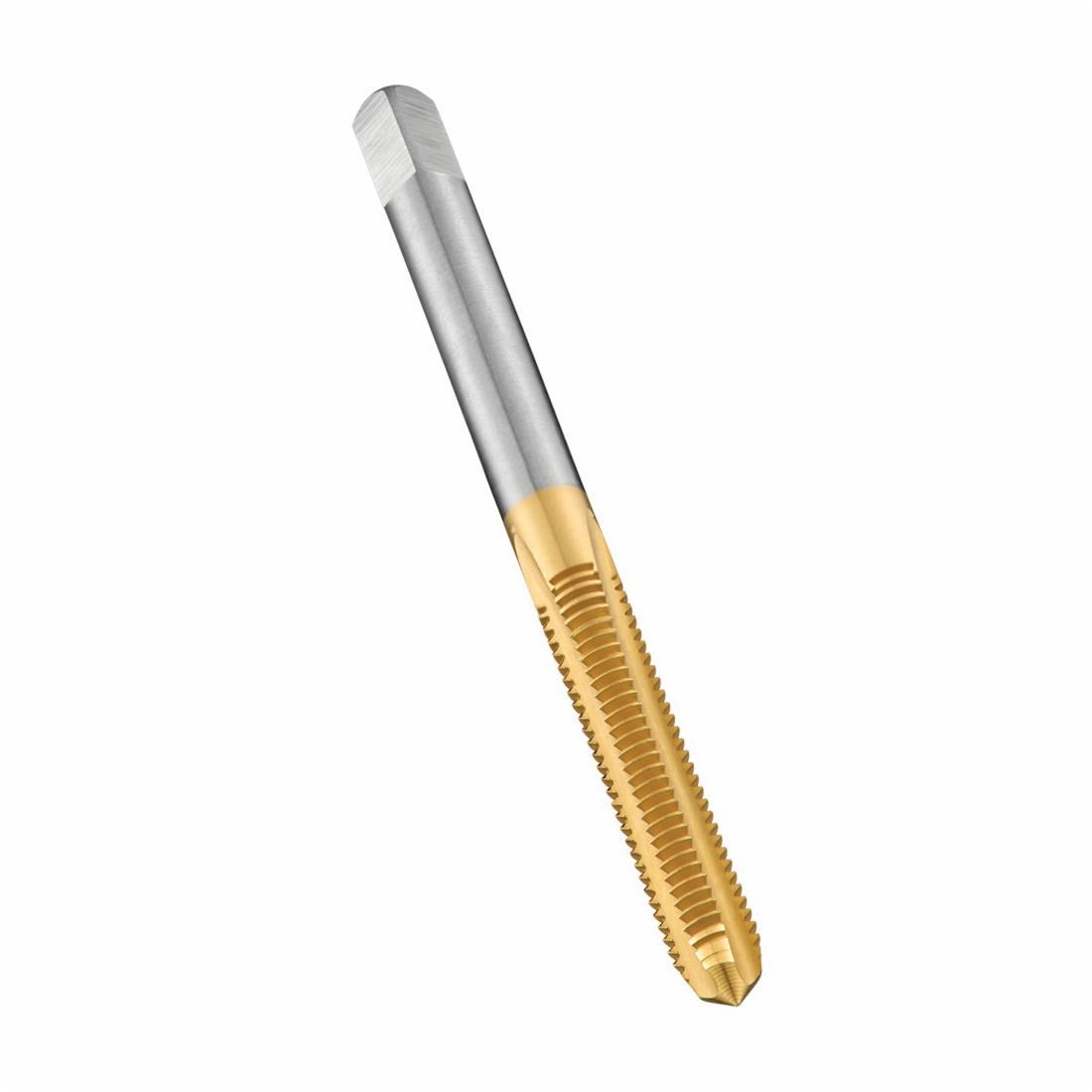

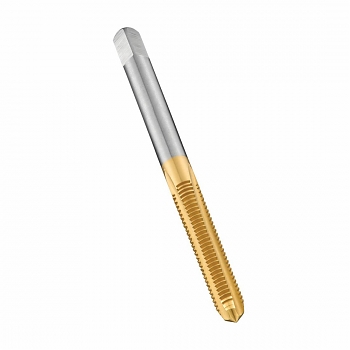

Dormer 5976868 E504 Straight Flute Machine Tap, Right Hand Cutting, M8x1.25 Thread, Bottoming Chamfer, 3 Flutes, TiN Coated, HSS
Invoice description:
E504 Hss G/t Taps Metric Coarse Tin
Factory Order
Dormer Straight Flute Machine Tap, Series: E504, Measurement System: Metric, Coarse Thread Standard, M8x1.25 Thread, Bottoming Chamfer, 3 Flutes, HSS, TiN Coated, Class of Fit: 6H, Right Hand Cutting Direction, 16 mm Thread Length, 72 mm Overall Length, 8 mm Shank Diameter, Alloy Steel, Aluminum Alloy, Brass, Bronze, Carbon Steel, Cast Iron, Copper, Copper Alloy, Hardened Steel, Plastic, Steel, Structural Steel and Thermosetting Plastics Material Application
Features
- The most versatile taps for hand use or machine tapping in a wide variety of materials in through or blind hole applications
- A medium alloyed high speed steel that has good machinability and good performance
- HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications
Specifications
ApplicationFor through or blind hole applications
Chamfer TypeBottoming
Class of Fit6H
Cutting DirectionRight Hand
Finish/CoatingTiN Coated
MaterialHSS
Material ApplicationAlloy Steel, Aluminum Alloy, Brass, Bronze, Carbon Steel, Cast Iron, Copper, Copper Alloy, Hardened Steel, Plastic, Steel, Structural Steel and Thermosetting Plastics
Measurement SystemMetric
Number of Flutes3
Overall Length72 mm
SeriesE504
Shank Diameter8 mm
Thread Length16 mm
Thread SizeM8x1.25
Thread StandardCoarse
Additional Information
Standards/ApprovalISO 529
Country of OriginBR
