Dormer UTD 0087282

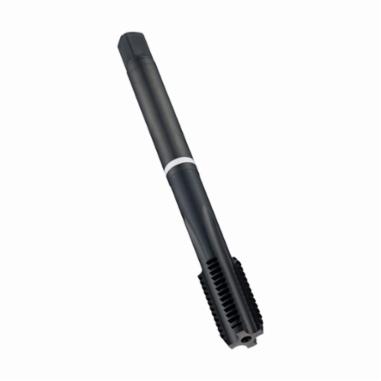

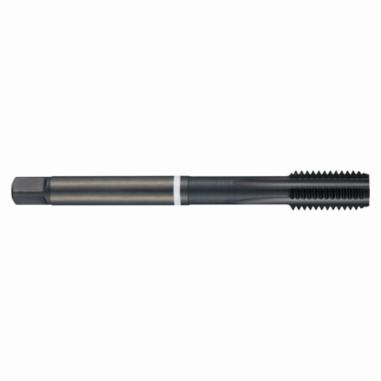

Dormer 5975929 E252 Straight Flute Machine Tap With White Shank, Right Hand Cutting, M14x2 Thread, D7 Thread Limit, Semi-Bottoming Chamfer, 4 Flutes, Nitride/Steam Tempered, HSS
Invoice description:
E252 Hsco-xp Shark Tap W Hit Rg St.fl. Nitrid
Factory Order
Dormer Straight Flute Machine Tap, Series: E252, Measurement System: Metric, Coarse, M14x2, Semi-Bottoming Chamfer, 4 Flutes, HSS, Nitride/Steam Tempered, Class of Fit: 6HX, Right Hand Cutting, 25 mm Thread Length, 110 mm Overall Length, 11 mm Shank Dia, Cast Iron, Copper, Aluminum Magnesium and Synthetic Materials Material Application, D7 Thread Limit
Features
- Designed for through or blind hole tapping with a specific geometry for cast iron and those materials producing broken, powdery chips
- Also ideal for non-metallics, cast brass and other brass materials
- Nitride and steam oxide coating reduces wear and chip welding in abrasive materials
Specifications
ApplicationFor through or blind hole applications
Chamfer TypeSemi-Bottoming
Class of Fit6HX
Cutting DirectionRight Hand
Finish/CoatingNitride/Steam Tempered
MaterialHSS
Material ApplicationCast Iron, Copper, Aluminum Magnesium and Synthetic Materials
Measurement SystemMetric
Number of Flutes4
Overall Length110 mm
SeriesE252
Shank Diameter11 mm
Thread Length25 mm
Thread LimitD7
Thread SizeM14x2
Thread StandardCoarse
Additional Information
Standards/ApprovalDIN 376|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
Country of OriginIN
