Dormer UTD 0076217

Dormer 5985748 C920 Center Cutting Regular Helix Single End Square End End Mill, 6 mm Dia Cutter, 24 mm Length of Cut, 3 Flutes, 6 mm Dia Shank, 68 mm OAL, AlCrN Coated

Invoice description: Hsco-xp Super Primax E/m Mult-flt Cc Long

UNSPSC: 23242511

Manufacturer PN: 5985748

^$72.66 EA

Factory Order

enlarge

Product Overview

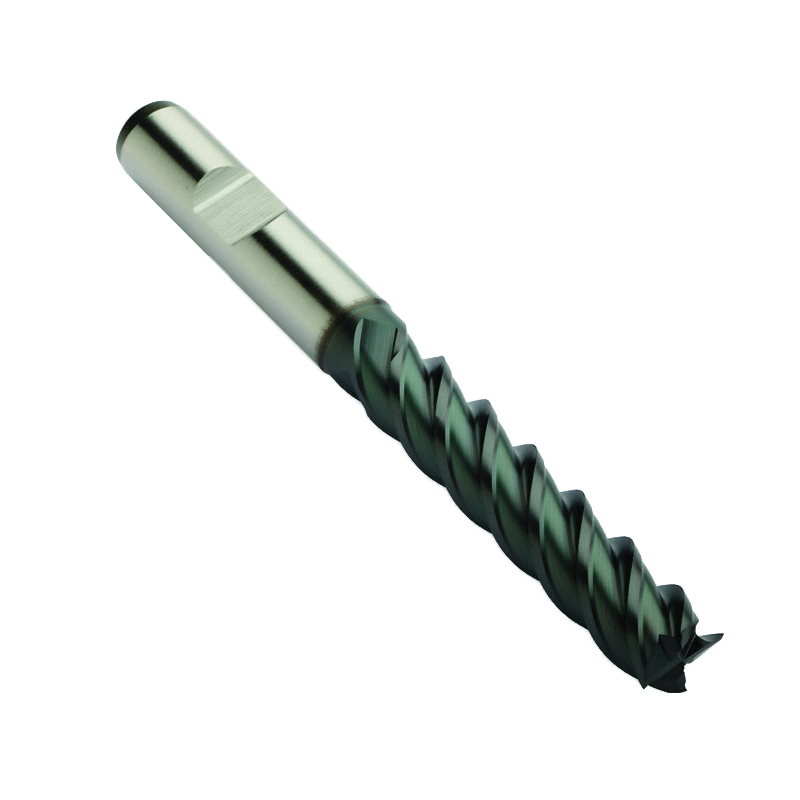

Dormer End Mill, Center Cutting Regular Helix Single End Square End, Series: C920, 6 mm Diameter Cutter, 68 mm Overall Length, 24 mm Length of Cut, 3 Flutes, 6 mm Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, Weldon Flat Shank, HSS-E, AlCrN Coated

Features
Powdered metal (PM) is tougher and more cost effective than solid carbide
It is commonly used on highly abrasive materials including high silicon aluminums
Aluminum chromium nitride (AlCrN) has a higher heat resistance than AlTiN
It is commonly used for machining aircraft and aerospace material, nickel alloy, stainless steel, titanium, cast iron and carbon steel
K10 diameter tolerance
12 deg rake angle

Specifications

ApplicationFor slotting, ramping, diving, finishing and roughing operations

Cutter Diameter6 mm

Cutting DirectionRight Hand

FinishAlCrN Coated

Helix Angle45 deg

Length of Cut24 mm

MaterialHSS-E

Number of Flutes3

Overall Length68 mm

SeriesC920

Shank Diameter6 mm

Shank TypeWeldon Flat

TypeCenter Cutting Regular Helix Single End Square End

Additional Information

Standards/ApprovalDIN 1835B|DIN 844L|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Country of OriginPL
