Dormer UTD 0070048

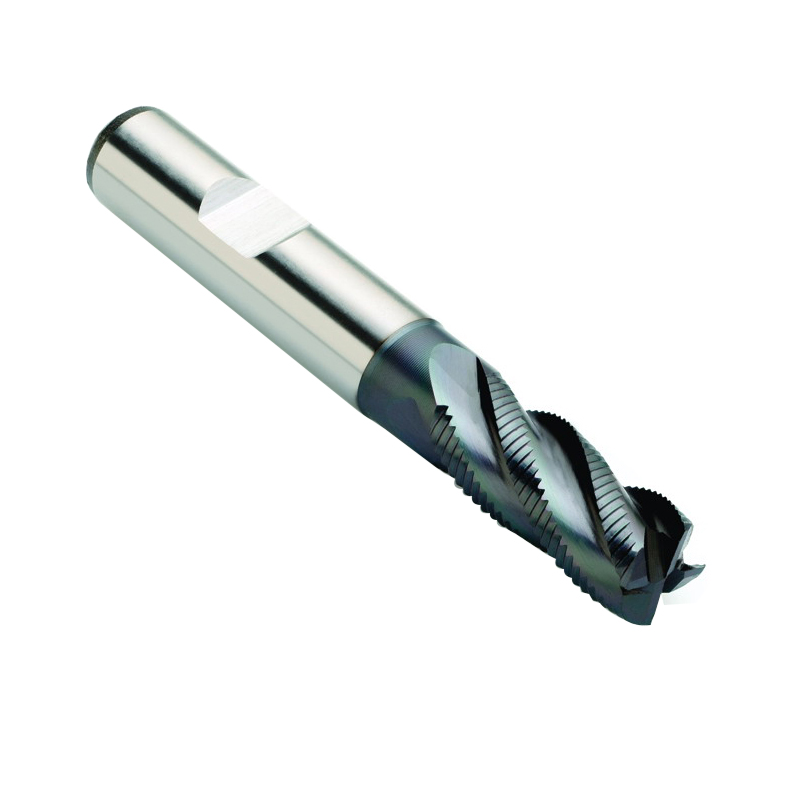

Dormer 5984925 C428 Type HRA Center Cutting Single End Square End End Mill, 22 mm Dia Cutter, 38 mm Length of Cut, 4 Flutes, 20 mm Dia Shank, 104 mm OAL, AlCrN Coated

Invoice description: Hsco-xp Super G Primax Roughing E/m M-flt

UNSPSC: 23242511

Manufacturer PN: 5984925

^$252.32 EA

Factory Order

enlarge

Product Overview

Dormer End Mill, Type HRA Center Cutting Single End Square End, Series: C428, 22 mm Diameter Cutter, 104 mm Overall Length, 38 mm Length of Cut, 4 Flutes, Spiral Flute, 20 mm Shank Diameter, Right Hand Cutting Direction, 35 deg Helix Angle, Weldon Flat Shank, HSS-E, AlCrN Coated

Features
Powdered metal (PM) is tougher and more cost effective than solid carbide
It is commonly used on highly abrasive materials including high silicon aluminums
Aluminum chromium nitride (AlCrN) has a higher heat resistance than AlTiN
It is commonly used for machining aircraft and aerospace material, nickel alloy, stainless steel, titanium, cast iron and carbon steel
12 deg rake angle
K12 diameter tolerance

Specifications

ApplicationFor slotting, ramping, roughing and diving operations

Cutter Diameter22 mm

Cutting DirectionRight Hand

FinishAlCrN Coated

Flute TypeSpiral

Helix Angle35 deg

Length of Cut38 mm

MaterialHSS-E

Number of Flutes4

Overall Length104 mm

SeriesC428

Shank Diameter20 mm

Shank TypeWeldon Flat

TypeType HRA Center Cutting Single End Square End

Additional Information

Standards/ApprovalDIN 1835B|DIN 844K|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Country of OriginCZ
