Dormer UTD 0019641

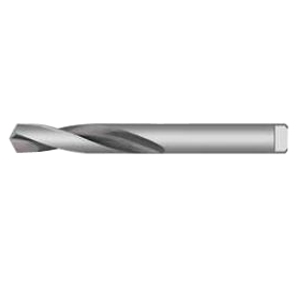

Dormer 5968717 A124 Screw Machine Drill, 3 mm Drill - Metric, 0.1181 in Drill - Decimal Inch, HSS HM, Steam Tempered
Dormer Screw Machine Drill, Series: A124, Metric/Imperial, 3 mm Drill - Metric, 0.1181 in Drill - Decimal Inch, 50 mm Overall Length, 2.5XD Cutting Depth, 2 Flutes, Spiral Flute, 20 mm Flute Length, Tanged Shank, 118 deg Point, 4-Facet Point, Right Hand Cutting Direction, HSS HM Cutting Edge, HSS HM, Steam Tempered, Dark Gray, Applicable Materials: Lamellar Graphite, Malleable Cast Iron and Nodular Graphite
Features
- Carbide tips cuts faster than high speed steel is commonly used on ferrous and nonferrous metals including cast iron, steel and steel alloys
- Bright/oxide provides a smooth, polished finish and prevents chip building, galling and welding on the work piece It increases chip flow and is commonly used on low carbon metals, stainless steel and ferrous metals
- Spiral flutes are constructed of a higher flute angle to remove chips easier
- Web thinned
- Tapered web configuration
- No coolant channe
Specifications
ApplicationFor general drilling applications
Applicable MaterialsLamellar Graphite, Malleable Cast Iron and Nodular Graphite
ColorDark Gray
Cutting Depth2.5XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS HM
Drill Diameter Measurement SystemMetric/Imperial
Drill Size - Decimal Inch0.1181 in
Drill Size - Metric3 mm
FinishSteam Tempered
Flute Length20 mm
Flute TypeSpiral
MaterialHSS HM
Number of Flutes2
Overall Length50 mm
Point Angle118 deg
Point Type4-Facet
SeriesA124
Shank TypeTanged
