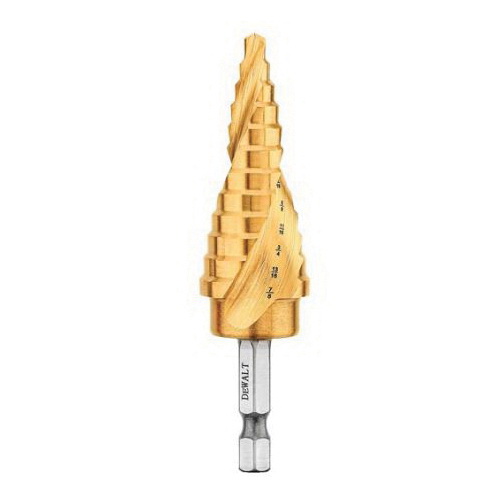

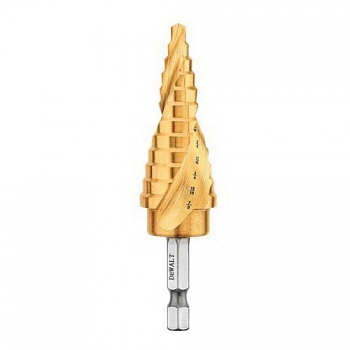

DeWALT DW DWA1786IR
DeWALT IMPACT READY DWA1786IR High Performance Impact-Rated Step Drill Bit, Imperial, 3/16 in Dia Min Hole, 7/8 in Dia Max Hole, 12 Steps, Titanium, 12 Hole Sizes, 1/4 in Shank
Invoice description:
Bit Step 12 Step 3/16-7/ 8 Impact Ready
In stock
(3)
DeWALT IMPACT READY Step Drill Bit, High Performance Impact-Rated, Imperial, 3/16 in Diameter Minimum Hole, 7/8 in Diameter Maximum Hole, 3-3/8 in Overall Length, 12 Steps, 5/32 in Step Depth, 12 Hole, 2 Flutes, 3/16 in, 1/4 in, 5/16 in, 3/8 in, 7/16 in, 1/2 in, 9/16 in, 5/8 in, 11/16 in, 3/4 in, 13/16 in, 7/8 in, Spiral Flute, 1/4 in Shank, Hex Shank, 135 deg Point, Split Point, Titanium, TiN Coated, Applicable Materials: Ferrous and Non-Ferrous Material
Features
- Titanium 2-flute spiral design provides longer life and better chip removal
- Laser engraved numbers increases step visibility
- Optimized for impact driver usage
- Split point tip increases speed
- Works with rotary drills
Specifications
ApplicationGeneral Purpose Applications
Applicable MaterialsFerrous and Non-Ferrous Material
Drill Diameter Measurement SystemImperial
FinishTiN Coated
Flute TypeSpiral
Hole Sizes Cut3/16 in, 1/4 in, 5/16 in, 3/8 in, 7/16 in, 1/2 in, 9/16 in, 5/8 in, 11/16 in, 3/4 in, 13/16 in, 7/8 in
MaterialTitanium
Maximum Hole Diameter7/8 in
Minimum Hole Diameter3/16 in
Number of Flutes2
Number of Hole Sizes12
Number of Steps12
Overall Length3-3/8 in
Point Angle135 deg
Point TypeSplit
Shank Size1/4 in
Shank TypeHex
Step Depth5/32 in
TypeHigh Performance Impact-Rated
Additional Information
Country of OriginCN
