Dixon DIXV 1020404C

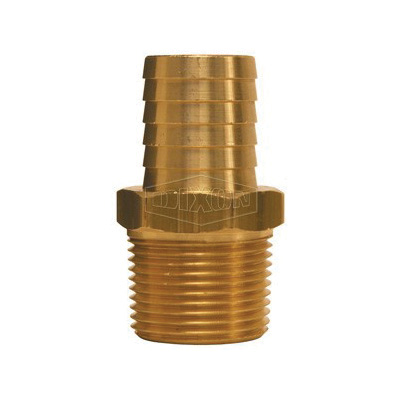

Dixon 1020404C 102 Standard Hose Barb, 1/4 in Nominal, MNPT x Hose Barb End Style, Brass, Domestic

Invoice description: Connector Hose 1/4x1/4 M Pt Amec #102-0404

UNSPSC: 40141734
Manufacturer PN: 1020404C
$2.14 EA
In stock (11)
QTY:


Dixon, 1020404C, Hose Barb, Standard, Series: 102, Fitting/Connector: Adapter, 1/4 in Nominal, MNPT x Hose Barb End Style, 9/16 in Hex, 1-49/64 in Length, 4 Barb, 0.97 in Barb Length, 150 psi Pressure, -40 to 160 deg F, Brass, Domestic

  • Features

  • All standard hose fittings are intended for use with hose clamps or crimped ferrules
  • 360 cda brass construction
  • Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
  • Do not use in connection with drinking water
  • Wash hands after handling
  • 0.97 in L barb
  • 4 barbs
  • Fixed fitting swivel torque
  • Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability
  • Barbed fitting for a tight seal on hoses

Specifications

ApplicationFor use with hose clamps or crimped ferrules
Barb Length0.97 in
Domestic/ImportDomestic
End StyleMNPT x Hose Barb
Fitting/Connector TypeAdapter
Hex Size9/16 in
Length1-49/64 in
MaterialBrass
Nominal Size1/4 in
Number of Barb4
Pressure Rating150 psi
Series102
Temperature Rating-40 to 160 deg F
TypeStandard

Additional Information

WarrantyLimited
Country of OriginUS
