Starrett LSS T468XSP-1

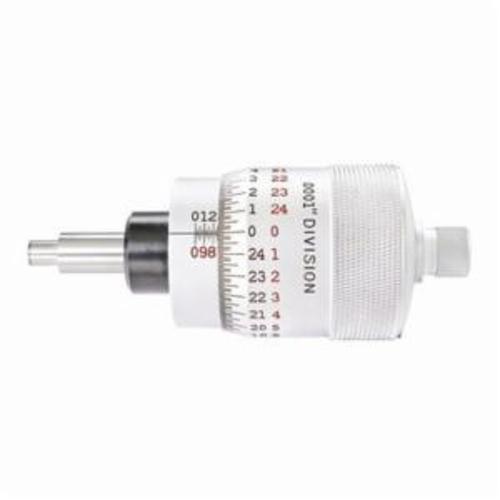

Starrett T468XSP-1 68 Series Direct Reading Large Micrometer Head, 0 to 1 in, Graduations: 0.0001 in, Carbide Tip, Satin Chrome
Invoice description:
Direct Reading Large Mic Ro Meter Heads No. 4
Factory Order
Starrett Micrometer Head, Direct Reading Large, Series: 68 Series, 0 to 1 in, +/-0.00005 in Accuracy, Graduations: 0.0001 in, 0.0001 in Resolution, Flat Spindle, 0.3 in Spindle Dia, Plain Thimble, Carbide Tip, Satin Chrome, 2-1/16 in Dia x 5-1/4 in L
Features
- All graduations are direct reading - no vernier lines to match
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Extremely hard and stable one-piece spindle (the heart of our accuracy and long life)
- Micro-lapped measuring face for flatness and squareness
- Quick and easy adjustment
- Double figures in red and black on the sleeve and thimble, permitting reading both ways with the spindle moving in either direction
- All graduations are direct reading no vernier lines to match
- Double figures in red and black on the sleeve and thimble, permitting reading both ways with the spindle moving in either direction
- Features a speeder
Specifications
Accuracy+/-0.00005 in
Dimensions2-1/16 in Dia x 5-1/4 in L
FinishSatin Chrome
Graduations0.0001 in
MaterialCarbide Tip
Measuring Range0 to 1 in
Resolution0.0001 in
Series68 Series
Spindle Diameter0.3 in
Spindle TypeFlat
Thimble TypePlain
TypeDirect Reading Large
Additional Information
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
Full Engineering Drawing
