Starrett LSS 263MXL

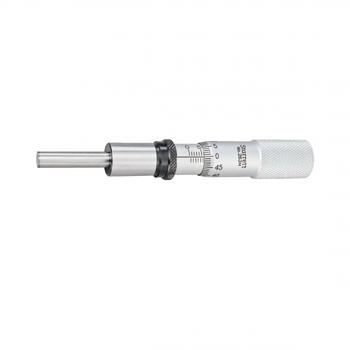

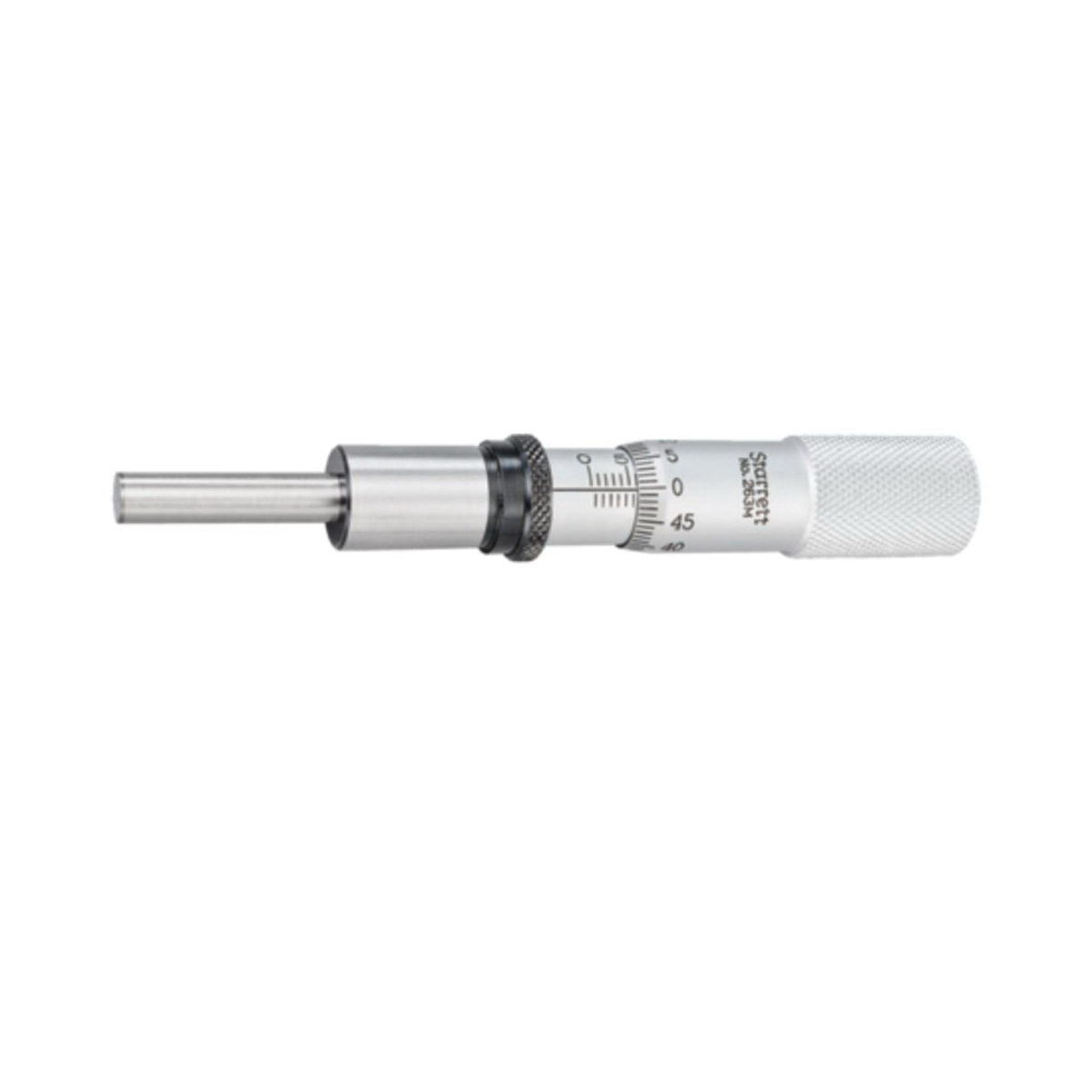

Starrett 263MXL Mechanical Micrometer Head, 0 to 25 mm, Graduations: 0.01 mm, Steel, Satin Chrome
Invoice description:
Micrometer Heads No. 263 2 63m Series 0-25mm
Factory Order
Starrett Micrometer Head, Mechanical, Series: 263, 0 to 25 mm, +/-0.002 mm Accuracy, Graduations: 0.01 mm, 0.01 mm Resolution, Flat Spindle, 1/2 in Spindle Dia, Plain Thimble, Steel, Satin Chrome, 4-1/2 in L x 19/32 in W
Features
- Extremely hard and stable one-piece spindle (the heart of our accuracy and long life)
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Quick reading figures
- Micro-lapped measuring face for flatness and squareness
- Quick and easy adjustment
- Ring type knurled lock nut
- Ring type knurled lock nut
Specifications
Accuracy+/-0.002 mm
Dimensions4-1/2 in L x 19/32 in W
FinishSatin Chrome
Graduations0.01 mm
MaterialSteel
Measuring Range0 to 25 mm
Resolution0.01 mm
Series263
Spindle Diameter1/2 in
Spindle TypeFlat
Thimble TypePlain
TypeMechanical
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginCN
