Starrett LSS T463XL

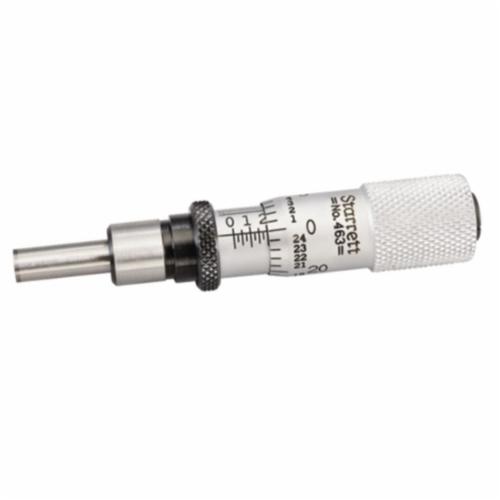

Starrett T463XL Mechanical Micrometer Head, 0 to 1/2 in, Graduations: 0.001 in, Carbide Tip, Satin Chrome
Invoice description:
Micrometer Heads No. 463 46 3m 464p Series 0-
Factory Order
Starrett Micrometer Head, Mechanical, Series: 463, 0 to 1/2 in, +/-0.0005 in Accuracy, Graduations: 0.001 in, 0.001 in Resolution, Flat Spindle, 3/8 in Spindle Dia, Plain Thimble, Carbide Tip, Satin Chrome, 2-13/16 in L x 17/32 in W
Features
- Satin chrome finish, no-glare, resists rust on all reading surfaces
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Quick reading figures
- Extremely hard and stable one-piece spindle
- Micro-lapped measuring face for flatness and squareness
- Quick and easy adjustment
- Ring type knurled lock nut
Specifications
Accuracy+/-0.0005 in
Dimensions2-13/16 in L x 17/32 in W
FinishSatin Chrome
Graduations0.001 in
MaterialCarbide Tip
Measuring Range0 to 1/2 in
Resolution0.001 in
Series463
Spindle Diameter3/8 in
Spindle TypeFlat
Thimble TypePlain
TypeMechanical
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginUS
