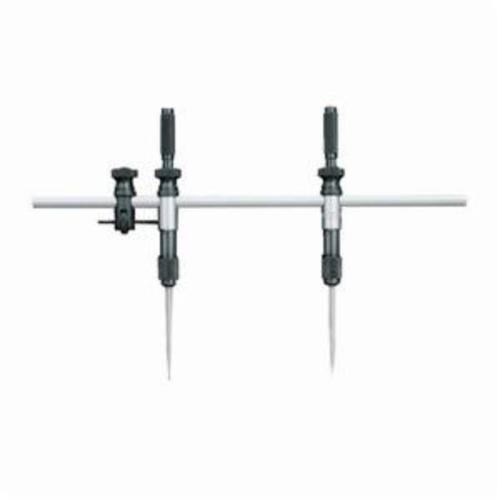

Starrett LSS C251A

Starrett Trammel, Series: C251, For Use With: 10-1/2 in Beam, Steel, Polished Chrome

• Features

• The top of the beam is flattened so that when the trams are clamped in position, they will not turn from pressure on the points
• One tram has a fine-adjusting screw for the points
• Each tram has a knurled swivel grip at the top that turns freely, making it very convenient to swing the tool when scribing circles
• Held in place by spring friction, which prevents them from sliding when the nuts are loosened for setting
• The 3 in points may be adjusted for length in the spring chucks and can be easily replaced with caliper legs or other attachments listed
• The ball points with 3 in holder permit working from holes upto 1-1/2 in Dia
• A pair of 3 in caliper points is included with each trammel
• 9 in maximum dividing range
• 18 in scribing Dia range

Specifications

Documents

• Full Engineering Drawing
