Starrett LSS 80-144J WFB

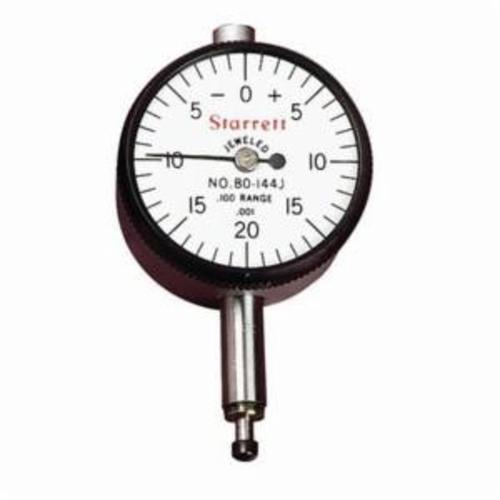

Starrett Dial Indicator, Series: 80 Series, 0.1 in, 0 to 20 to 0 Dial, Graduations: 0.001 in, 1-1/4 in Dial, White Dial, 1/8 in Tip, Hardened Stainless Steel, Black Bezel/Silver/Eggshell

• Features

• Rugged and simple unit construction with a universally fitting design
• The gear unit is constructed of a massive single bridge and plate assembly with a hardened stainless steel gear train
• All gear trains are fully jeweled for sensitivity, smoothness and life
• The case is light but sturdy, with a hardened, precision stainless steel rack that rides in bronze bushings, size Groups 0 and 1 indicators are of similar construction but smaller in size
• Hardened stainless steel bottom stems can be held in fixtures without cramping rack action
• Easy readability with the best, balanced style of graduation and number combination
• Balanced and tapered hands are easy-to follow
• Special non-shock mechanism is ideal for when an indicator may be subjected to repeated and excessive shocks
• Sharp bezel serrations for positive grip
• Unbreakable crystal, 0.2185 in Dia stem

Specifications

Documents

• Full Engineering Drawing
