Starrett® LSS 686M-3Z

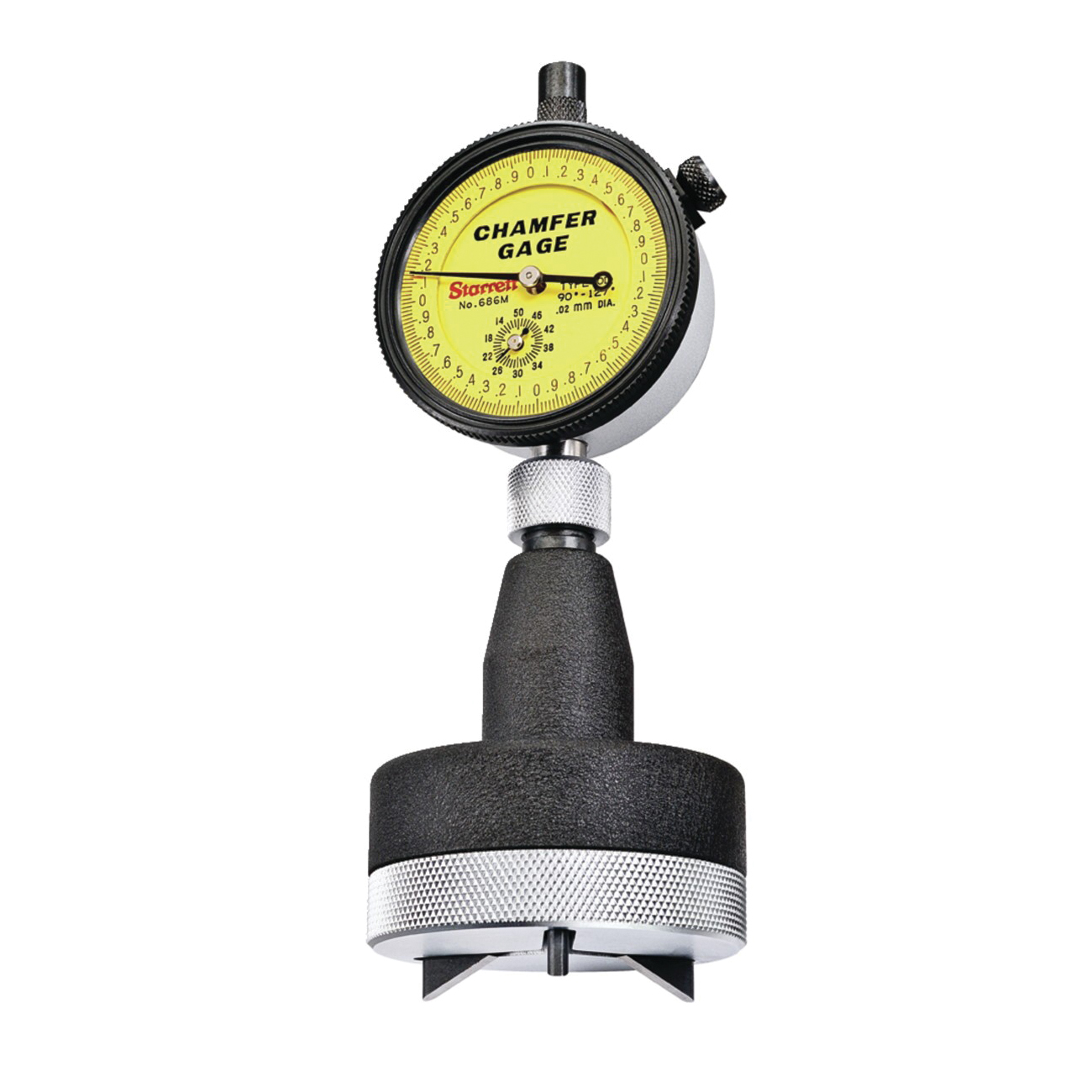

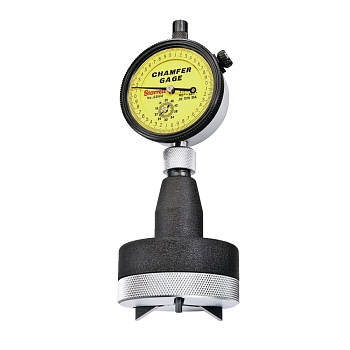

Starrett® 686M-3Z External Chamfer Gage, 25 to 50 mm Measuring, 3-Blade Plunger, Hardened Tool Steel
Starrett® Chamfer Gage, External, Series: 686, 25 to 50 mm Measuring, 3-Blade Plunger, Yellow Dial, Hardened Tool Steel
Features
- When the three blade plunger is pressed against a flat surface, the gage should read the set number stamped on the back of the indicator
- No setting master is necessary
- Gages will measure the smallest diameter of any chamfer within the range of angles printed on the dial face of the gage
- Gages are also available with electronic indicators on request

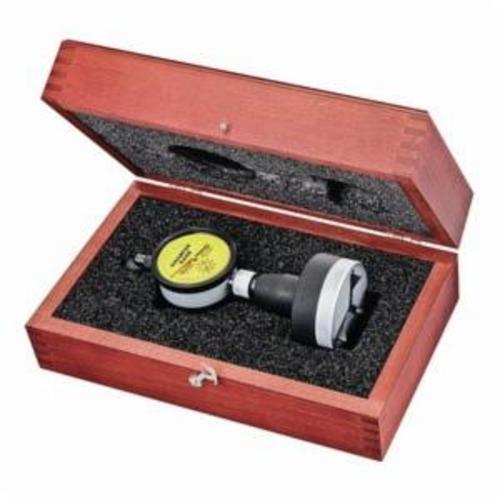

- Deluxe padded case
- All ground surfaces are of hardened tool steel
- Indicators are AGD design
- Gages directly measure the diameter of chamfered holes
- For 90 - 127 deg Dial reading
Specifications
TypeExternal
Series686
Measuring Range25 to 50 mm
Plunger Type3-Blade
Dial ColorYellow
MaterialHardened Tool Steel
