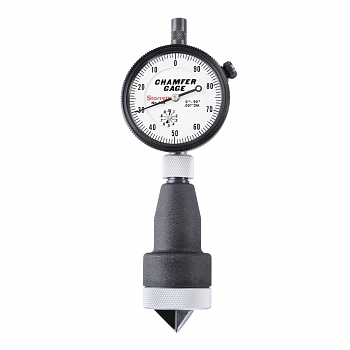

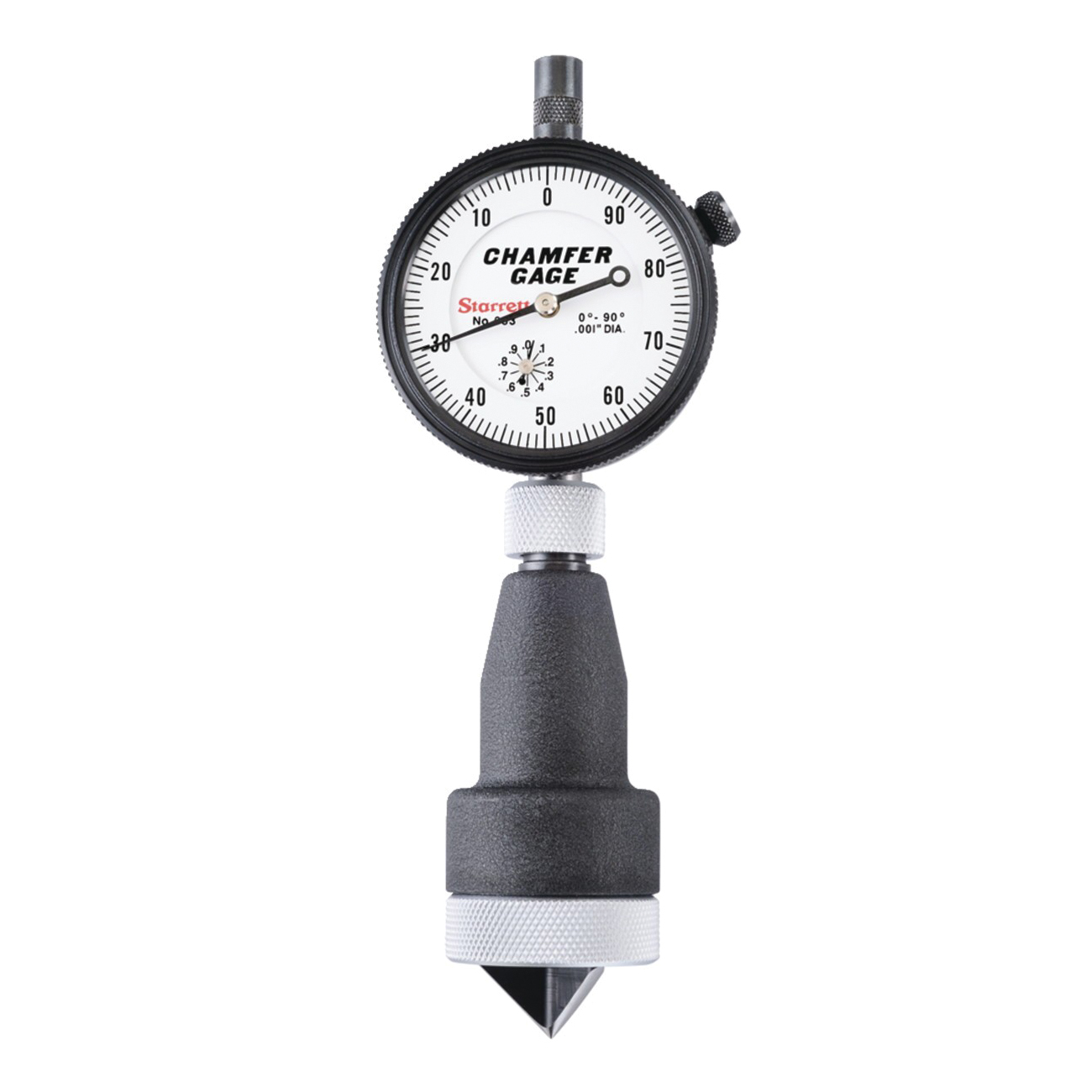

Starrett LSS 683-3Z
Starrett 683-3Z Internal Chamfer Gage, 0 to 1 in Measuring, Graduations 0.001 in, 3-Blade Plunger, 2-19/64 in Dia x 57/64 in H Dial, Hardened Tool Steel
Invoice description:
Internal Chamfer Gages 0 -9 0 No. 683 683m Se
Factory Order
Starrett Chamfer Gage, Internal, Series: 683, 0 to 1 in Measuring, Graduations: 0.001 in, 3-Blade Plunger, 2-19/64 in Dia x 57/64 in H Dial, White Dial, Hardened Tool Steel
Features
- When the three blade plunger is pressed against a flat surface, the gage should read the set number stamped on the back of the indicator
- No setting master is necessary
- Internal gages will measure the largest diameter of any chamfer that has an included angle within the range of angles printed on the dial face
- Gages are also available with electronic indicators on request

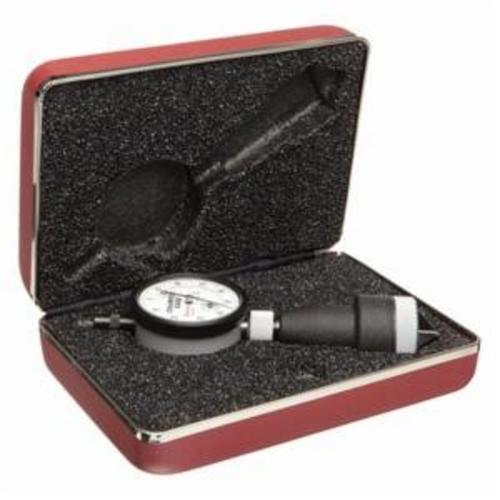

- Deluxe padded case
- All ground surfaces are of hardened tool steel
- Indicators are AGD design
- Gages directly measure the diameter of chamfered holes
- For 0 - 90 deg Dial reading
Specifications
Dial ColorWhite
Dial Size2-19/64 in Dia x 57/64 in H
Graduations0.001 in
MaterialHardened Tool Steel
Measuring Range0 to 1 in
Plunger Type3-Blade
Series683
TypeInternal
Additional Information
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
