Starrett® LSS 686M-2Z

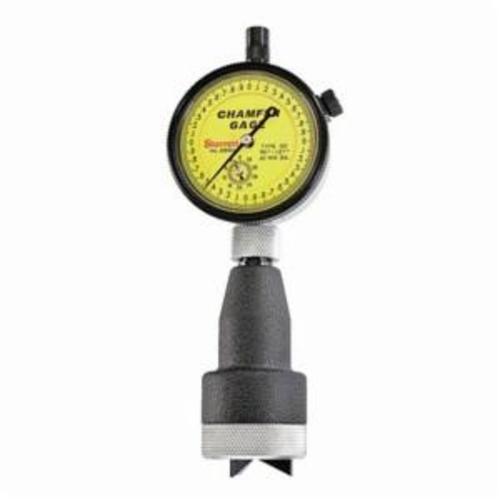

Starrett® Chamfer Gage, External, Series: 686, 4.7 to 25 mm Measuring, 3-Blade Plunger, Yellow Dial, Hardened Tool Steel

• Features

• When the three blade plunger is pressed against a flat surface, the gage should read the set number stamped on the back of the indicator
• No setting master is necessary
• Gages will measure the smallest diameter of any chamfer within the range of angles printed on the dial face of the gage
• Gages are also available with electronic indicators on request

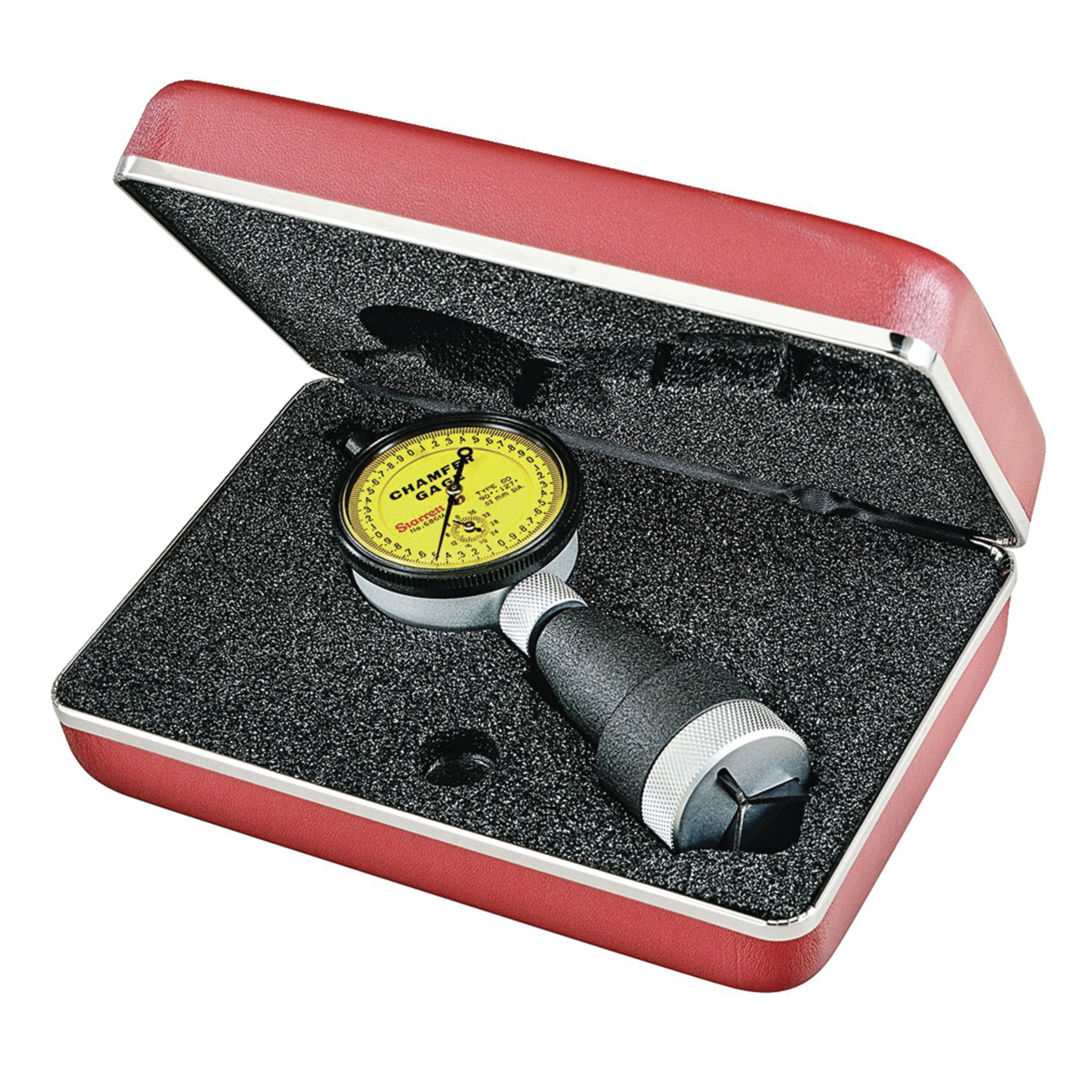

• Deluxe padded case
• All ground surfaces are of hardened tool steel
• Indicators are AGD design
• Gages directly measure the diameter of chamfered holes
• For 90 - 127 deg Dial reading

Specifications
