Starrett LSS 685M-2Z

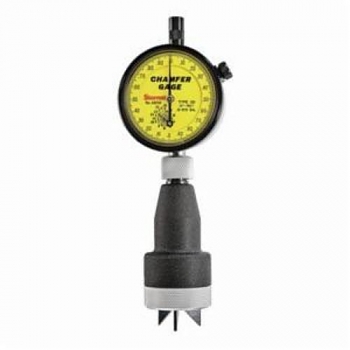

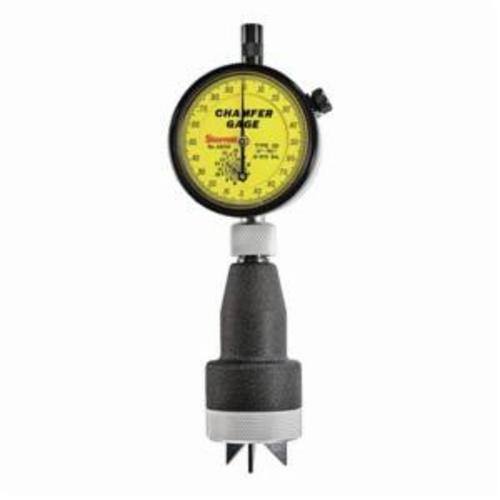

Starrett 685M-2Z External Chamfer Gage, 4.7 to 25 mm Measuring, 3-Blade Plunger, 2-19/64 in Dia x 57/64 in H Dial, Hardened Tool Steel

UPC: 049659649987
UNSPSC: 41111600
Manufacturer PN: 685M-2Z
$1,159.74 EA
Factory Order
QTY:


Starrett Chamfer Gage, External, Series: 685, 4.7 to 25 mm Measuring, 3-Blade Plunger, 2-19/64 in Dia x 57/64 in H Dial, Yellow Dial, Hardened Tool Steel

  • Features

  • When the three blade plunger is pressed against a flat surface, the gage should read the set number stamped on the back of the indicator
  • No setting master is necessary
  • Gages will measure the smallest diameter of any chamfer within the range of angles printed on the dial face of the gage
  • Gages are also available with electronic indicators on request

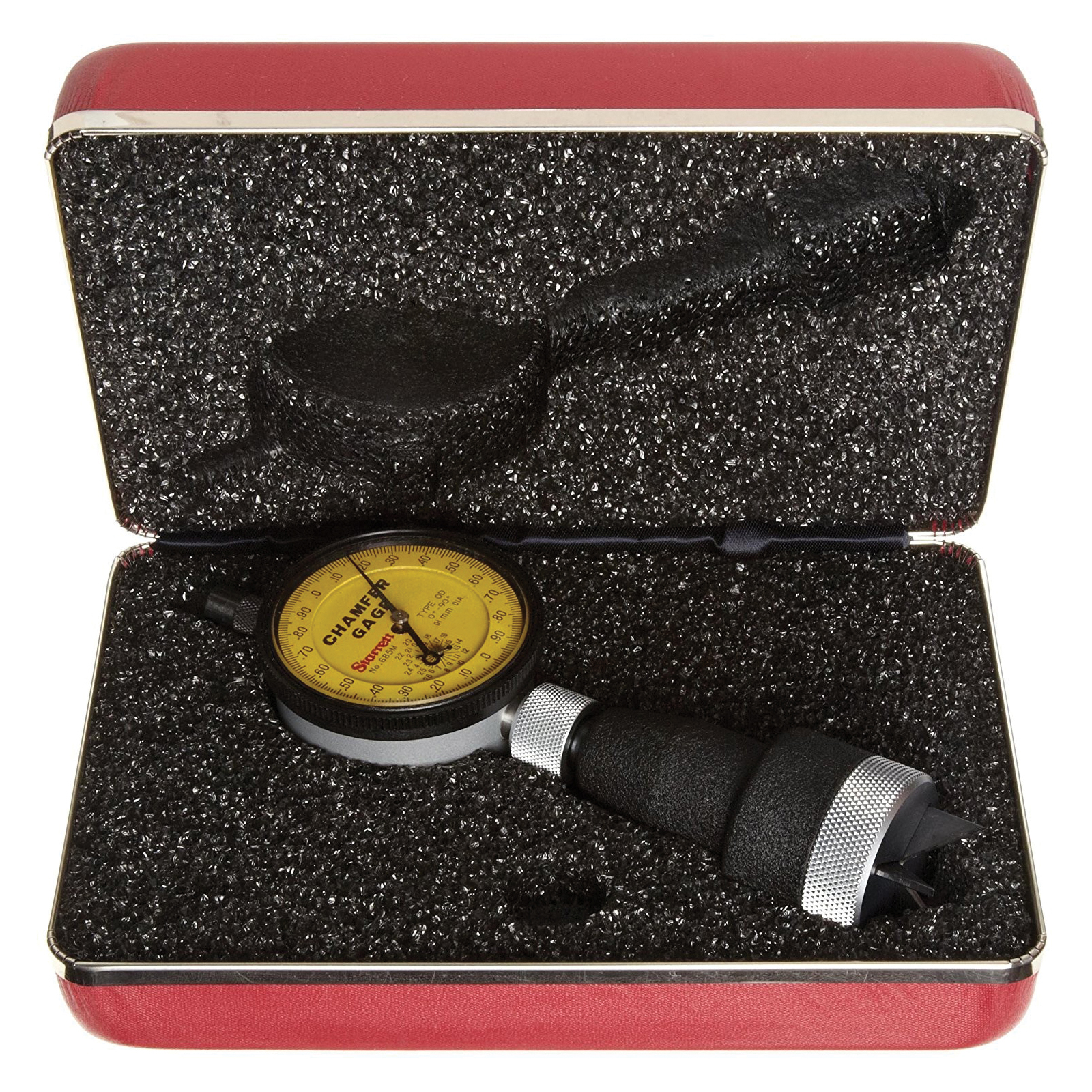

  • Deluxe padded case
  • All ground surfaces are of hardened tool steel
  • Indicators are AGD design
  • Gages directly measure the diameter of chamfered holes
  • For 0 - 90 deg Dial reading

Specifications

Dial ColorYellow
Dial Size2-19/64 in Dia x 57/64 in H
MaterialHardened Tool Steel
Measuring Range4.7 to 25 mm
Plunger Type3-Blade
Series685
TypeExternal
