Starrett LSS 684M-4Z

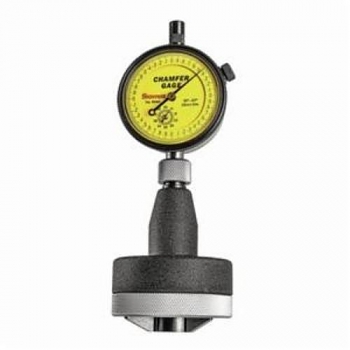

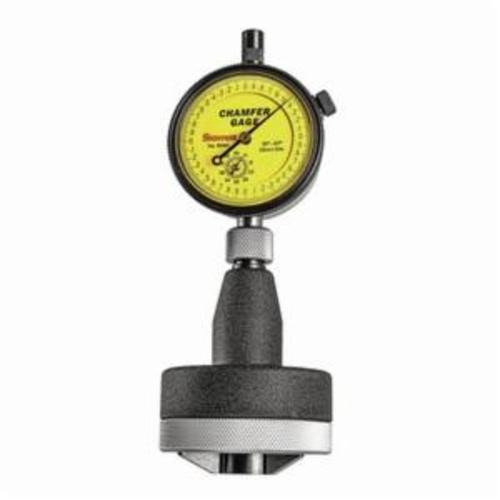

Starrett 684M-4Z Internal Chamfer Gage, 25 to 50 mm Measuring, Graduations 0.02 mm, 3-Blade Plunger, 2-9/32 in Dia Dial, Hardened Tool Steel
Invoice description:
Internal Chamfer Gages 9 0- 127 No. 684 684m
Factory Order
Starrett Chamfer Gage, Internal, Series: 684, 25 to 50 mm Measuring, Graduations: 0.02 mm, 3-Blade Plunger, 2-9/32 in Dia Dial, Yellow Dial, Hardened Tool Steel
Features
- When the three blade plunger is pressed against a flat surface, the gage should read the set number stamped on the back of the indicator
- No setting master is necessary
- Gages will measure the smallest diameter of any chamfer within the range of angles printed on the dial face of the gage
- Gages are also available with electronic indicators on request
- Deluxe padded case
- All ground surfaces are of hardened tool steel
- Indicators are AGD design
- Gages directly measure the diameter of chamfered holes
- For 90 - 127 deg Dial reading
Specifications
Dial ColorYellow
Dial Size2-9/32 in Dia
Graduations0.02 mm
MaterialHardened Tool Steel
Measuring Range25 to 50 mm
Plunger Type3-Blade
Series684
TypeInternal
Additional Information
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
Full Engineering Drawing
