Starrett LSS 684M-2Z

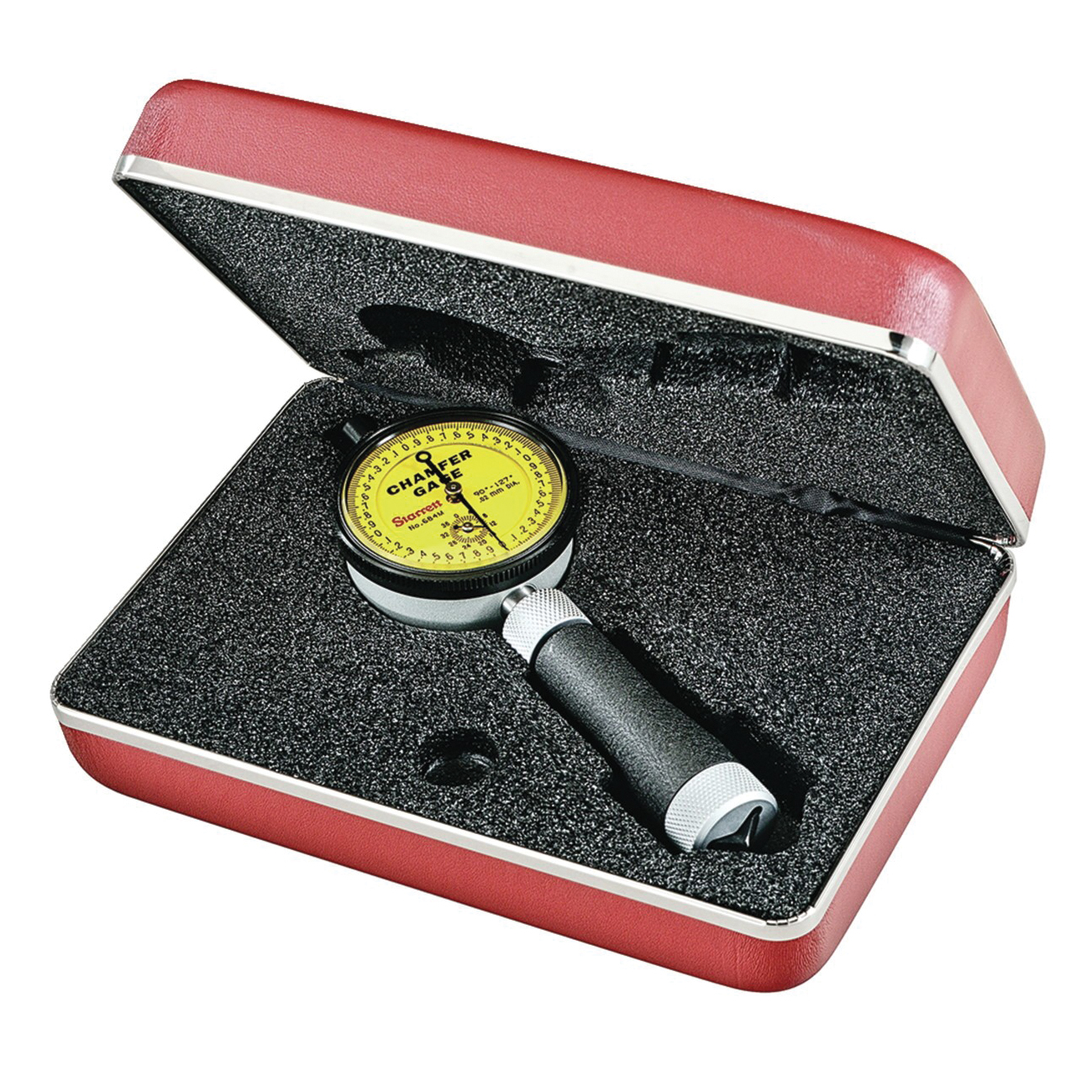

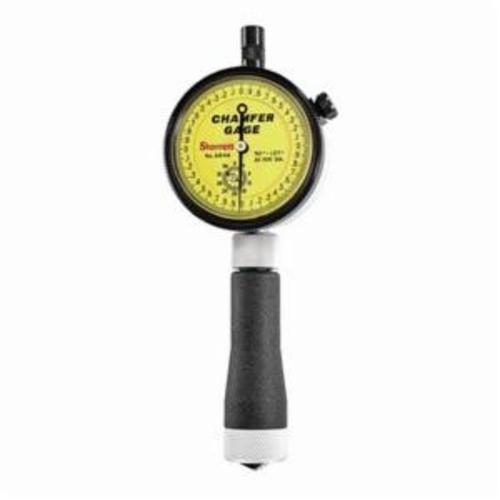

Starrett 684M-2Z Internal Chamfer Gage, 0 to 12.7 mm Measuring, Graduations 0.02 mm, 3-Blade Plunger, 2-19/64 in Dia Dial, Hardened Tool Steel

UPC: 049659649949
UNSPSC: 41111600
Manufacturer PN: 684M-2Z
$858.00 EA
Factory Order
QTY:


Starrett Chamfer Gage, Internal, Series: 684, 0 to 12.7 mm Measuring, Graduations: 0.02 mm, 3-Blade Plunger, 2-19/64 in Dia Dial, Yellow Dial, Hardened Tool Steel

  • Features

  • When the three blade plunger is pressed against a flat surface, the gage should read the set number stamped on the back of the indicator
  • No setting master is necessary
  • Gages will measure the smallest diameter of any chamfer within the range of angles printed on the dial face of the gage
  • Gages are also available with electronic indicators on request
  • Deluxe padded case
  • All ground surfaces are of hardened tool steel
  • Indicators are AGD design
  • Gages directly measure the diameter of chamfered holes
  • For 90 - 127 deg Dial reading

Specifications

Dial ColorYellow
Dial Size2-19/64 in Dia
Graduations0.02 mm
MaterialHardened Tool Steel
Measuring Range0 to 12.7 mm
Plunger Type3-Blade
Series684
TypeInternal
