Starrett LSS 684-3Z

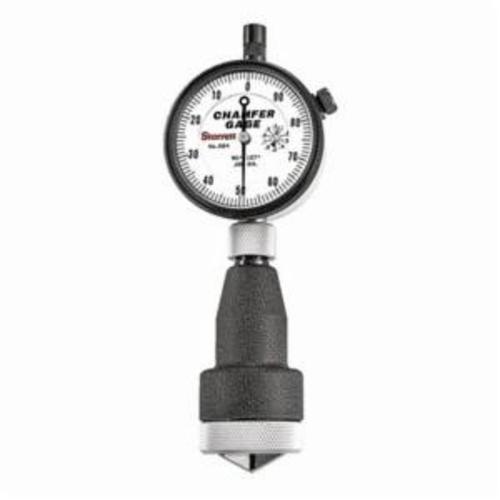

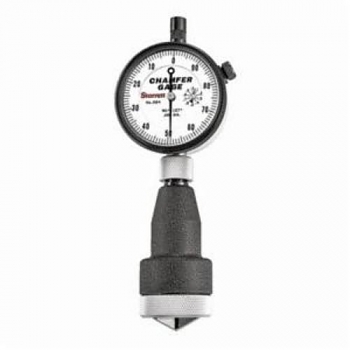

Starrett 684-3Z Internal Chamfer Gage, 0 to 1 in Measuring, Graduations 0.001 in, 3-Blade Plunger, Hardened Tool Steel
Invoice description:
Internal Chamfer Gages 9 0- 127 No. 684 684m
Starrett Chamfer Gage, Internal, Series: 684, 0 to 1 in Measuring, Graduations: 0.001 in, 3-Blade Plunger, White Dial, Hardened Tool Steel
Features
- When the three blade plunger is pressed against a flat surface, the gage should read the set number stamped on the back of the indicator
- No setting master is necessary
- Internal gages will measure the largest diameter of any chamfer that has an included angle within the range of angles printed on the dial face
- Gages are also available with electronic indicators on request

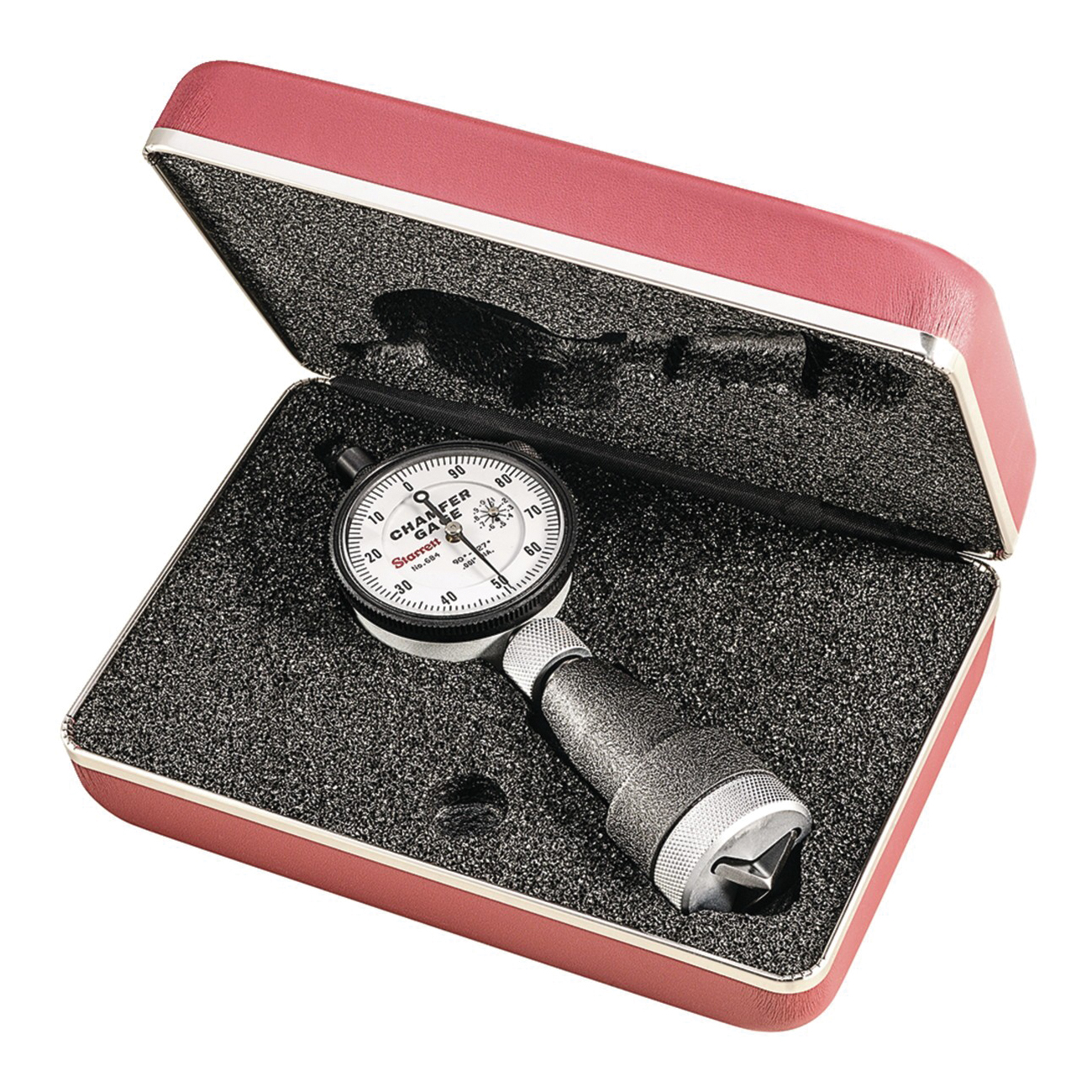

- Deluxe padded case
- All ground surfaces are of hardened tool steel
- Indicators are AGD design
- Gages directly measure the diameter of chamfered holes
- For 90 - 127 deg Dial reading
Specifications
Dial ColorWhite
Graduations0.001 in
MaterialHardened Tool Steel
Measuring Range0 to 1 in
Plunger Type3-Blade
Series684
TypeInternal
