Starrett LSS 585MCP

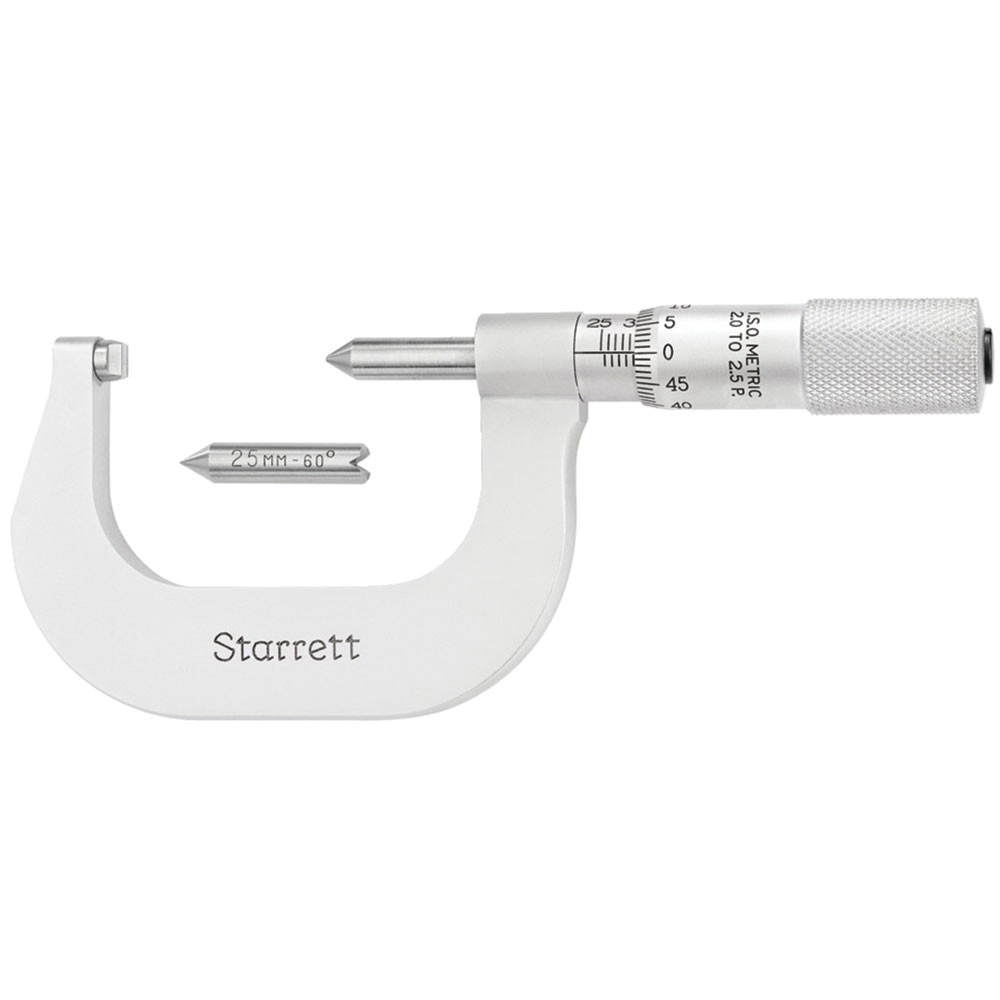

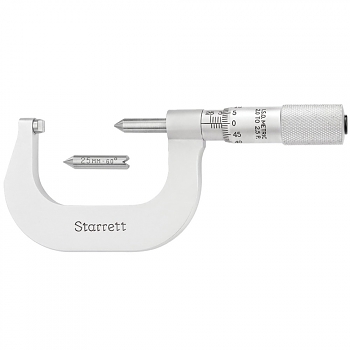

Starrett® 585MCP Mechanical Screw Thread Micrometer, 1.25 to 1.75 Threads/mm, Graduations: 0.01 mm, Steel, Satin Chrome
Factory Order
Starrett® Screw Thread Micrometer, Mechanical, Series: 585, 1.25 to 1.75 Threads/mm, +/-0.0002 in Accuracy, Graduations: 0.01 mm, 0.01 mm Resolution, Double V Anvil, Pointed Spindle, 1/4 in Spindle Dia, Plain Thimble, Steel, Satin Chrome, 5 19/64 in L x 39/64 in W x 2-1/4 in H
Features
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Balanced frame design for comfortable and accurate measuring
- Tapered frame for narrow slots and tight places
- Furnished with fixed, non-rotating anvil
- One-piece frame of drop forged steel
- Extremely hard and stable one-piece spindle
- Quick and easy adjustment
- Design allows 50% to 75% contact with the thread to be measured, insuring contact with the pitch diameter at all times
- 1 - 2 in capacity pitch diameter
- Comes with a 25 mm standard at no extra cost
Specifications
ApplicationFor measuring I.S.O. metric and MJ screw threads
TypeMechanical
Series585
Measuring Range1.25 to 1.75 Threads/mm
Accuracy+/-0.0002 in
Graduations0.01 mm
Resolution0.01 mm
Anvil TypeDouble V
Spindle TypePointed
Spindle Diameter1/4 in
Thimble TypePlain
