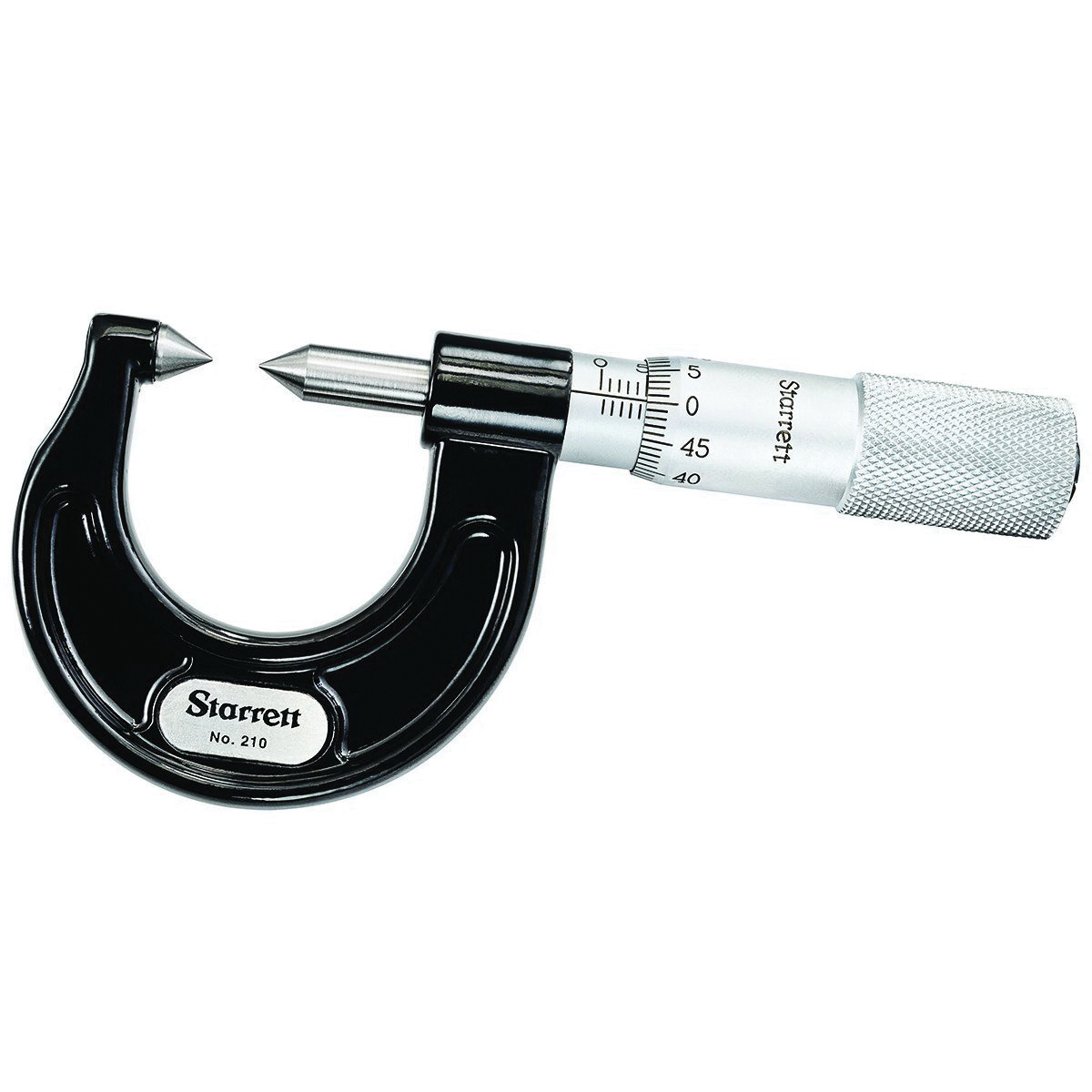

Starrett LSS 210MAP
Starrett 210MAP Mechanical Screw Thread Comparator Micrometer, 0 to 7/8 in, Graduations: 0.01 mm, Steel, Satin Chrome
Invoice description:
Screw Thread Comparator Mi Crometers No. 210
Factory Order
Starrett Screw Thread Comparator Micrometer, Mechanical, Series: 210, 0 to 7/8 in, Graduations: 0.01 mm, 0.01 mm Resolution, Pointed Anvil, Pointed Spindle, 1/4 in Spindle Dia, Plain Thimble, Steel, Satin Chrome, 4-33/64 in L x 39/64 in W x 2-11/64 in H
Features
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Quick and easy adjustment
- Tapered frame for narrow slots and tight places
- No-glare starrett satin chrome finish
- Rigid steel frame
- Extremely hard and stable one-piece spindle
- Compatible with starrett datasure wireless data collection system
Specifications
ApplicationFor quick comparisons of thread accuracy in screw cutting operations, measuring in small grooves
Anvil TypePointed
Dimensions4-33/64 in L x 39/64 in W x 2-11/64 in H
FinishSatin Chrome
Graduations0.01 mm
MaterialSteel
Measuring Range0 to 7/8 in
Resolution0.01 mm
Series210
Spindle Diameter1/4 in
Spindle TypePointed
Thimble TypePlain
TypeMechanical
Additional Information
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
