Starrett LSS 585EP

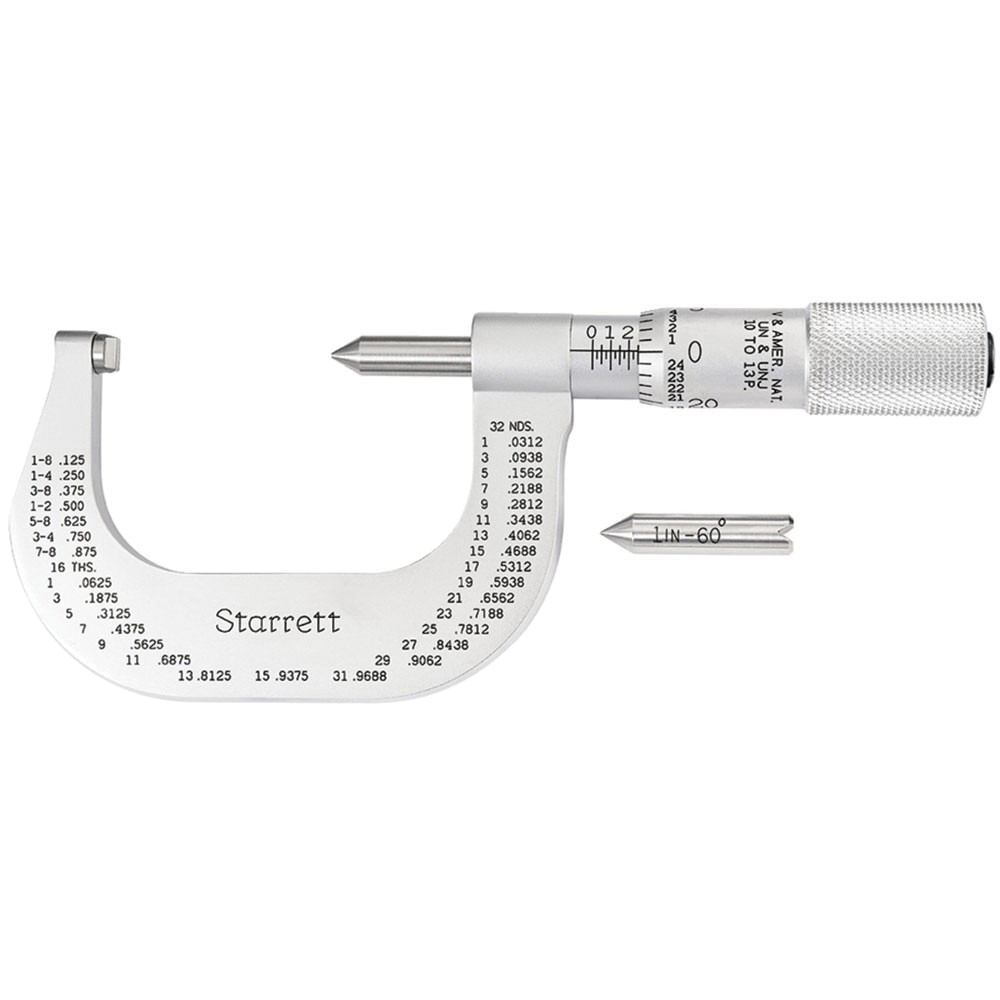

Starrett 585EP Mechanical Screw Thread Micrometer, 28 to 30 TPI, Graduations: 0.001 in, Steel, Satin Chrome
Invoice description:
Screw Thread Micrometers F Or Measuring Pitc
Factory Order
Starrett Screw Thread Micrometer, Mechanical, Series: 585, 28 to 30 TPI, +/-0.0002 in Accuracy, Graduations: 0.001 in, 0.001 in Resolution, Double V Anvil, Pointed Spindle, 1/4 in Spindle Dia, Plain Thimble, Steel, Satin Chrome, 5 9/32 in L x 39/64 in W x 2-1/4 in H
Features
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Balanced frame design for comfortable and accurate measuring
- Tapered frame for narrow slots and tight places
- Furnished with fixed, non-rotating anvil
- One-piece frame of drop forged steel
- Extremely hard and stable one-piece spindle
- Quick and easy adjustment
- Design allows 50 % to 75 % contact with the thread to be measured, insuring contact with the pitch diameter at all times
- 1 - 2 in capacity pitch diameter
- Comes with a 1 in standard at no extra cost
Specifications
ApplicationFor measuring american unified national series and unified J series screw threads
Accuracy+/-0.0002 in
Anvil TypeDouble V
Dimensions5 9/32 in L x 39/64 in W x 2-1/4 in H
FinishSatin Chrome
Graduations0.001 in
MaterialSteel
Measuring Range28 to 30 TPI
Resolution0.001 in
Series585
Spindle Diameter1/4 in
Spindle TypePointed
Thimble TypePlain
TypeMechanical
Additional Information
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
