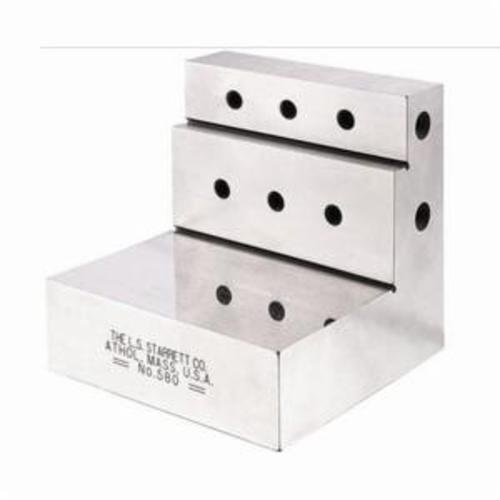

Starrett LSS 580
Starrett 580, 3 in H x 3 in W, Stepped Plate
Invoice description:
Precision Angle Plate No . 580 3x 3x 3 (75x75
Factory Order
Starrett Precision Angle Plate, 3 in Width, 3 in D, 3 in Height, Steel, Stepped Plate
Features
- Hardened and tempered steel
- Precision ground, square and parallel
- Convenient step for smaller work 3/4 in down from the top and a 1/4 in seat
- 10 holes tapped with a 1/4-20 thread for fastening to fixtures and clamping work to the angle plate
- V-Blocks come in a variety of styles to suit the numerous requirements of machinists
- All clamp screws have a hole to help secure the workpiece
- 4 in capacity
- Machined holes surface and open end design plate
- Gray color
- 3/4 in step depth from top
Specifications
ApplicationFor accurate work in toolroom and small production flatness, squareness and parallelism, general shop use and layout work, as well as for holding stock in place during light-duty milling, drilling and grinding operation
Depth3 in
Height3 in
MaterialSteel
Plate StyleStepped
Width3 in
Additional Information
Country of OriginUS
