Starrett LSS 579A-12

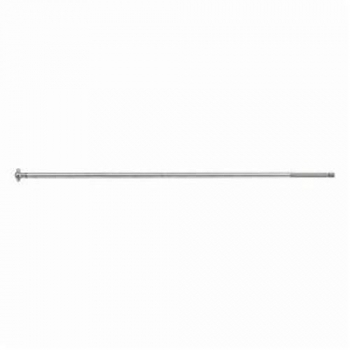

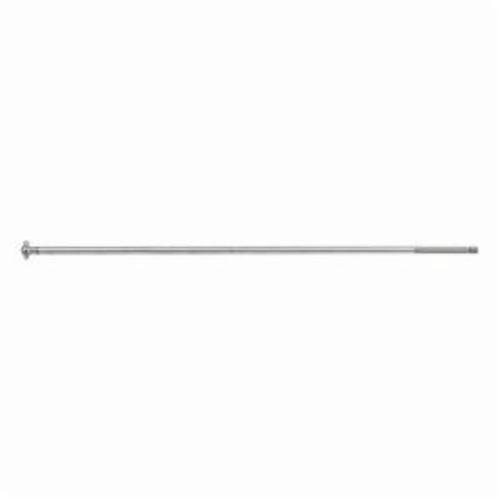

Starrett 579A-12 Self-Centering Telescoping Gage With Two Telescoping Arms, Satin Chrome, 5/16 to 1/2 in Measuring, Rigid Handle, Steel
Invoice description:
Telescoping Gages And Se Ts Self-centering Wi
Factory Order
Starrett Telescoping Gage, Self-Centering, Series: 579, 5/16 to 1/2 in Measuring, Rigid Handle, Steel, Satin Chrome, 12.796 in L x 0.281 in W x 0.507 in H Dimensions
Features
- Ends of both contacts are hardened and ground to a radius to allow proper clearance on the smallest hole the gage will enter
- Two telescoping contacts
- Precision ground radius on each gage provides two-point contact for maximum accuracy
- Greater range
- Constant spring tension gives uniform contact pressure
- Both plungers are easily locked at any desired setting
- Handles can be individually ordered, handles longer than 12 in (300 mm) are available on special order
- Handles are rigidly attached to the contact plungers and are automatically self-centering
Specifications
ApplicationFor determining the true size of holes, slots and recesses
Dimensions12.796 in L x 0.281 in W x 0.507 in H
FinishSatin Chrome
Handle TypeRigid
MaterialSteel
Measuring Range5/16 to 1/2 in
Series579
TypeSelf-Centering
Additional Information
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
Full Engineering Drawing
